The callout is for controlling these 2 "L" shaped pockets(?!). This is actually half the part as there is a mirror half on the right side (thus the 2x and 4x designations on the basic dimensions). I am a bit confused as the 2.6 basic dimension is restricting translation of the vertical planes while the callout has no datums in the callout. Is this correct?
How would you control this in a no CAD program? Thanks in advance for your advices

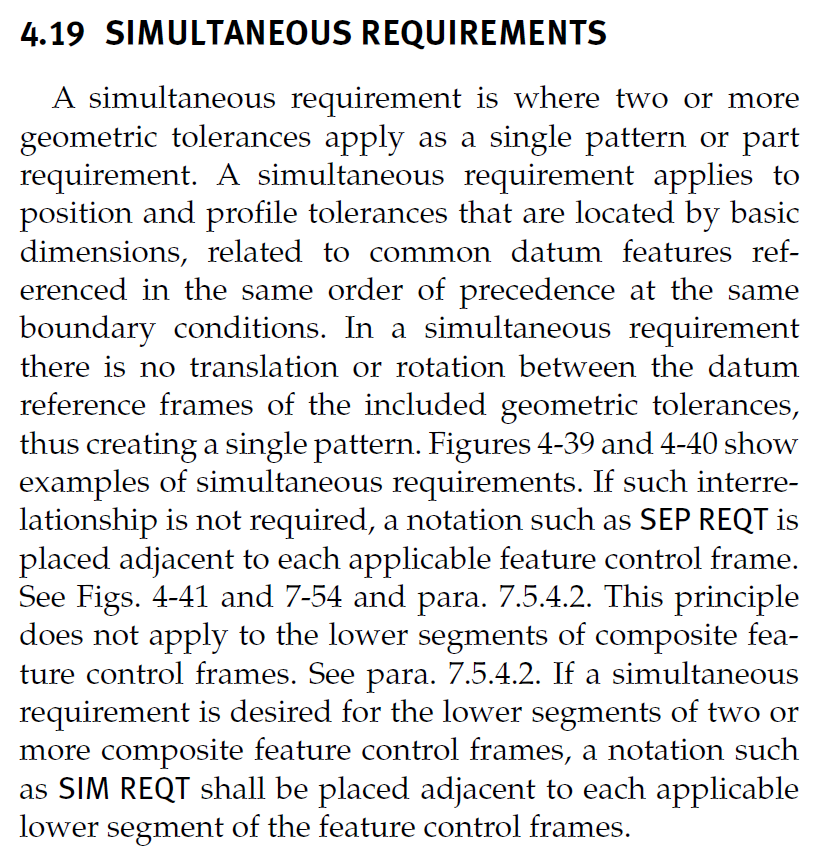

constadin you need to ask the designer / your customer. I'm basing my assumption for the simultaneous requirement on the ASME rules. Since you say there are no other callouts for these pockets on the drawing then, in my opinion, the drawing is incomplete and to guess at the design intent would run the risk of failing to inspect the part properly.
constadin you need to ask the designer / your customer. I'm basing my assumption for the simultaneous requirement on the ASME rules. Since you say there are no other callouts for these pockets on the drawing then, in my opinion, the drawing is incomplete and to guess at the design intent would run the risk of failing to inspect the part properly.
