Having an issue with custom disk probe

Hi, I am having an issue building a custom disk probe for pc-dmis CAD Version 2017 R2 Release - build #1424 (Service Pack 14).

Here is what I have:

ITEM:TIP4BY1MMDISK M2
comment N-5555-0298-03-A
begintip
ribcount 10
color 142 142 142
cylinder 0 0 0 0 0 -3 3
cone 0 0 -3 3 0 0 -13 2
cylinder 0 0 -13 0 0 -31 1
color 255 0 0
cylinder 0 0 -31 0 0 -32 4
hotspot 0 0 -31.5 0 0 1 4 1 disk
endtip​

Problem is when I go to calibrate the probe with the artifact it moves way below the artifact and doesn't touch.
Including the print for the probe.

Any help will be great.

Attached Files
  • Your custom stylus definition looks good to me. I'm guessing there is something wrong with the way you are calibrating it.

    With disc probes I tend to have pretty good luck telling the software that the sphere has not moved and let it find the sphere in DCC mode.

    What type of probe are you using?
  • I am using a 4mm x 1mm disk probe

    Your custom stylus definition looks good to me. I'm guessing there is something wrong with the way you are calibrating it.

    With disc probes I tend to have pretty good luck telling the software that the sphere has not moved and let it find the sphere in DCC mode.

    What type of probe are you using?


  • I am using a 4mm x 1mm disk probe





    I meant, what probe system are you using? Someone here may have some suggestions based on your probe system. Settings and such.
  • Hi, I am having an issue building a custom disk probe for pc-dmis CAD Version 2017 R2 Release - build #1424 (Service Pack 14).

    Here is what I have:

    ITEM:TIP4BY1MMDISK M2
    comment N-5555-0298-03-A
    begintip
    ribcount 10
    color 142 142 142
    cylinder 0 0 0 0 0 -3 3
    cone 0 0 -3 3 0 0 -13 2
    cylinder 0 0 -13 0 0 -31 1
    color 255 0 0
    cylinder 0 0 -31 0 0 -32 4
    hotspot 0 0 -31.5 0 0 1 4 1 disk
    endtip​

    Problem is when I go to calibrate the probe with the artifact it moves way below the artifact and doesn't touch.
    Including the print for the probe.

    Any help will be great.



    Likely some other aspect of the probe build is wrong (some machines have adapters between the Z-ram and the probe head.

    Alternatively the probe build for the probe used to define the reference sphere (aka Master probe) is wrong so in effect the reference sphere is location is wrong.

    Or perhaps the calibration settings are wrong (start and end angle)
  • When I used 2012, 2016 and 2019, I would qualify the probe manually (MAN, not MAN + DCC) and then run it in DCC (not DCC + DCC).

    I would bring the flat on the stylus RIGHT next to the qualification sphere and look at the Z.
    Adjust for half the disk thickness AND half the qualification sphere, that gives me the middle of the sphere for THIS probe in THIS qualification.

    take hits, watching the Z so I had three circles of four hits each.

    The top and bottom circle would be a Z that was just short of half the disk thickness.

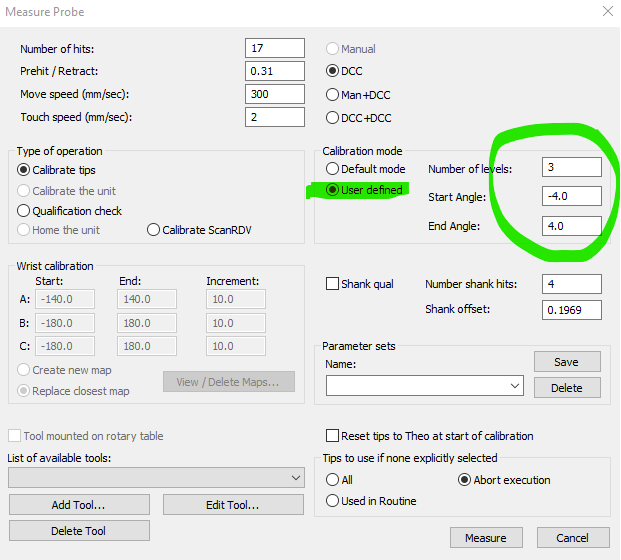

    I'm assuming you already set the calibration mode to user defined and set a plus minus in degrees as shown int the attached screen shot.

    It sucked, but it was the only way I got good qualifications from my disks.

    Now, in 2021.2, the disk qualification is AMAZING. If it was always there and I didn't have it on, I'll be angry, but I'm passed that version and not going back, so I did this manual stuff instead.

    IF the master probe build is correct, and your custom build is correct, you shouldn't have to do all that, but it's what I did. Take it for what its worth.

    good luck
