Hexagon model needed

Depending on the version of PC-DMIS you have, it will be in one of three places.

1. 2023.1 onwards: "C:\Users\Public\Documents\Hexagon\PC-DMIS\version\Training"
2. 2016 (I think) - 2022.2: "C:\Program Files\Hexagon\version\Training"
3. Earlier versions: "C:\Users\Public\Documents\Hexagon\PC-DMIS\version\CAD"

Adding on to Neil's comment, they are also available here

https://support.hexagonmi.com/s/article/Training-Block-CAD-files-and-prints

Not sure if you would know Neil, but did they ever make a specific CAD for this on the Visio? The model on the right is similar enough. Just curious.

I'm only aware of the HexagonDemoPart.igs (the one on the right).

Found it, thanks.  I was only able to find it in the files for the 2015 version.  Somewhere between now and then I think they discontinued that model.

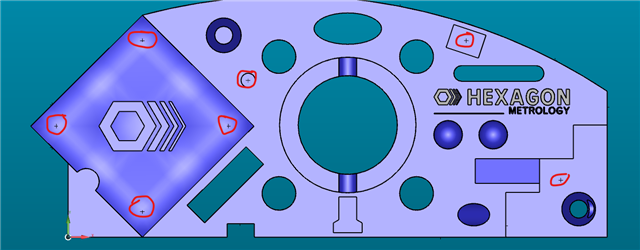

I found it in my 2021.2 Training Folder, named "HexblockNP" and "Hexblock", looks like one of them has these small crosshairs on the CAD. Some on the sides too.
