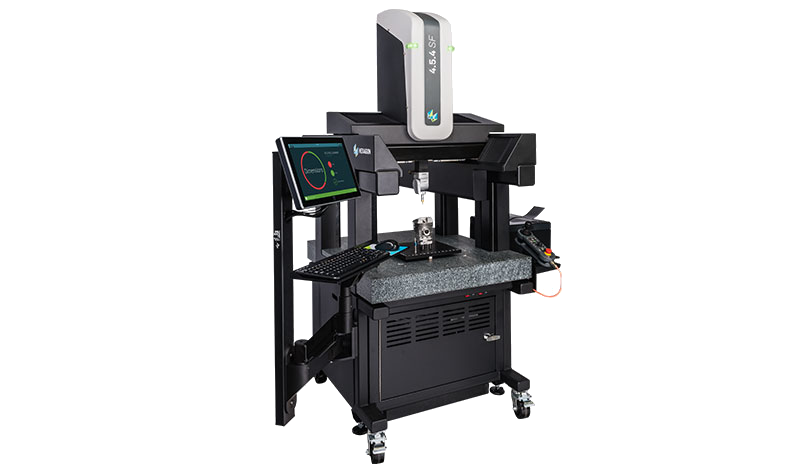

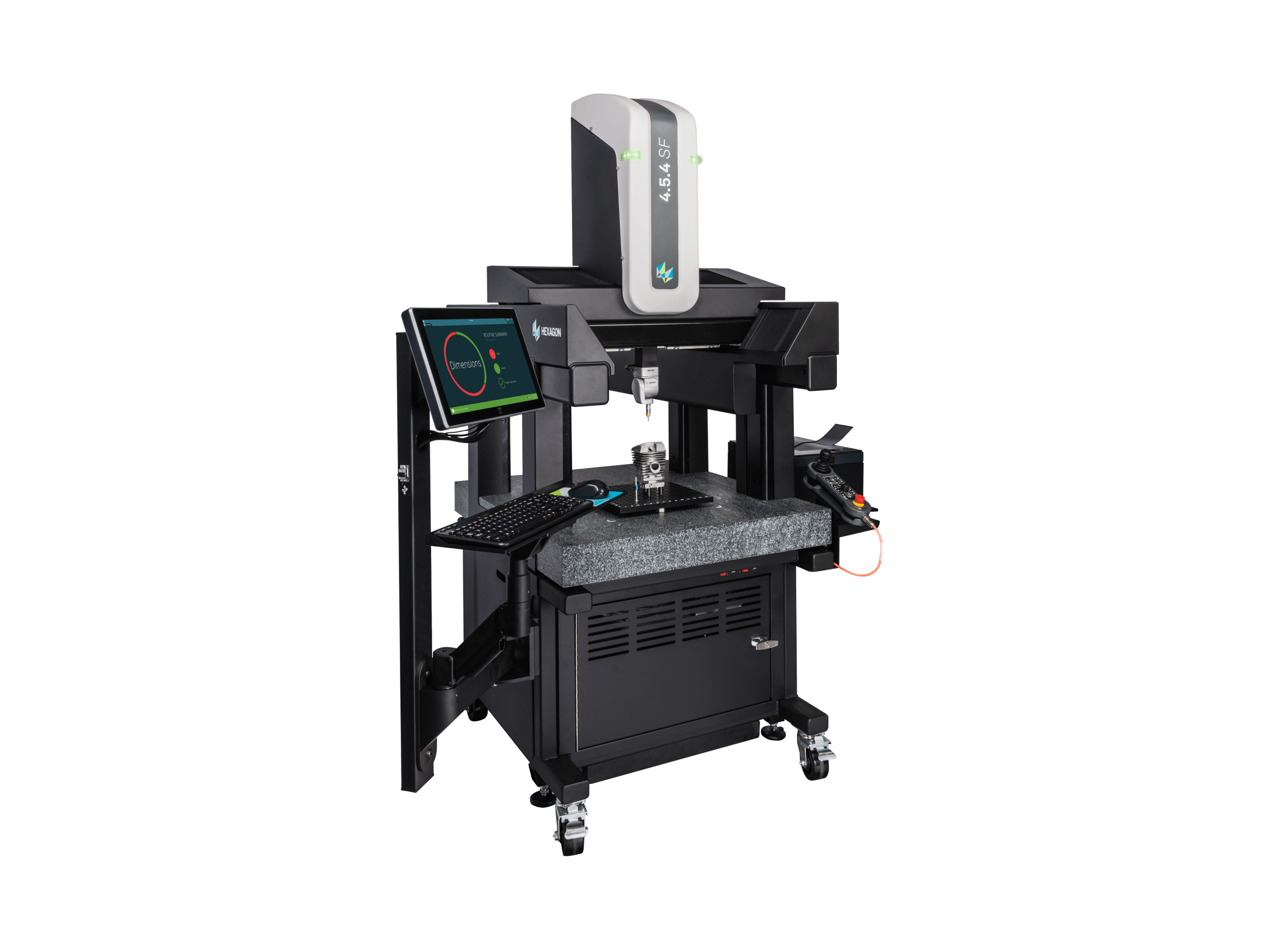

4.5.4 SF

Designed with flexibility in mind, the 4.5.4 SF can tackle tough shop-floor conditions.

Skip to

Support

Specifications

Quality Insight at the Point of Production

4.5.4 SF Specifications

Available Size (X, Y, Z)

04.05.04

Accuracy₁

3.1μm + 0.05 + (3.0 + 0.2 ) L / 1000 [20 °C]

Probe type compatibility

Touch trigger probe

Automation ready

YES

Temperature specification

15-40 °C

	Overall Dimensions (mm)
Model	LX	LY	LZ
4.5.4 SF	833 + 272 (incl. touch screen)	1325	2030

₁ According to ISO 10360-2 (2009)

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.
