7.10.7 SF
Ideal for machine shops and manufacturing cells, the 7.10.7 SF has been designed to excel in demanding conditions.
Quality Insight at the Point of Production

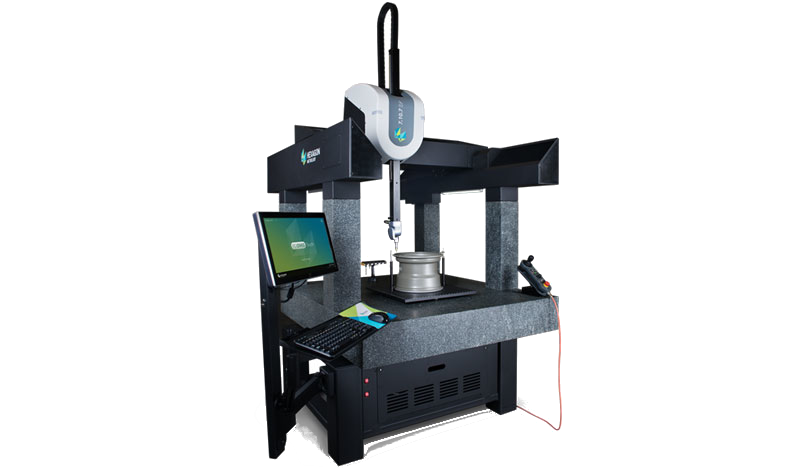

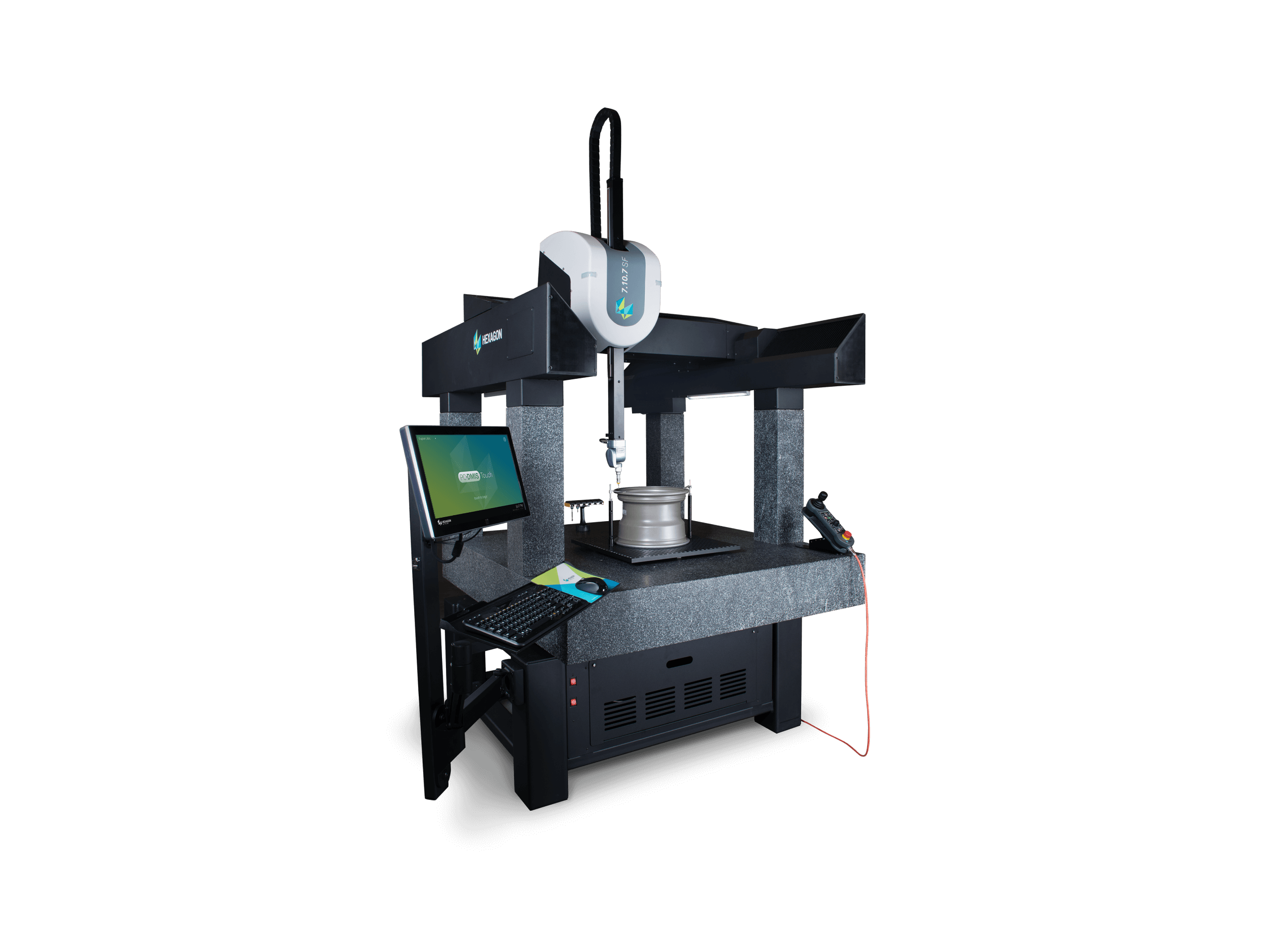

The 7.10.7 SF is a rugged and robust coordinate measuring machine designed to excel in demanding conditions. Inspired by over fifteen years of shop-floor machine production and hardened by proven technologies, it has been tested in the harshest manufacturing environments.
7.10.7 SF Specifications
Available Size (X, Y, Z)
07.10.07
Accuracy₁
3.1μm + 0.05 + (3.0 + 0.2 ) L / 1000 [20 °C]
Probe type compatibility
Touch trigger probe
Scanning probe
Automation ready
YES
Temperature specification
15-40 °C
Overall Dimensions (mm) | |||
|---|---|---|---|
Model | LX | LY | LZ |
7.10.7 SF | 1309 (excl. touch screen) | 1754 | 2790 |
₁ According to ISO 10360-2 (2009)
