Make probing measurement easy and benefit from a completely wireless solution delivering highly accurate results.

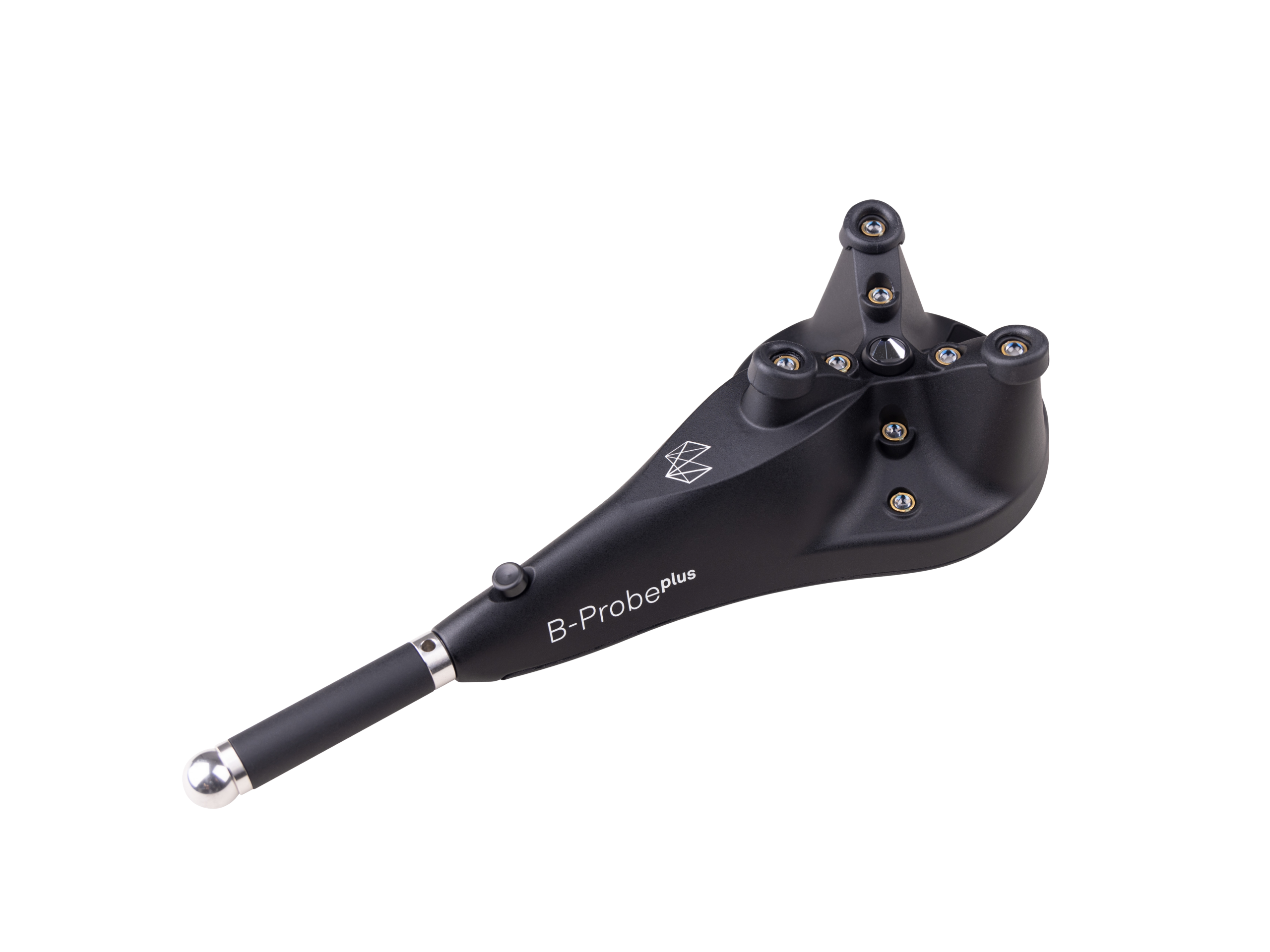

The B-Probe plus is a dedicated handheld probing tool designed for the Leica Absolute Tracker AT500. Able to gather hidden 3D points across a large measurement volume, the B-Probe plus is a completely wireless solution that makes probing measurement easy to perform and affordable.
Size and weight
230 x 80 x 54 mm | 0.14 kg
Accuracy₁
+/- 100 μm
Measurement range
1.6 to 12 m
Continuous mode
Build mode
Cable-free operation
YES
Acceptance angle
+/- 16°
Automatic stylus recognition
Fastening type
Multiple programmable buttons
Not supported
₁ Probing size, according to ISO 10360-10 - measured at 2 m.
