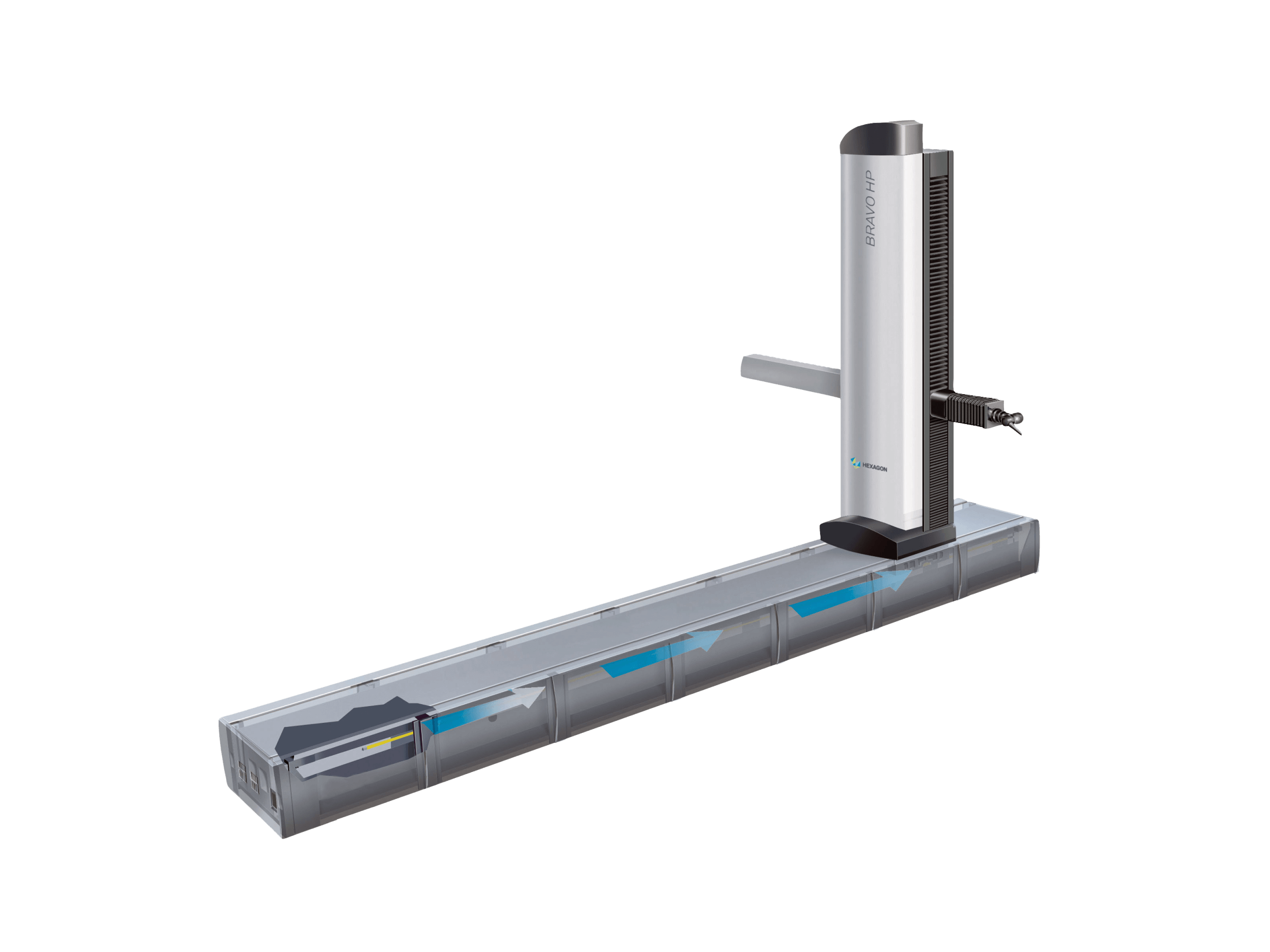

BRAVO HP

Sheet metal inspection at its best

The BRAVO HP has been designed to meet in an optimum way the requirements of dimensional inspection and analysis of bodyshells, chassis and subassemblies on the shop floor. It is characterized by high dynamics and accuracy. BRAVO HP belongs to the BRAVO line which also includes BRAVO HD and BRAVO HA. The stable, precise mechanical structure, the integrated temperature compensation system, a wide range of probes, probe heads, wrists and accessories as well as a state-of-the-art software package make it an effective CMM that is particularly well suited for operation in shop-floor environments, metrology labs and QC rooms.

Training and Resources

BRAVO HP Specifications

Available Size (X, Y, Z)₁	Accuracy₂	Probe type compatibility	Automation ready
XX.16.XX Available X strokes: 4000, 6000, 7000, 9000 mm Available Z strokes: 2100, 2500, 3000	From 15 + 10 L/1000, < 40 μm (Single Arm), 18 - 22 °C From 30 + 10 L/1000, < 50 μm (Double Arm), 18 - 22 °C	Touch trigger probe Laser scanner probe	YES
Temperature specification
18 - 22 °C 16 - 26 °C 16 - 32 °C

Available Size (X, Y, Z)₁

Accuracy₂

Probe type compatibility

Automation ready

XX.16.XX

Available X strokes: 4000, 6000, 7000, 9000 mm

Available Z strokes: 2100, 2500, 3000

From 15 + 10 L/1000, < 40 μm (Single Arm), 18 - 22 °C

From 30 + 10 L/1000, < 50 μm (Double Arm), 18 - 22 °C

Touch trigger probe

Laser scanner probe

YES

Temperature specification

18 - 22 °C

16 - 26 °C

16 - 32 °C

Available Size (X, Y, Z)₁
XX.16.XX Available X strokes: 4000, 6000, 7000, 9000 mm Available Z strokes: 2100, 2500, 3000
Accuracy₂
From 15 + 10 L/1000, < 40 μm (Single Arm), 18 - 22 °C From 30 + 10 L/1000, < 50 μm (Double Arm), 18 - 22 °C
Probe type compatibility
Touch trigger probe Laser scanner probe
Automation ready
YES
Temperature specification
18 - 22 °C 16 - 26 °C 16 - 32 °C
