CALIPRI C15
Designed for gap and flush inspection on the moving vehicle production line, the CALIPRI C15 offers accurate results with minimal training.
© 2025 Hexagon AB and/or its subsidiaries
Designed for gap and flush inspection on the moving vehicle production line, the CALIPRI C15 offers accurate results with minimal training.
© 2025 Hexagon AB and/or its subsidiaries

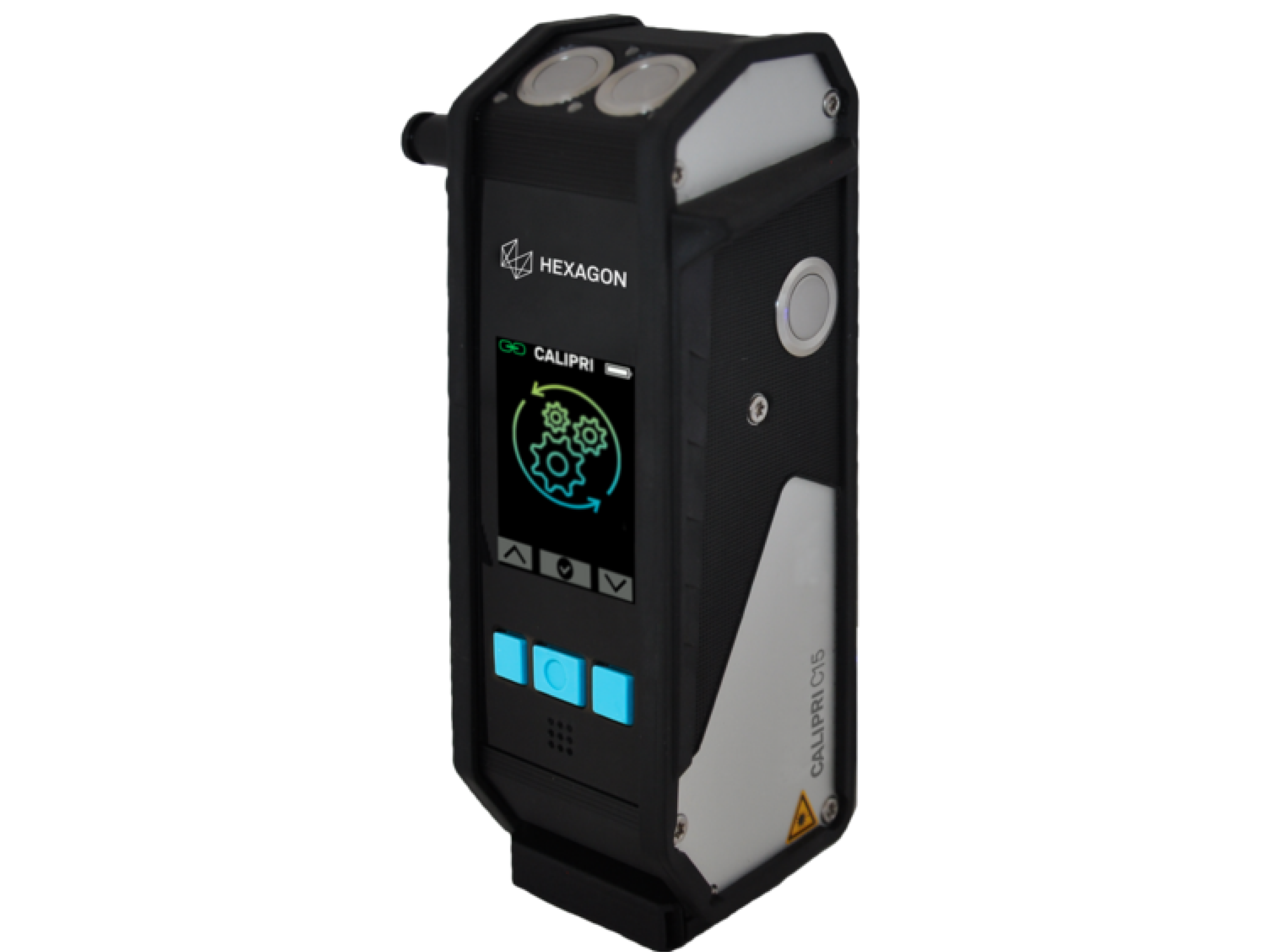

The CALIPRI C15 model brings extra flexibility to handheld inline measurement in production and assembly lines. The CALIPRI C15 wireless non-contact inline measurement device uses laser light section technology and supports continuous hand-guided gap and flush measurements on a production line.
The C15 exists in two versions, the C15 Fix for use at a single workstation, and the portable C15 Flex, which is designed for versatility and can be moved easily from one production line to another.
Measurement capability
Flush & gap - Manual measurement, in-line measurement
Technology
Non-contact laser light section with patented CALIPRI principle
Laser class
2M
Measurement time
1~4 sec/measuring point
Operation
Inline, manual, wireless, hot swap battery
Gap size range
50 x 50 mm
Accuracy & repeatability
Accuracy < +/- 30μm,
Repeatability < +/-15µm
Data export
csv, xml, pdf, customer specific
