DELTA OPERA

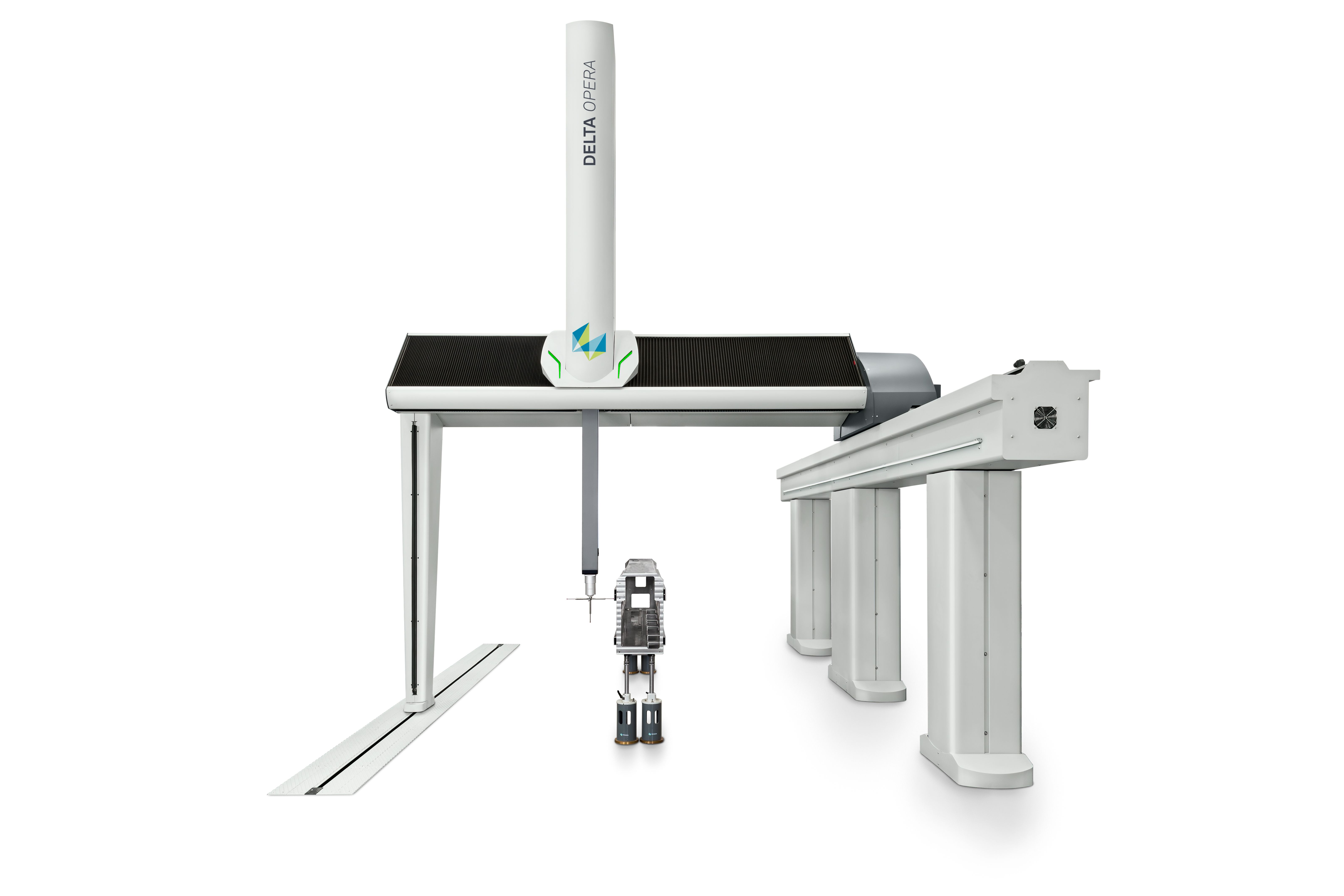

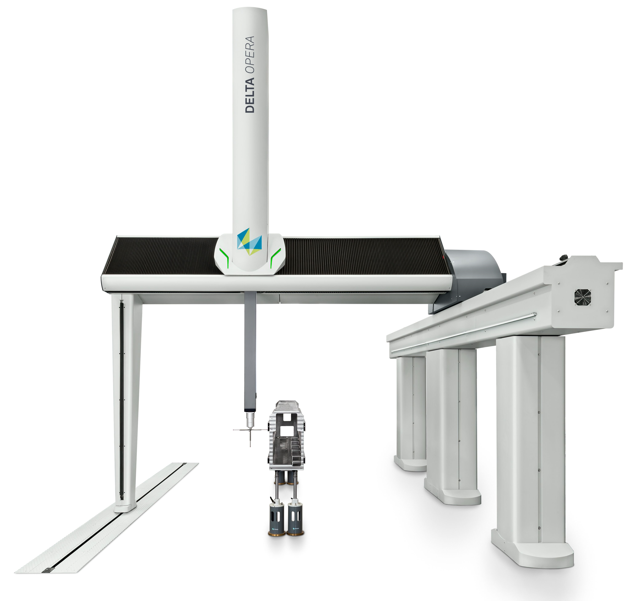

DELTA OPERA combines the advantages of both bridge and gantry-type CMMs to make loading large parts safe and efficient.

Skip to

DELTA OPERA makes loading very large parts simple, safe, and efficient

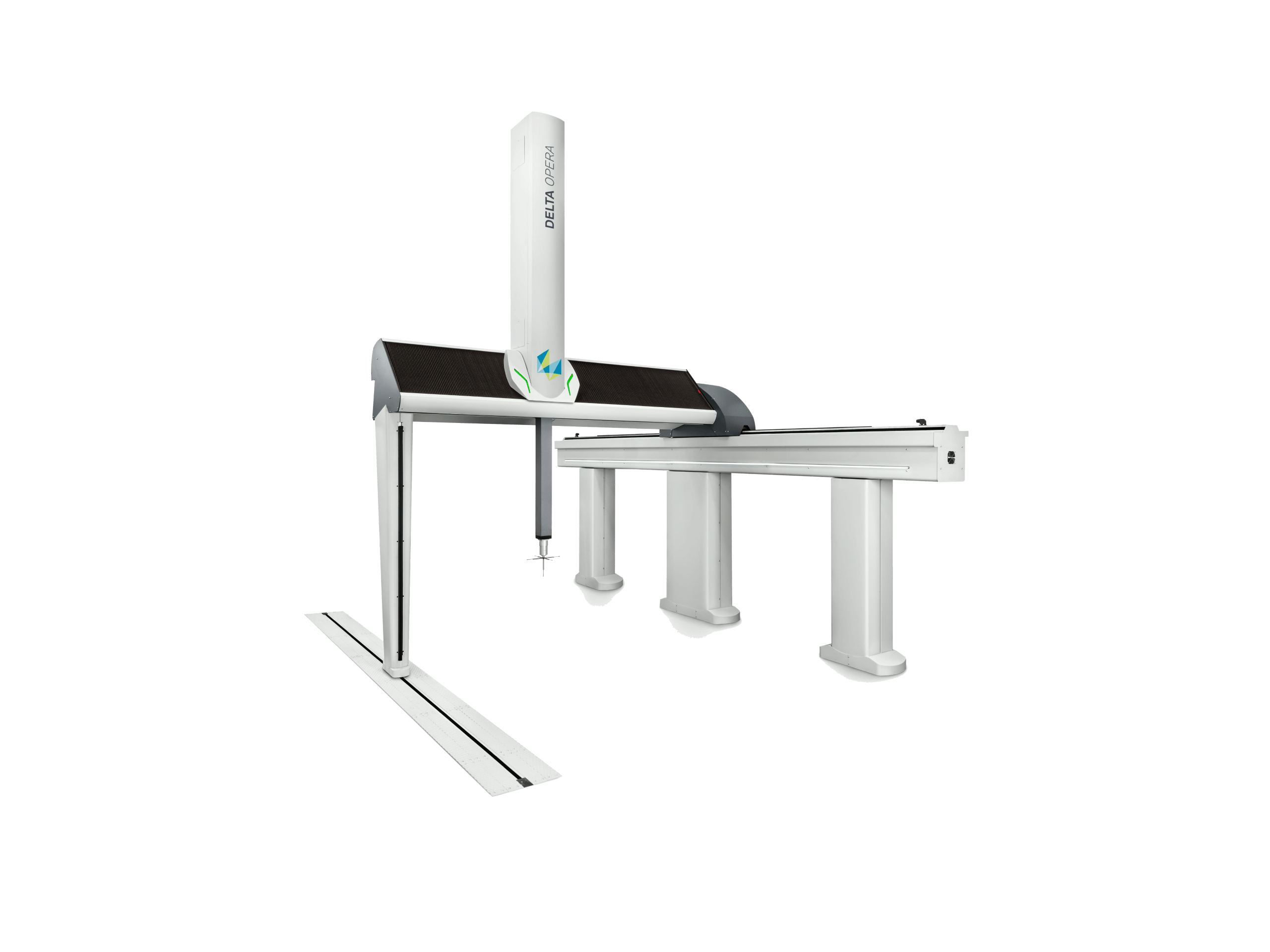

The evolution of DELTA OPERA stems back to the 1960s, with the pioneering DEA gantry machines that delivered fast and accurate inspection of large parts for decades. Drawing on this history of innovation, the DELTA OPERA’s unique half-bridge and half-gantry open structure offers with unprecedented levels of part loading efficiency, combined with high measurement precision and speed.

DELTA OPERA Specifications

Accuracy₁

From 3.2μm + 3.0 L/1000, MPE(E0/E150)₂) [19-21 °C]

From 3.2μm + 3.5 L/1000, MPE(E0/E150)₂) [18-22 °C]

From 3.6μm + 5.2 L/1000, MPE(E0/E150)₂) [16-26 °C]

Probe type compatibility

Touch trigger probe

Scanning probe

Laser scanner probe

Automation ready

YES

Temperature specification

19 - 21 °C

18 - 22 °C

16 - 26 °C

₁ According to ISO 10360-2 (2009)

₂ E0, MPE/E150, MPE specifications are to be formally understood as E0,MPE* /E150, MPE* for the case where non-normal CTE material calibrated test lengths are used.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HP-S-X5 Scanning Probes

HP-S-X5 scanning probes are 3D fixed scanning heads measuring in the X, Y and Z directions to define the workpiece surfaces' orientation.

DELTA OPERA makes loading very large parts simple, safe, and efficient

DELTA OPERA Specifications

Accuracy₁

From 3.2μm + 3.0 L/1000, MPE(E0/E150)₂) [19-21 °C]

From 3.2μm + 3.5 L/1000, MPE(E0/E150)₂) [18-22 °C]

From 3.6μm + 5.2 L/1000, MPE(E0/E150)₂) [16-26 °C]

Probe type compatibility

Touch trigger probe

Scanning probe

Laser scanner probe

Automation ready

YES

Temperature specification

19 - 21 °C

18 - 22 °C

16 - 26 °C

₁ According to ISO 10360-2 (2009)

₂ E0, MPE/E150, MPE specifications are to be formally understood as E0,MPE* /E150, MPE* for the case where non-normal CTE material calibrated test lengths are used.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HP-S-X5 Scanning Probes

HP-S-X5 scanning probes are 3D fixed scanning heads measuring in the X, Y and Z directions to define the workpiece surfaces' orientation.
