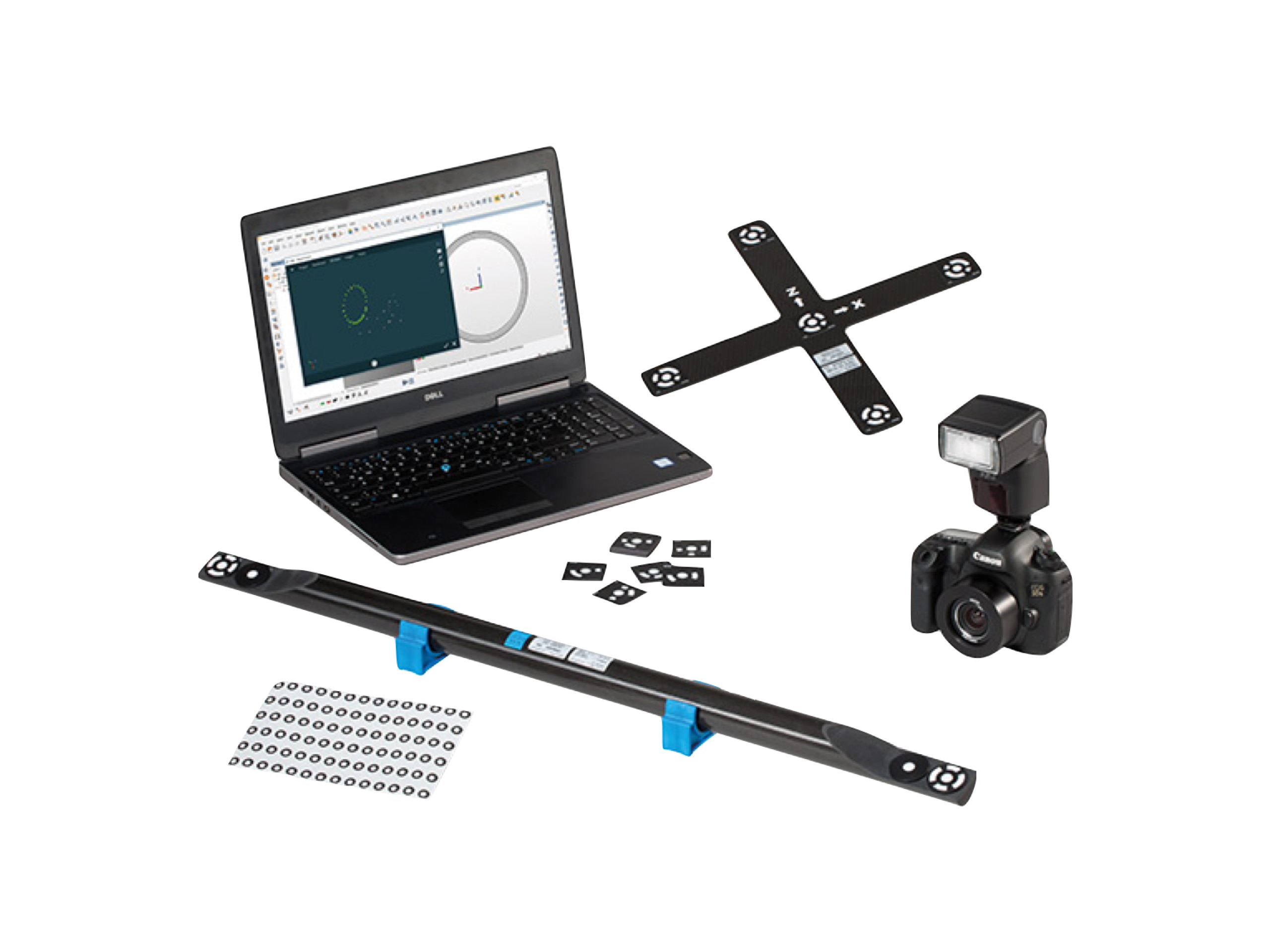

DPA Entry

Entry-level photogrammetry

Featuring a quality mid-range digital camera and a basic selection of measurement targets, DPA Entry is part of the DPA Series.

It is the perfect system for well-trained users familiar with the principles of photogrammetry and capable of taking full control of the measurement process, including all required camera settings. With its selection of targets and high-definition camera quality, DPA Entry delivers sufficient accuracy for the wide range of applications that present relatively simple parts for analysis.

Training and Resources

DPA Entry Specifications

Sensor unit	Camera resolution	Speed	View finder
Canon EOS 6D	20.2 MP \| 5472 x 3648	Up to 4 images / sec	Diopter
Sensor weight	Wireless data transfer	Accuracy (MPE₁)	Certification
1.4 kg	Not supported	25 μm + 25 μm * Length diagonal [m]	Opt. VDI 2634 page 1 certified system

Sensor unit
Canon EOS 6D
Camera resolution
20.2 MP \| 5472 x 3648
Speed
Up to 4 images / sec
View finder
Diopter
Sensor weight
1.4 kg
Wireless data transfer
Not supported
Accuracy (MPE₁)
25 μm + 25 μm * Length diagonal [m]
Certification
Opt. VDI 2634 page 1 certified system

₁ MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as maximum permissible deviation of a measured length, which is located between two measuring points, signalised with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

StereoScan neo

Conduct high-speed, comprehensive 3D scanning with a structured light-scanning system that delivers superior accuracy.

SmartScan

An optical 3D scanner for complex surface geometries and fragile or deformable parts.

PRIMEScan

An entry-level solution for highly precise 3D digitisation of industrial components.

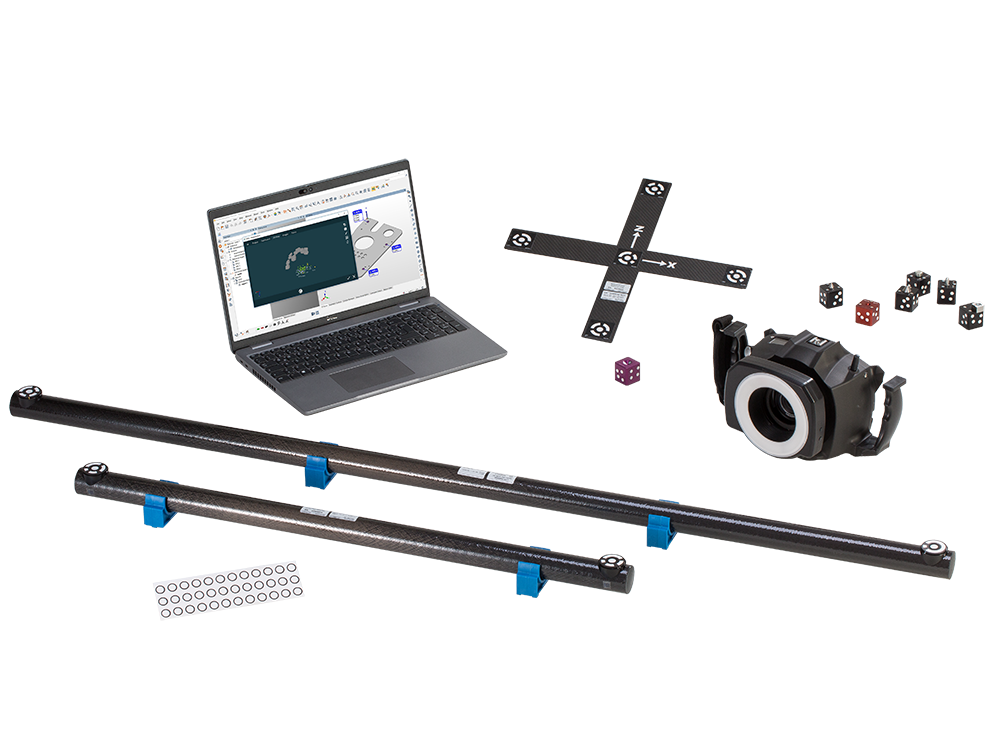

DPA Professional
