ETALON LASERTRACER-NG

Simplifying and automating the calibration, compensation and verification of medium and large machine tools and coordinate measuring machines

The ETALON LASERTRACER-NG simplifies the calibration and monitoring of coordinate measuring machines (CMMs) and machine tools to offer unrivalled accuracy and cost-effectiveness.

Training and Resources

ETALON LASERTRACER-NG Specifications

Measurement uncertainty	Measurement range	Typical machine size	Verification standard
0.2 μm + 0.3 μm/m	0.2 – 20 m (with reflector 120) 0.2 – 50 m (with reflector 160)	1 – 20 m	For machine tools: ISO 230-1, 230-2, 230-4, 230-6, 16907 \| VDI 3441 \| ASME B5.54 For CMMs: ISO 10360-2

Measurement uncertainty

Measurement range

Typical machine size

Verification standard

0.2 μm + 0.3 μm/m

0.2 – 20 m (with reflector 120)

0.2 – 50 m (with reflector 160)

1 – 20 m

For machine tools:

ISO 230-1, 230-2, 230-4, 230-6, 16907 | VDI 3441 | ASME B5.54

For CMMs:

ISO 10360-2

Measurement uncertainty
0.2 μm + 0.3 μm/m
Measurement range
0.2 – 20 m (with reflector 120) 0.2 – 50 m (with reflector 160)
Typical machine size
1 – 20 m
Verification standard
For machine tools: ISO 230-1, 230-2, 230-4, 230-6, 16907 \| VDI 3441 \| ASME B5.54 For CMMs: ISO 10360-2

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

ETALON TRAC-CAL | TRAC-CHECK (Software)

Innovative measuring software designed to ensure machine tools meet international standards for precision.

Leica Absolute Tracker AT960

High-performance 6DoF laser tracker technology in an ultra-portable and easy-to-use form factor.

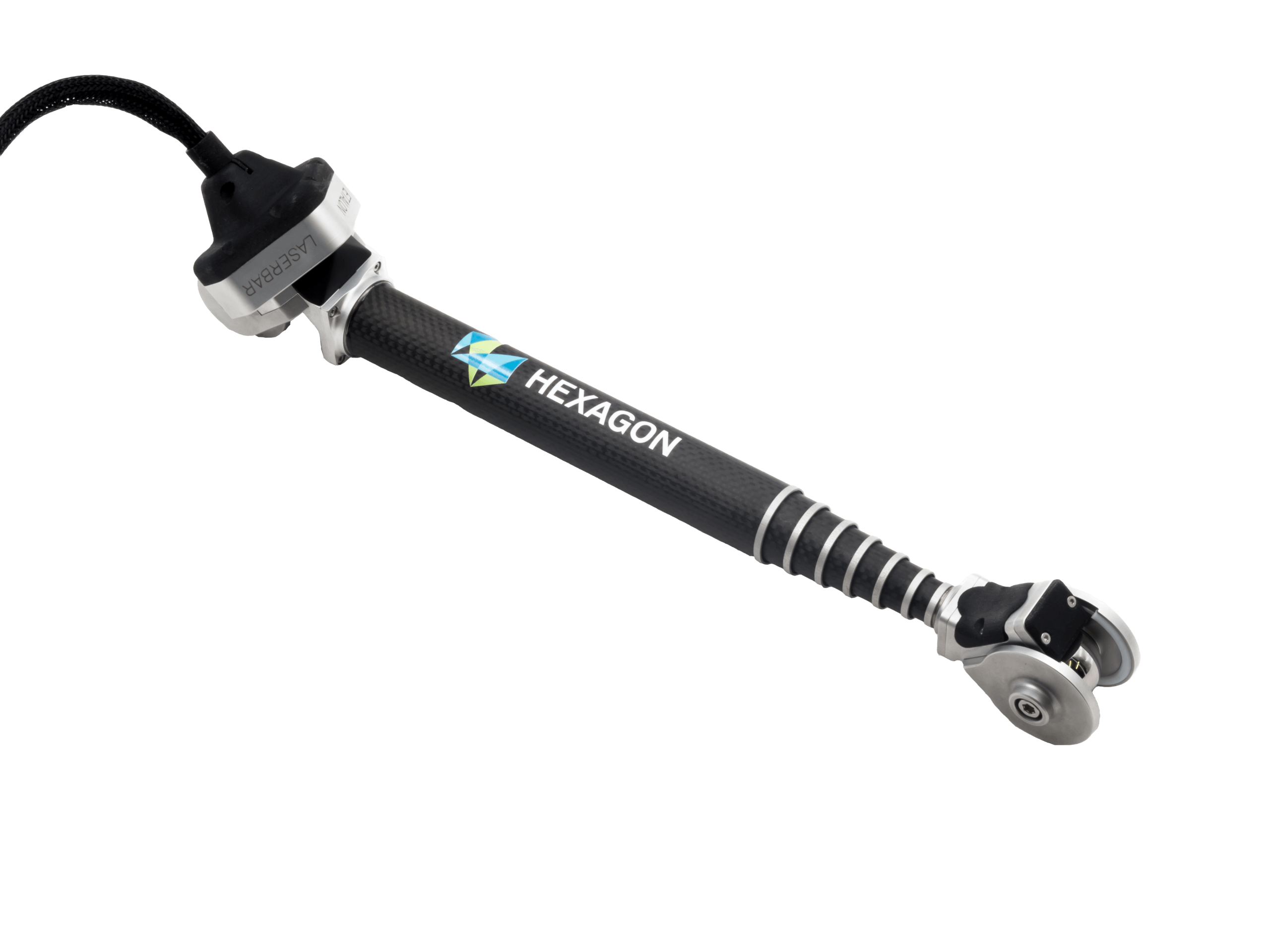

ETALON X-AX LASERBAR
