GLOBAL Lite

A cost-effective and adaptable entry-point into automated dimensional inspection.

Investment in metrology can be a necessity for small-to-medium-sized enterprises that need to meet increasing customer demand. GLOBAL Lite is the ideal foundation for building up automated metrology capabilities.

The CMM offers the best price/performance ratio to meet initial budget and throughput requirements. With its simple configuration and user interface, GLOBAL Lite’s ease-of-use is perfect for quality professionals with less experience of using automated CMMs.

Training and Resources

GLOBAL Lite Specifications

Available size (X, Y, Z)	Accuracy₁	Probe type compatibility	Automation ready
07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.12.10 / 12.30.10	From 1.9μm + L/300, MPE(E0/E150)₂) [18-22 °C] From 2.2μm + L/250, MPE(E0/E150)₂) [16-26 °C]	Touch-trigger probe	YES
Temperature specification
18-22 °C (lab temperature) 16-26 °C (extended temperature, option)

Available size (X, Y, Z)

Accuracy₁

Probe type compatibility

Automation ready

07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 /

09.20.08 / 12.15.10 / 12.12.10 / 12.30.10

From 1.9μm + L/300, MPE(E0/E150)₂) [18-22 °C]

From 2.2μm + L/250, MPE(E0/E150)₂) [16-26 °C]

Touch-trigger probe

YES

Temperature specification

18-22 °C (lab temperature)

16-26 °C (extended temperature, option)

Available size (X, Y, Z)
07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.12.10 / 12.30.10
Accuracy₁
From 1.9μm + L/300, MPE(E0/E150)₂) [18-22 °C] From 2.2μm + L/250, MPE(E0/E150)₂) [16-26 °C]
Probe type compatibility
Touch-trigger probe
Automation ready
YES
Temperature specification
18-22 °C (lab temperature) 16-26 °C (extended temperature, option)

₁ According to ISO 10360-2 (2009)
₂ MPE(E0/E150) specifications are to be formally understood as MPE(E0E150)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

HP-S-X1 Scanning Probes

Conduct quick, flexible and accurate measurements across many applications with sensitive sensors and automated probe changes.

HH-A / HH-AS Automatic 7.5° Probe Heads

The universal system component for use with any multi-coordinate measuring machine, whatever the model or manufacturer.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

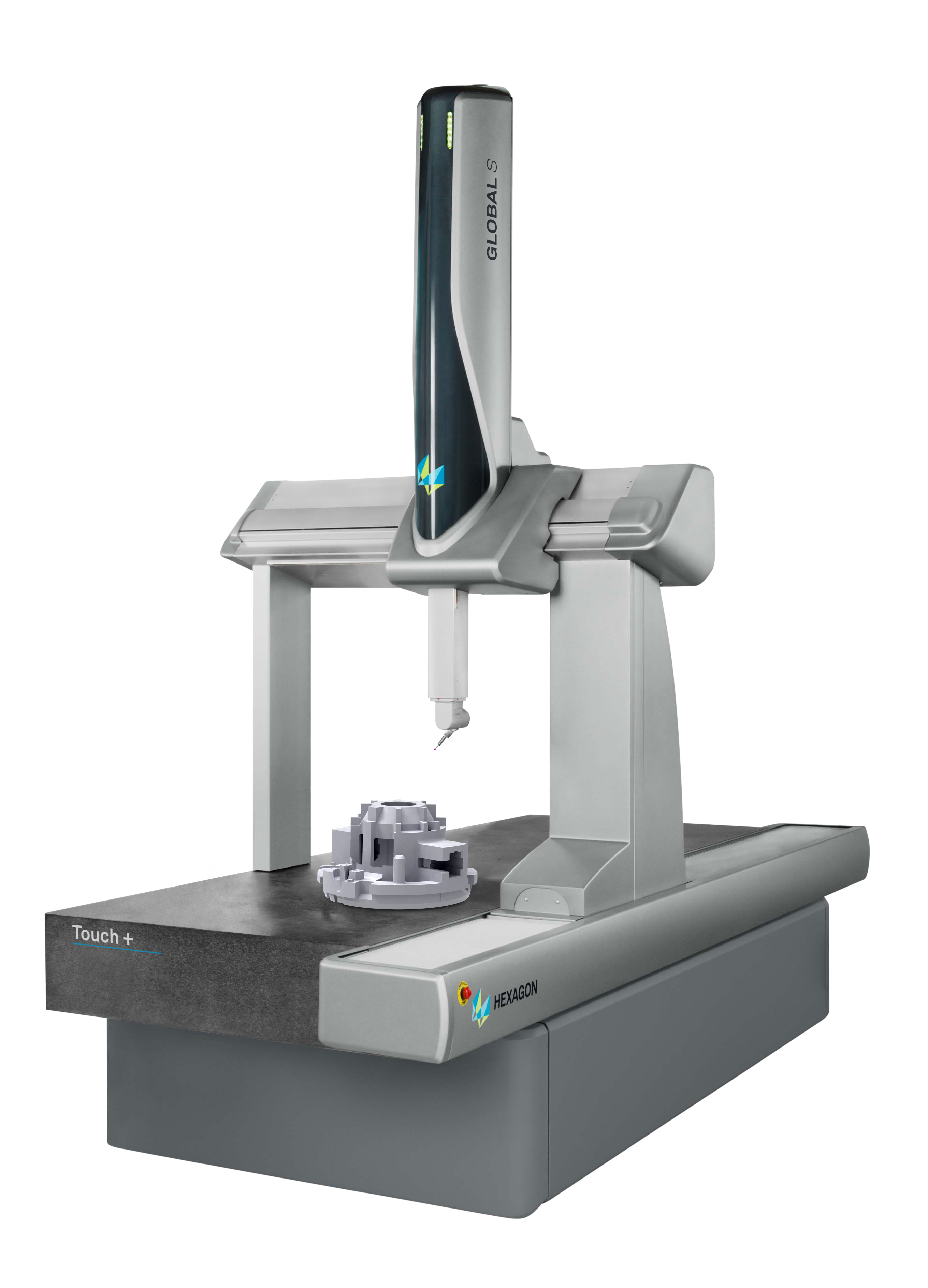

GLOBAL Touch+
