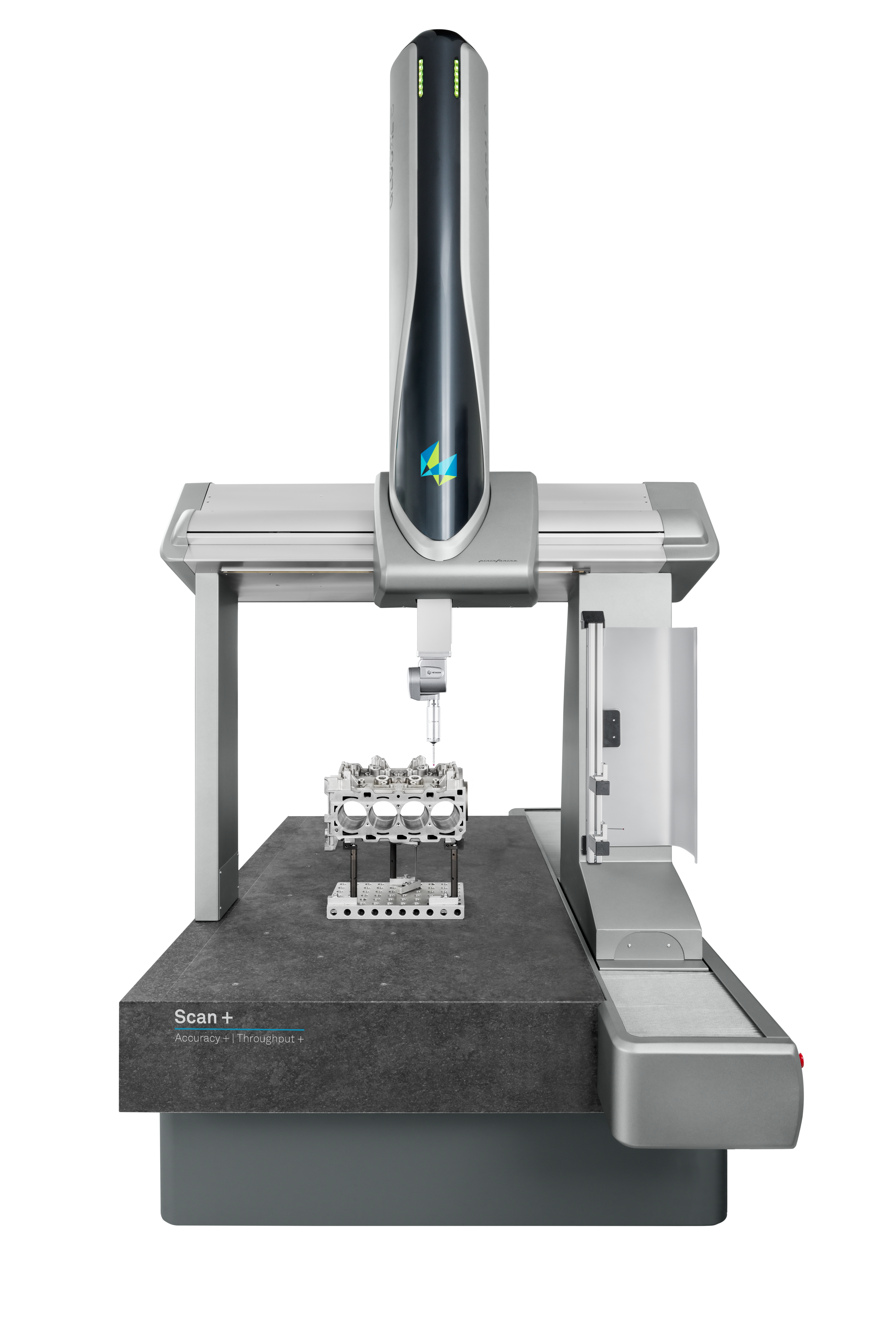

GLOBAL Scan+

Advanced tactile scanning for comprehensive GD&T analysis

GLOBAL Scan+ adds tactile scanning to the range of possible applications. With tactile scanning, a large number of surface points are captured within a short time, enabling highly accurate form and profile measurements on functional parts.

GLOBAL Scan+ combines tactile scanning capability with the flexibility of an automatic probe head. The scanning probe can be positioned at various spatial angles, making accessing more complex workpieces easy. An accompanying styli changer rack accelerates the inspection process by enabling fast changes of styli configurations within a measuring program without restricting the available measurement volume.

Benefits And Features

High accuracy measurement

Measurement of features with tolerances in a low micron range.

Measurement speed

High scanning speed and measuring throughput.

High density tactile scanning

High measuring point density for an accurate evaluation of form errors.

Training and Resources

GLOBAL Scan+ Specifications

Available Size (X, Y, Z)₁	Accuracy₂	Probe type compatibility	Automation ready
Sizes for GLOBAL S 05.05.05 / 05.07.05 / 07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.22.10 / 12.30.10 / 15.22.10 / 15.30.10 Sizes for GLOBAL Advantage 15.20.14 / 15.26.14 / 15.30.14 / 20.33.15 / 20.40.15 / 20.33.18(₅) / 20.40.18(₅)	From 1.2μm + L/350, MPE(E0/E150)₃) [18-22 °C] From 1.4μm + L/250, MPE(E0/E150)₃) [16-26 °C] From 1.2μm + L/263, MPE(E0/E150)₄) [15-30 °C]	Touch-trigger probe Scanning probe	YES
Temperature specification
18-22 °C (lab temperature) 16-26 °C (extended temperature, option) 15-30 °C (shop floor packages, option)₄)

Available Size (X, Y, Z)₁

Accuracy₂

Probe type compatibility

Automation ready

Sizes for GLOBAL S

05.05.05 / 05.07.05 / 07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.22.10 / 12.30.10 / 15.22.10 / 15.30.10

Sizes for GLOBAL Advantage

15.20.14 / 15.26.14 / 15.30.14 / 20.33.15 /

20.40.15 / 20.33.18(₅) / 20.40.18(₅)

From 1.2μm + L/350, MPE(E0/E150)₃) [18-22 °C]

From 1.4μm + L/250, MPE(E0/E150)₃) [16-26 °C]

From 1.2μm + L/263, MPE(E0/E150)₄) [15-30 °C]

Touch-trigger probe

Scanning probe

YES

Temperature specification

18-22 °C (lab temperature)

16-26 °C (extended temperature, option)

15-30 °C (shop floor packages, option)₄)

Available Size (X, Y, Z)₁
Sizes for GLOBAL S 05.05.05 / 05.07.05 / 07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.22.10 / 12.30.10 / 15.22.10 / 15.30.10 Sizes for GLOBAL Advantage 15.20.14 / 15.26.14 / 15.30.14 / 20.33.15 / 20.40.15 / 20.33.18(₅) / 20.40.18(₅)
Accuracy₂
From 1.2μm + L/350, MPE(E0/E150)₃) [18-22 °C] From 1.4μm + L/250, MPE(E0/E150)₃) [16-26 °C] From 1.2μm + L/263, MPE(E0/E150)₄) [15-30 °C]
Probe type compatibility
Touch-trigger probe Scanning probe
Automation ready
YES
Temperature specification
18-22 °C (lab temperature) 16-26 °C (extended temperature, option) 15-30 °C (shop floor packages, option)₄)

₁ Sizes are expressed in dm. I.e., 05.07.05 means X = 500 mm; Y = 700 mm; Z = 500 mm

₂ According to ISO 10360-2 (2009)

₃ MPE(E0/E150) specifications are to be formally understood as MPE(E0E150)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm

₄ Shop-floor packages only for GLOBAL S

₅ Special on request
