HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

Heavy duty HD probe heads for the most challenging applications

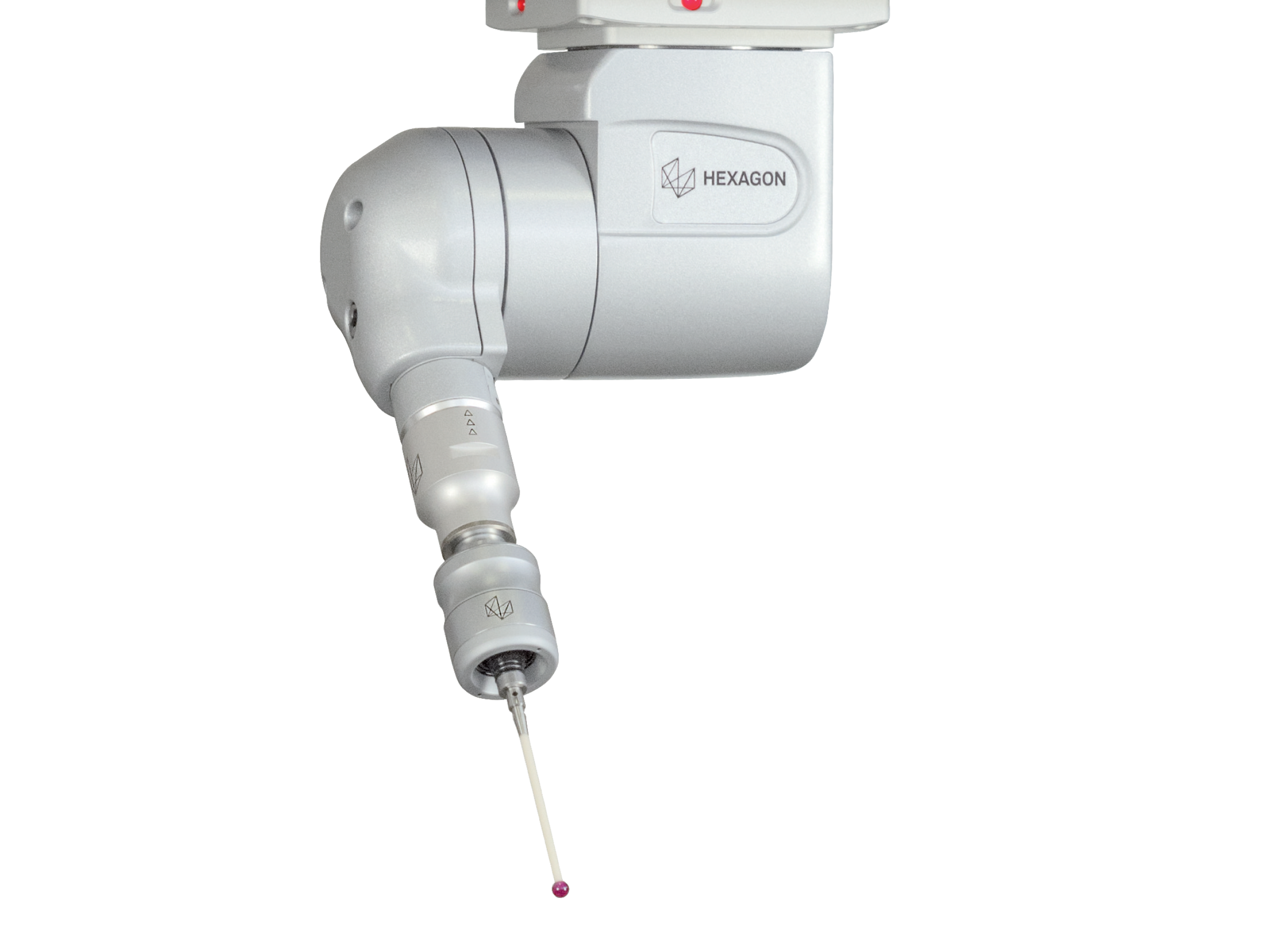

The HH-A-H2.5 can index in 2.5° increments and achieve 20,736 unique positions due to increased rotation of the A Axis (± 180°).
The head is fitted with the heavy-duty kinematic joint (HDKJ), which can be connected to a multiwire to give full multi-sensor support.

The HDKJ carries extensions of up to 750mm. Laser scanners and scanning heads can be supported further from the rotation axis than conventional probe heads due to the combination of extreme rotational torque and the HDKJ adaptor.

Training and Resources

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads Specifications

Indexing angle	A-axis angle	B-axis angle	Total number of positions
2.5°	+/-180°	+/-180°	20 736
Rotation speed	Max. extension length	Probe mounting	Changer rack compatibility
90° in 2.5 sec.	750 mm	HDKJ	YES

Indexing angle
2.5°
A-axis angle
+/-180°
B-axis angle
+/-180°
Total number of positions
20 736
Rotation speed
90° in 2.5 sec.
Max. extension length
750 mm
Probe mounting
HDKJ
Changer rack compatibility
YES
