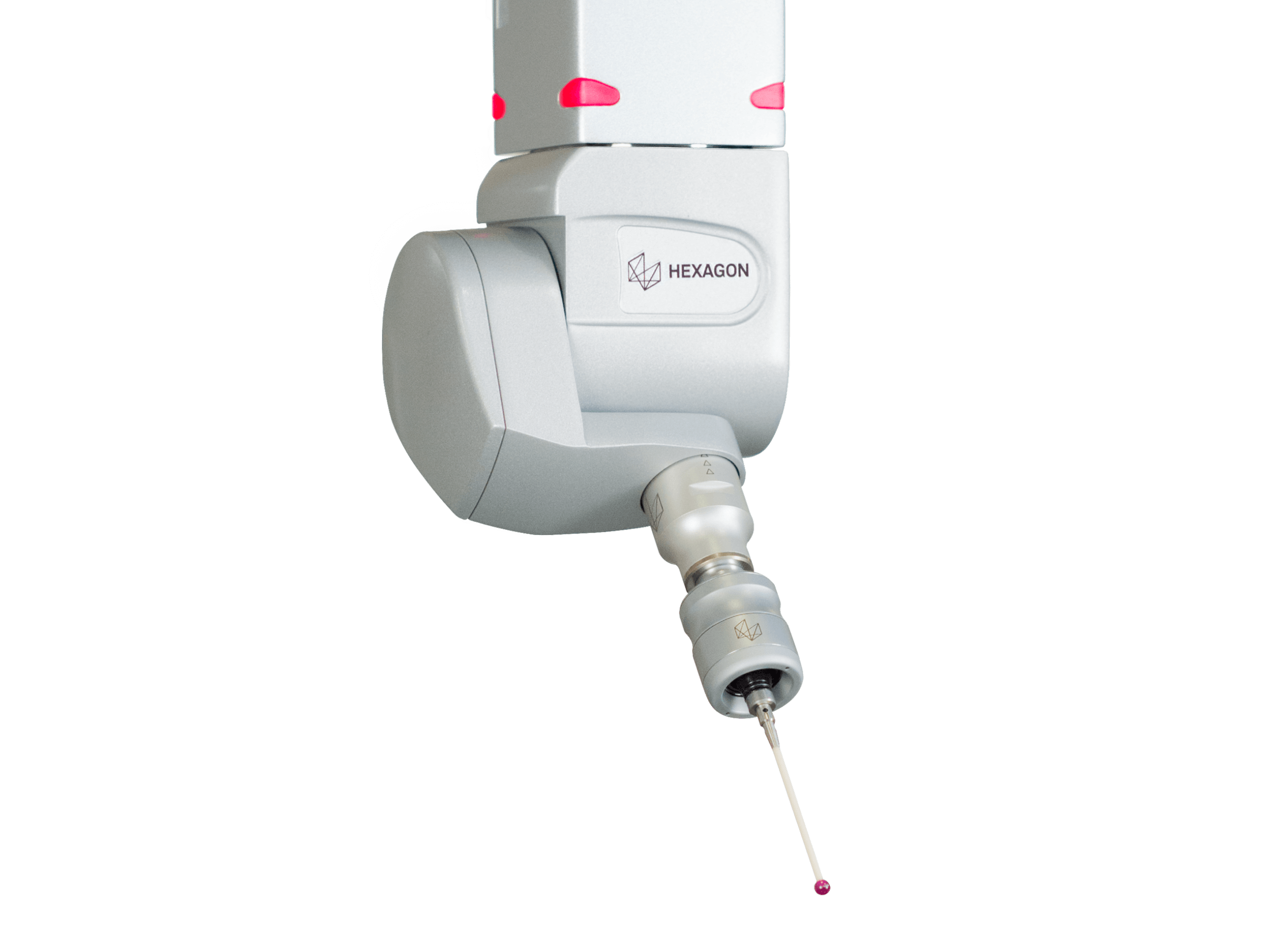

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

Skip to

A new degree of freedom

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions. The head is fitted with a kinematic joint (TKJ) which can be connected to a Multiwire to give multi-sensor support.

The HH-A-2.5 range of probe heads feature a number of new innovations including an fully embedded controller, capacitive crash protection and the all new heavy duty kinematic joint.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads Specifications

Indexing angle

2.5°

A-axis angle

+/-105°

B-axis angle

+/-180°

Total number of positions

12 240

Rotation speed

90° in 2.5 sec.

Max. extension length

450 mm

Probe mounting

TKJ

Changer rack compatibility

YES
