HP-C Vision Sensor
Vision camera measurement system for CMMs

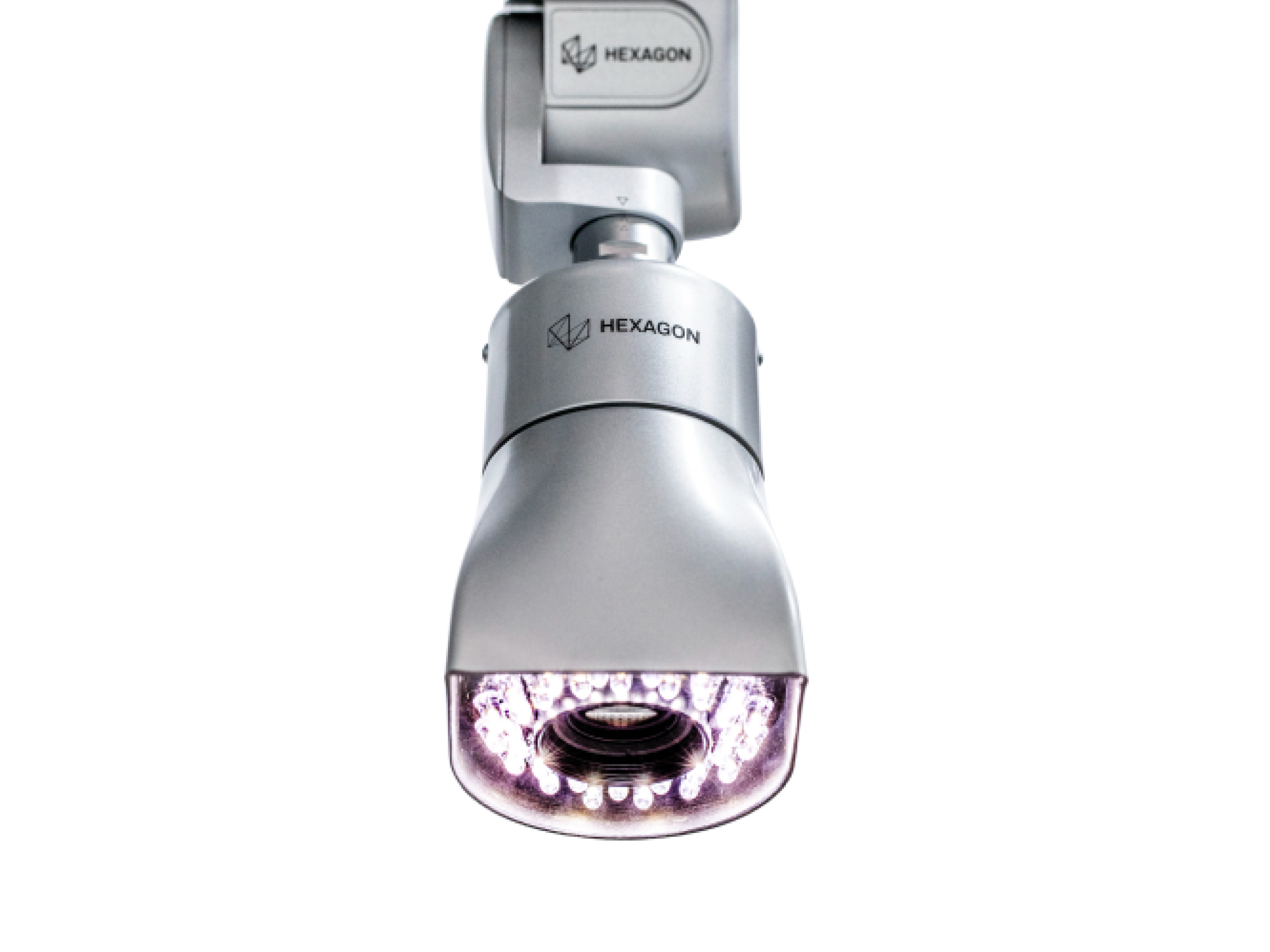

The HP-C Vision Sensor can measure small features and sensitive or easily deformed components and deliver throughput for applications where image capture is faster than probing. It is equipped with a high-resolution camera and a built-in illumination system.
Thanks to the working distance of 110 mm and two zooming options, the HP-C is an extremely flexible solution, especially when features are too small for tactile probing.
Training and Resources
HP-C Vision Sensor Specifications
| Field of view | |
|---|---|
11,7 mm x 8,7 mm (Mode 1) 5,9 mm x 4,4 mm (Mode 2) | |
| Pixel size | |
11,4 μm (Mode 1) 5,7 μm (Mode 2) | |
| Frame rate | |
15 fps (Mode 1) 19 fps (Mode 2) | |
| Camera type | |
3 Megapixel high-speed | |
| Working distance | |
110 mm | |
| Illumination | |
Oblique and targeted at the optical plane center 64 white LEDs split into 16 sectors and 2 rings | |
| Probing error | |
Probing error of the image probe PFV2D₁ 5,0 μm Probing error PF2D₁ 8,0 μm |
₁ ISO 10360-7: 2011 “Imaging probing system”
