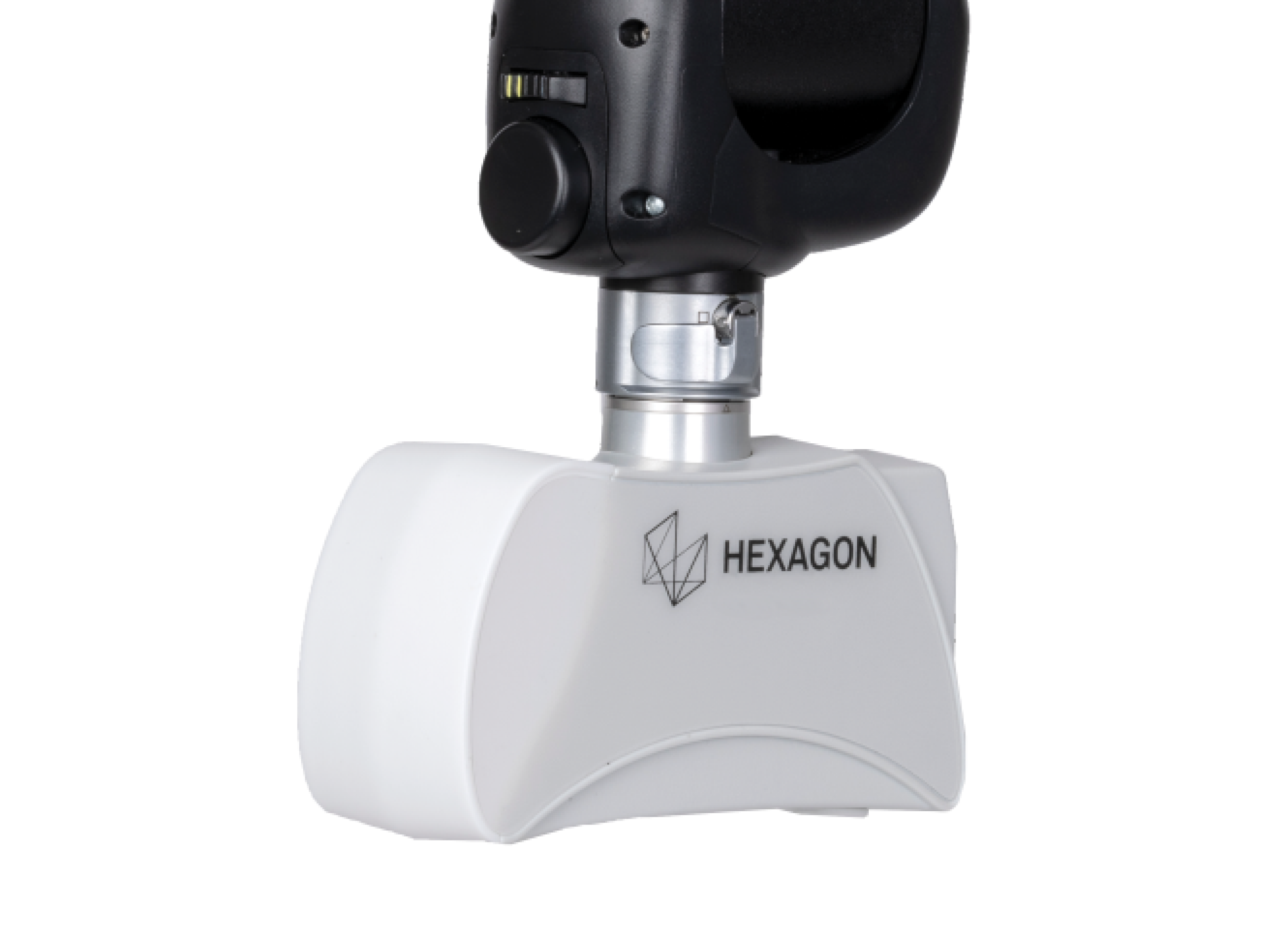

HP-L-8.9 Laser Scanner

Cost-effective laser scanning for the Absolute Arm.

Skip to

Cost-effective laser scanning for the Absolute Arm

Compatible with all 6-axis Absolute Arm portable coordinate measuring machines (PCMMs), the HP-L-8.9 3D laser scanner can be seamlessly integrated in minutes to enhance the already versatile Absolute Arm with high-speed scanning capabilities.

HP-L-8.9 Laser Scanner Specifications

Scanner accuracy

0.04 mm (2σ)

Max. point acquisition

45 000 points/sec

Min. point spacing

0.08 mm

Scanning frequency

60 Hz

Laser line width

80 mm (at mid-field)

Stand-off

135 +/- 45 mm

Protection class

Automated exposure

Manual

Absolute Arm 6-Axis

Conduct one-of-a-kind, high-accuracy probing with useful multifunctionality and productivity improvements.

Absolute Arm Compact

The Absolute Arm Compact is the ultimate solution for ultra-high-accuracy touch probe measurement of small-to-medium sized parts.

HP-L-8.9 Laser Scanner

Cost-effective laser scanning for the Absolute Arm

HP-L-8.9 Laser Scanner Specifications

Absolute Arm 6-Axis

Absolute Arm Compact
