HP-S-X5 Scanning Probes

HP-S-X5 scanning probes are 3D fixed scanning heads measuring in the X, Y and Z directions to define the workpiece surfaces' orientation.

Skip to

Support

Specifications

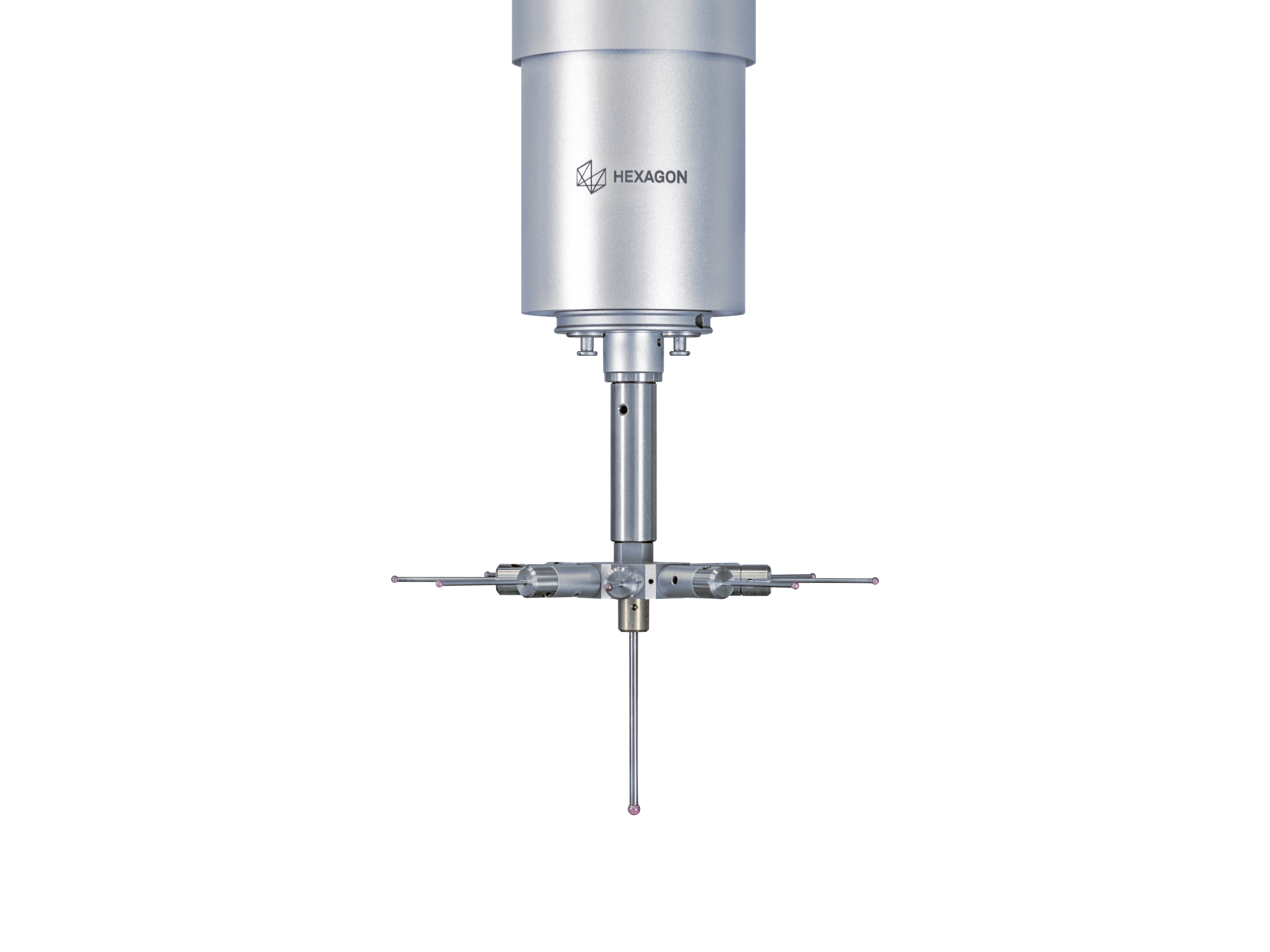

Ultra-precise, full 3D fixed scanning probe heads

The HP-S-X5 and HP-S-X5 HD are heavy-duty analog scanning probes that offer high and repeatable accuracy, even with extra-long probe extensions and heavy styli clusters.

HP-S-X5 range scanning probes offer true 3D probing, making them ideal for inspecting parts like gears, rotors, and blades. On contact with the part, the probe automatically measures normally to the surface. Deflections are measured by high-resolution Linear Variable Differential Transducers (LVDT), allowing accurate compensation of the probe bend, whatever length of stylus is used.

HP-S-X5 Scanning Probes Specifications

Probe type

Analogue

Probe mounting

Center mounted / dovetail connector

Stylus holder thread

Max. stylus length

Up to 800mm

Max. stylus weight

650g (incl. stylus clamping)

Measurement range

+/- 1mm in all axes

Resolution

< 0.1 μm

Linear stiffness

5 N/mm
