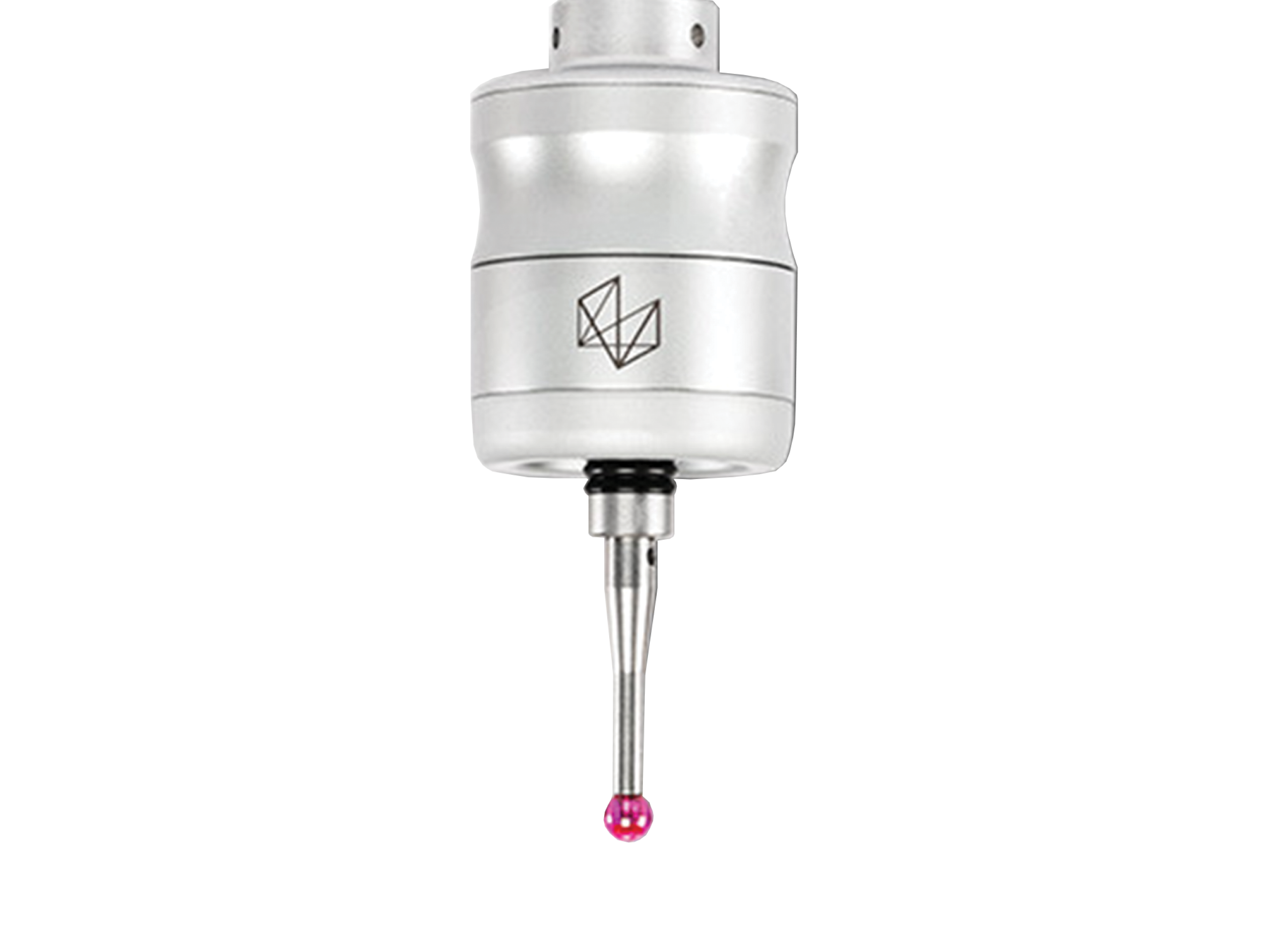

HP-T-RP Probe

The HP-T-RP is a rugged and accurate touch trigger probe that can be mounted on many coordinate measuring systems.

Skip to

The rugged touch trigger probe for harsh environments

The HP-T-RP is a rugged and accurate touch trigger probe that can be mounted on many coordinate measuring systems such as bridge, gantry, horizontal arms, manual or CNC, portable devices, and even robots.

This sensor can operate in any industrial environment, even in the most hostile. Optimized accuracy is ensured through an adjustable trigger force according to the chosen stylus configuration.

HP-T-RP Probe Specifications

Mounting

Probing direction

5 ways +/-X, +/-Y, +Z

Stylus mounting

M3 thread

Max. stylus length

100 mm

Trigger force

0.11 N to 0.30 N

Pre-travel variance

Not available

Repeatability (1D, 2sigma)

0.35 μm
