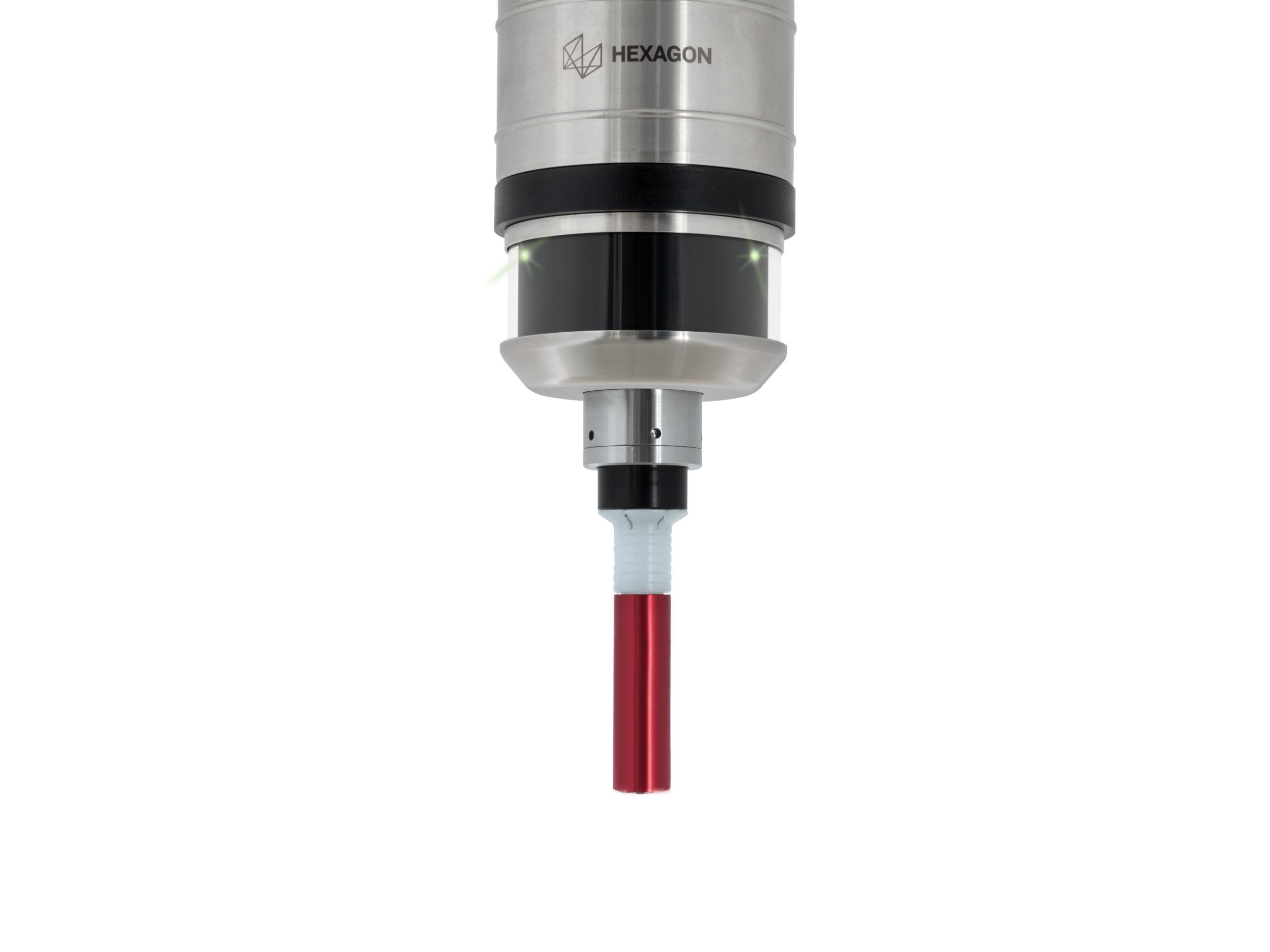

Infrared Temperature Probe m&h IRP25.50-TP

Providing highly precise production results

The m&h IRP25.50-TP temperature probe helps ensure that workpieces are machined only when the temperature is correct. Ideal for cost-intensive workpieces, the m&h IRP25.50-TP uses patented technology to automatically measure workpiece temperature within seconds, both before and during machining. This enables greater control of production processes and adaptation of machining parameters during production.

The m&h IRP25.50 is characterized by its modular structure, enabling the use of various measuring units, different extensions, and cross-probes. The temperature unit can be quickly exchanged with a regular machine tool probing unit, allowing users to optimally adjust the probe for future requirements and machine tool applications at any time.

Training and Resources

Infrared Temperature Probe m&h IRP25.50-TP Specifications

Accuracy	Measuring range and resolution	Temperature range	Power supply
±1°C₁ (resolution is 0,1°C)	13 N (Trigger force with 50mm sensor)	Storage: 5 °C – 70 °C, Operation: 10 °C – 50 °C	1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Infrared

Accuracy

Measuring range and resolution

Temperature range

Power supply

±1°C₁
(resolution is 0,1°C)

13 N (Trigger force with 50mm sensor)

Storage: 5 °C – 70 °C, Operation: 10 °C – 50 °C

1 x 9 V battery block, 6LR61 Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Infrared

Accuracy
±1°C₁ (resolution is 0,1°C)
Measuring range and resolution
13 N (Trigger force with 50mm sensor)
Temperature range
Storage: 5 °C – 70 °C, Operation: 10 °C – 50 °C
Power supply
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Infrared

₁ The measuring accuracy depends on the condition (surface finish, surface parallelism) and calibration of the workpiece.
