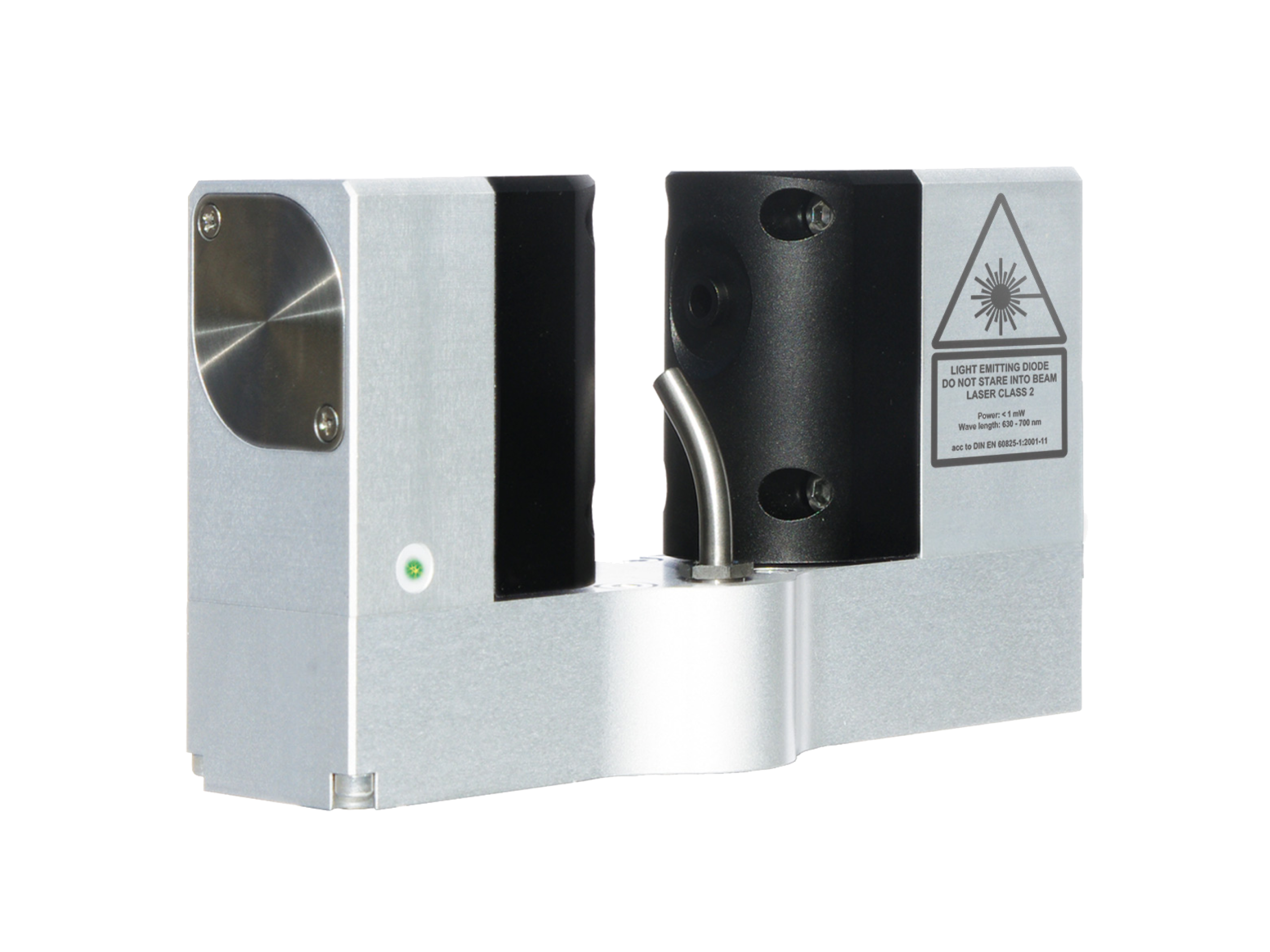

Laser Tool Setter LTS35.65-23
The laser tool setter Compact is designed for usage in machines with limited space for the measurement of particularly small tools.
The compact laser tool setter
With a length of 123 mm and a height of only 66 mm, there is space for the system even in a small machine. The cable outlet is also only downward to prevent the need for more space for cables and the pneumatic supply.
Application:
- Determination of tool length
- Measurement of tool radius
- Detection of broken tools
Laser Tool Setter LTS35.65-23 Specifications
Accuracy
0,1μm (2 Sigma)
Laser safety class
Class 2
Temperature range
Operation: 10° C – 50° C
Storage: 5° C – 70° C
Power supply
12-26 VDC / max. 100 mA
Protection class
IP68: EN60529 (connected, air-curtain on)
Signal transmission
Cable
