High-performance 6DoF laser tracker technology in an ultra-portable and easy-to-use form factor.
High-performance 6DoF laser tracker technology in an ultra-portable and easy-to-use form factor.

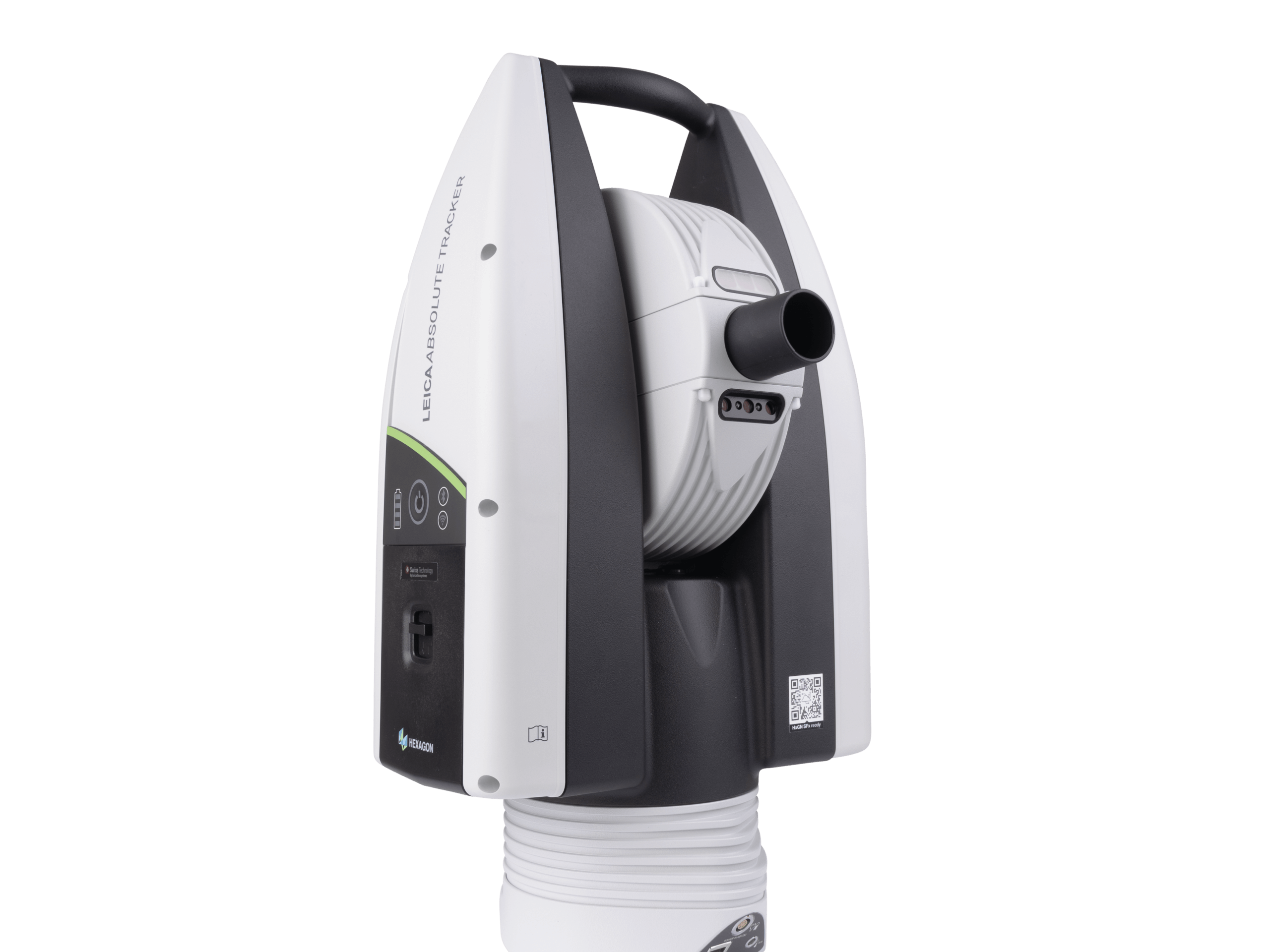

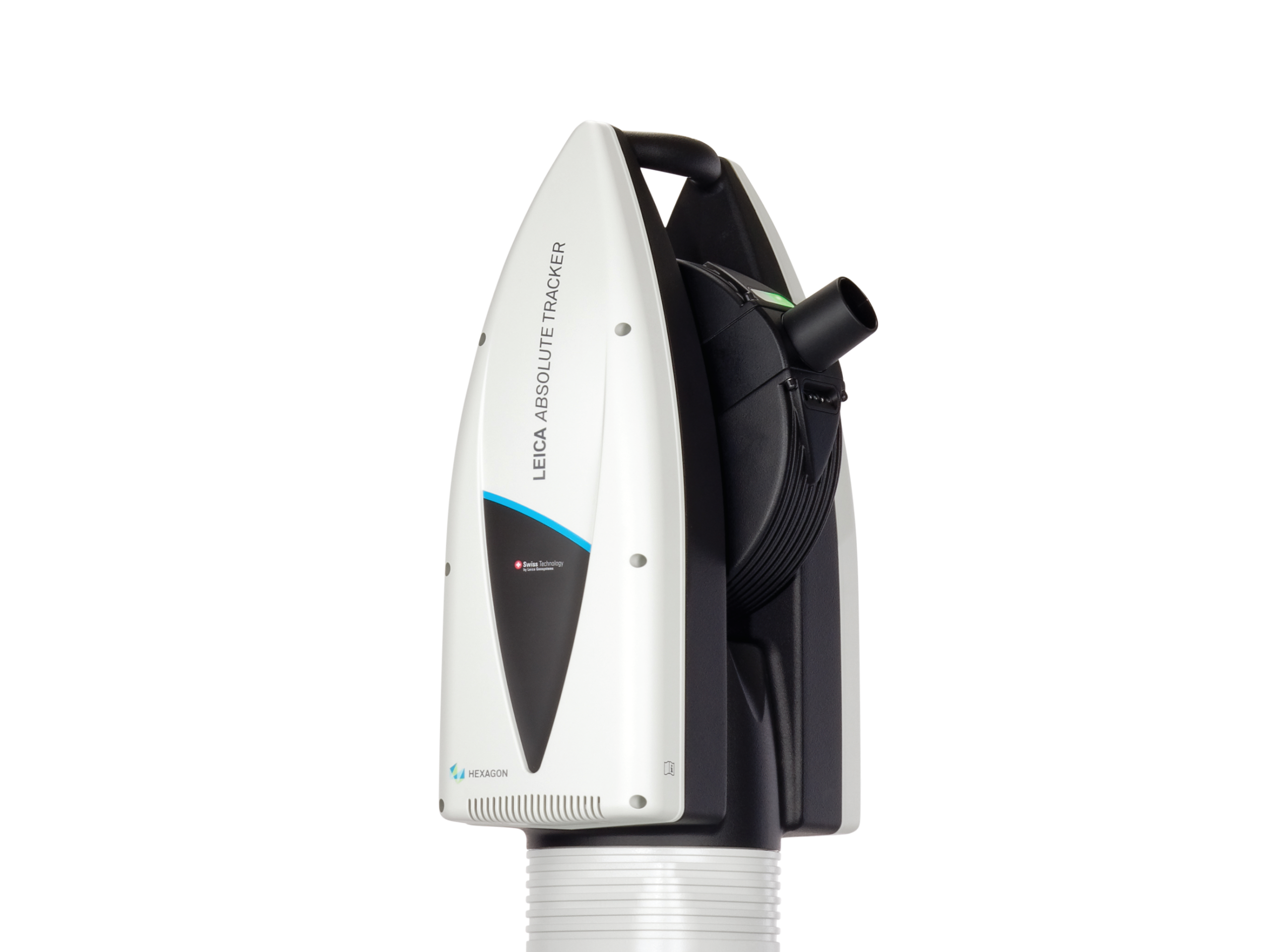

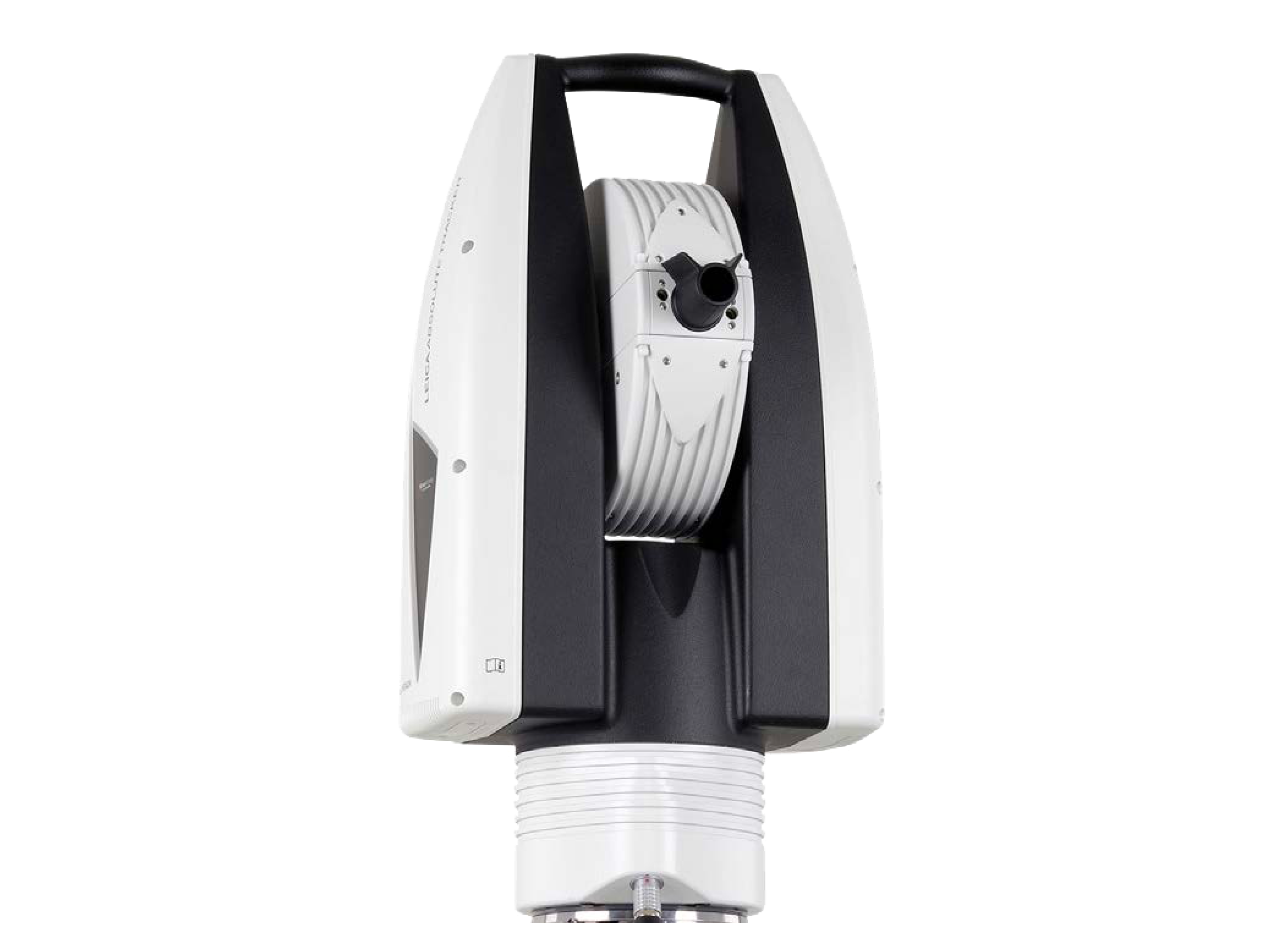

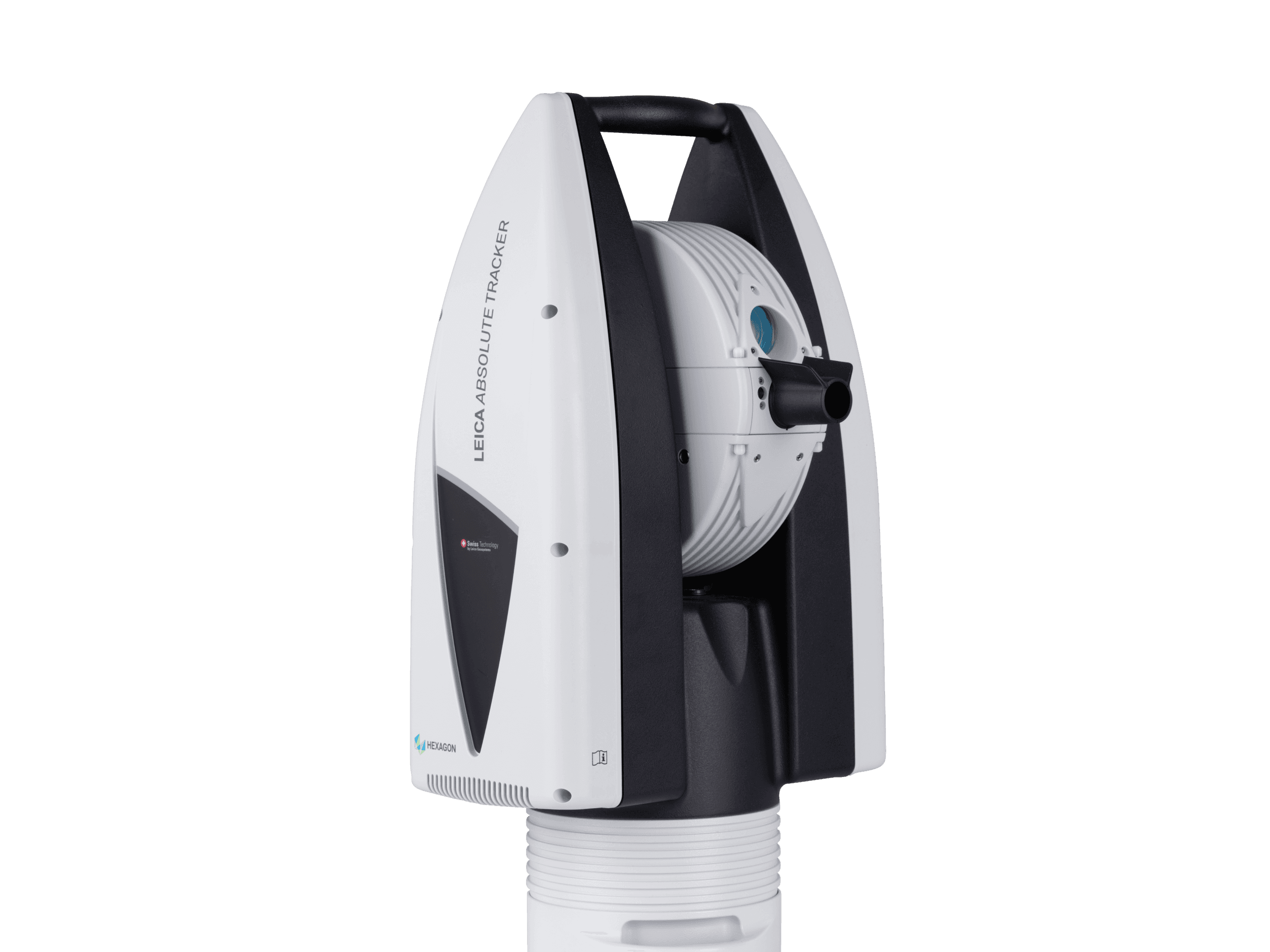

The Leica Absolute Tracker AT960 is a robust, all-in-one laser tracker that fits in a single flight case. Offering high-speed dynamic measurement as standard, it is a complete solution for six degrees of freedom (6DoF) probing, scanning and automated inspection as well as reflector measurement.

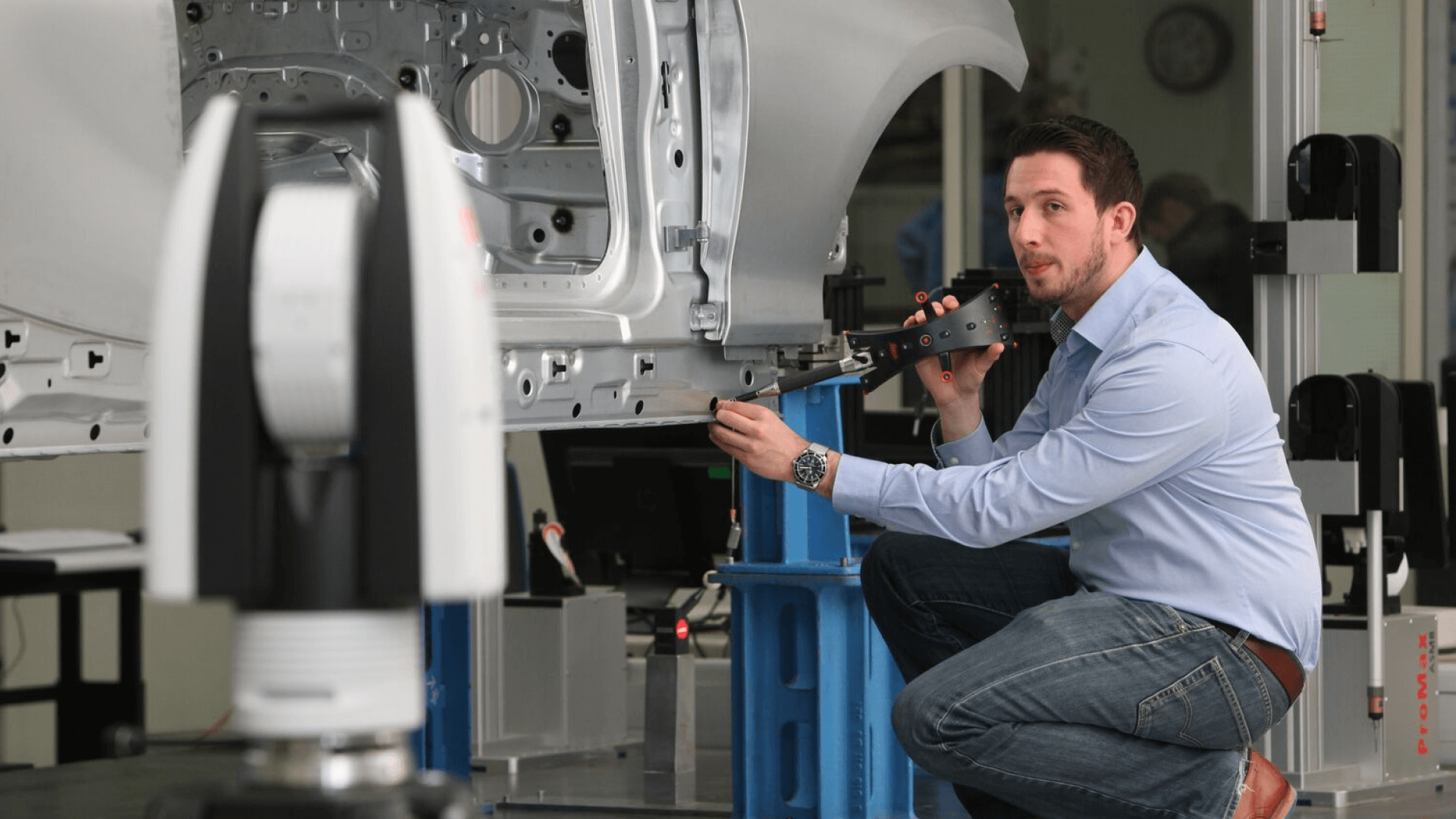

With all the equipment for measurement to a reflector, Leica T-Probe, Absolute Scanner or Leica T-Mac built in, the compact all-in-one unit is ultra-portable for easy transportation to measure anywhere.
Real-time architecture with dynamic performance gives a measurement rate of up to 1 000 points per second, enabling more detailed data capture, more quickly.
Enhance the AT960 with 7DoF data collection to enable the possibilities of real-time machine guidance.
Interrupted line of sight is automatically re-established in a +/-5 degree field of view with no user interaction required for ease of use and exceptional performance in even the most crowded measurement volumes.
The Absolute Interferometer (AIFM) single distancing unit combines the accuracy of an absolute distance meter and the speed of an interferometer to give readings quickly and accurately with no need for a home point.
Accuracy
+/-15 μm + 6 μm/m
Measurement range
Up-to 80 m (3D)
From 1.2 to 30 m (6D)
Measurement mode
Stationary, Continuous (Reflector)
Stationary (T-Probe)
Operating temperature
0°C to +40°C
Data output
1000 Hz
Protection class
IP 54
Tracker size and weight
258 x 238 x 477 mm | 14.2 kg
Certification
According to ISO 10360-10
