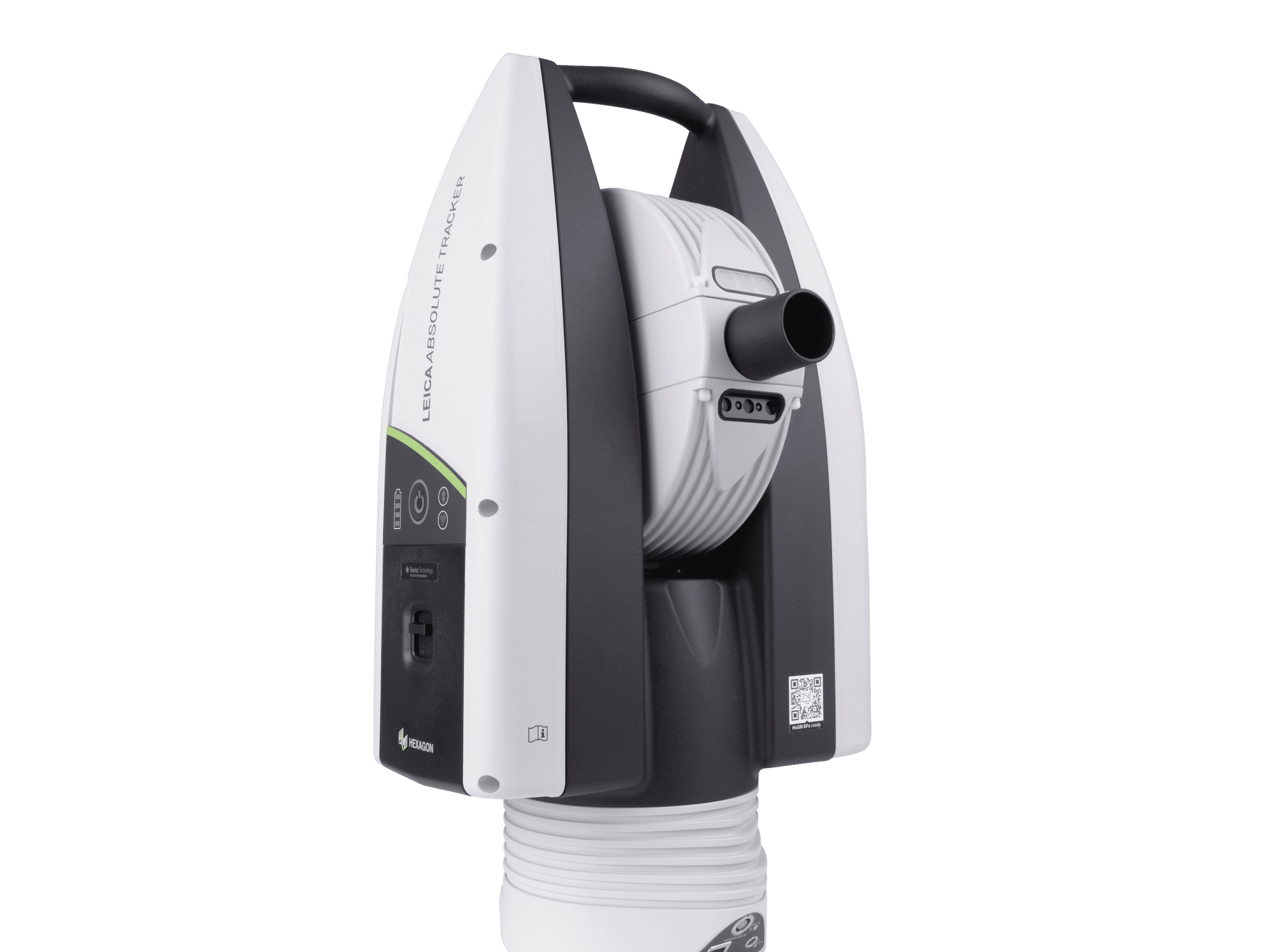

Leica Absolute Tracker AT500
Drive productivity and upgrade your manufacturing and assembly line with the AT500, able to measure from anywhere.
Measure anywhere with enhanced productivity

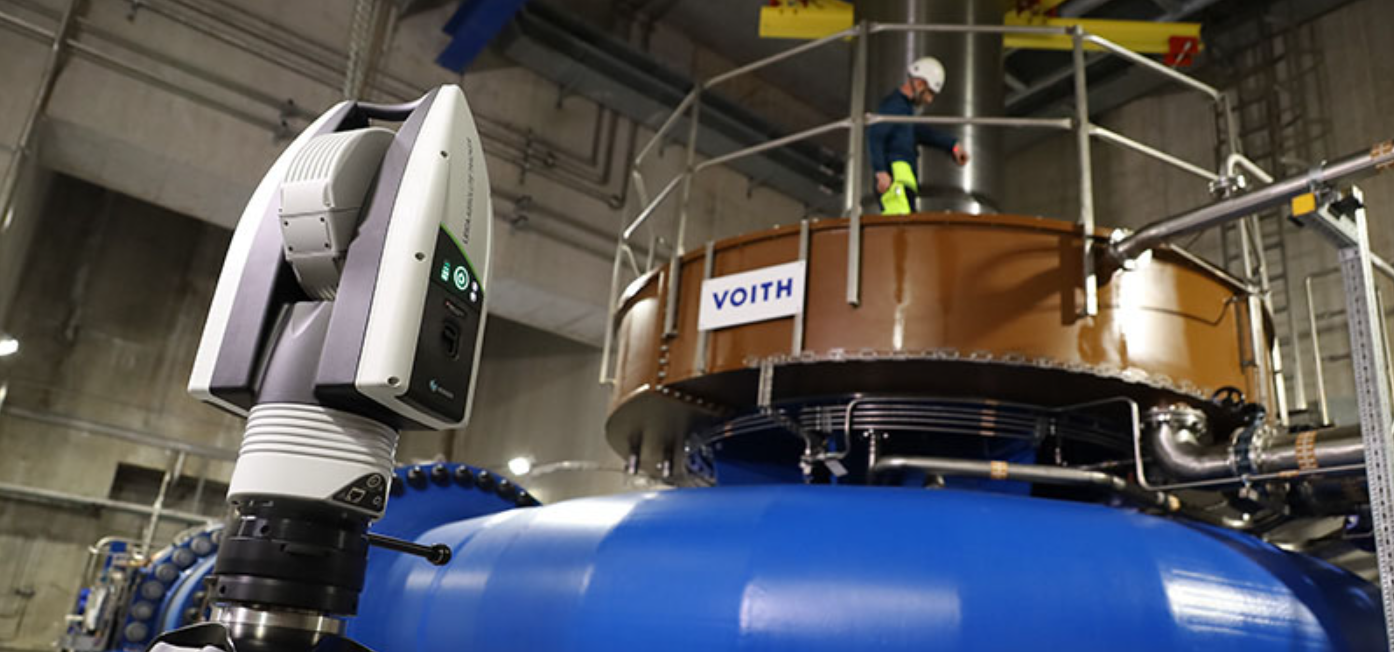

The Leica Absolute Tracker AT500 makes measurement simple without compromising on portability, productivity and resilience. From transport case to large-scale measurement is just a matter of moments thanks to a hassle-free setup process, while IP54-rated protection and an extended operating temperature range keep the AT500 working under even the most challenging conditions. From reflector measurement at up to 160 metres from the tracker to simplified 6DoF probing functionality, the AT500 is ready for every manufacturing and assembly challenge, no matter the size or location.
Benefits List item 1 for indexing
Benefits list item 2 for indexing
Drive productivity and upgrade your manufacturing and assembly line with the Leica Absolute Tracker AT500, able to measure from anywhere.
Drive productivity and upgrade your manufacturing and assembly line with the Leica Absolute Tracker AT500, able to measure from anywhere.
01
All-in-one integrated design
From built-in battery-powered controller unit, integrated wireless connectivity, environmental monitoring and all-day battery power, to HD overview camera and ergonomic carry handle, every need is built in.
02
PowerLock & continuous measurement
Automatically re-establishes interrupted line of sight within a wide field of view with no user interaction required. Continuous time and distance measurement mode, with measurement sampling rate at 100 Hz.
03
IP54 certification
The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling effective measurement in even the harshest environments.
04
Wide operating temperature
Wide operating temperature range of -15 to +50° celsius.
05
Ultra-large measurement volume
Ultra-large measurement volume of up to 320 metres (ø), with minimum measurement distance less than 0.8 metres.
Leica Absolute Tracker AT500 Specifications
Accuracy
+/-15 μm + 6 μm/m
Measurement range
0.8 to 160 m (3D)
1.6 to 12m (6D)
Measurement mode
Stationary, Continuous (Reflector)
Stationary (B-ProbePLUS)
Operating temperature
-15°C to +50°C
Data output
100 Hz
Protection class
IP 54
Tracker size and weight
261 x 239 x 477 mm | 13.6 kg
Certification
According to ISO 10360-10
Software Downloads
Downloads are only available on the desktop version. Please access our site from a desktop to download.
| Version | Name | Date Released | File Size | |
|---|---|---|---|---|
| 1.0.6 | Leica Absolute Tracker AT500 | 2025-02-18 | -- |
