Leitz PMM-C Flexibility
Ultra-high-accuracy measurements of tight tolerance parts with maximum application adaptability.
Ultra-high accuracy measurement and application flexibility
Leitz PMM-C CMMs are highly precise, premium metrology devices that deliver fast, ultra-high accuracy results to fulfil the most demanding inspection requirements across a range of precision applications.
The latest generation of machines offers exceptional accuracy across the series, with specific configurations and capabilities to serve individual application needs.

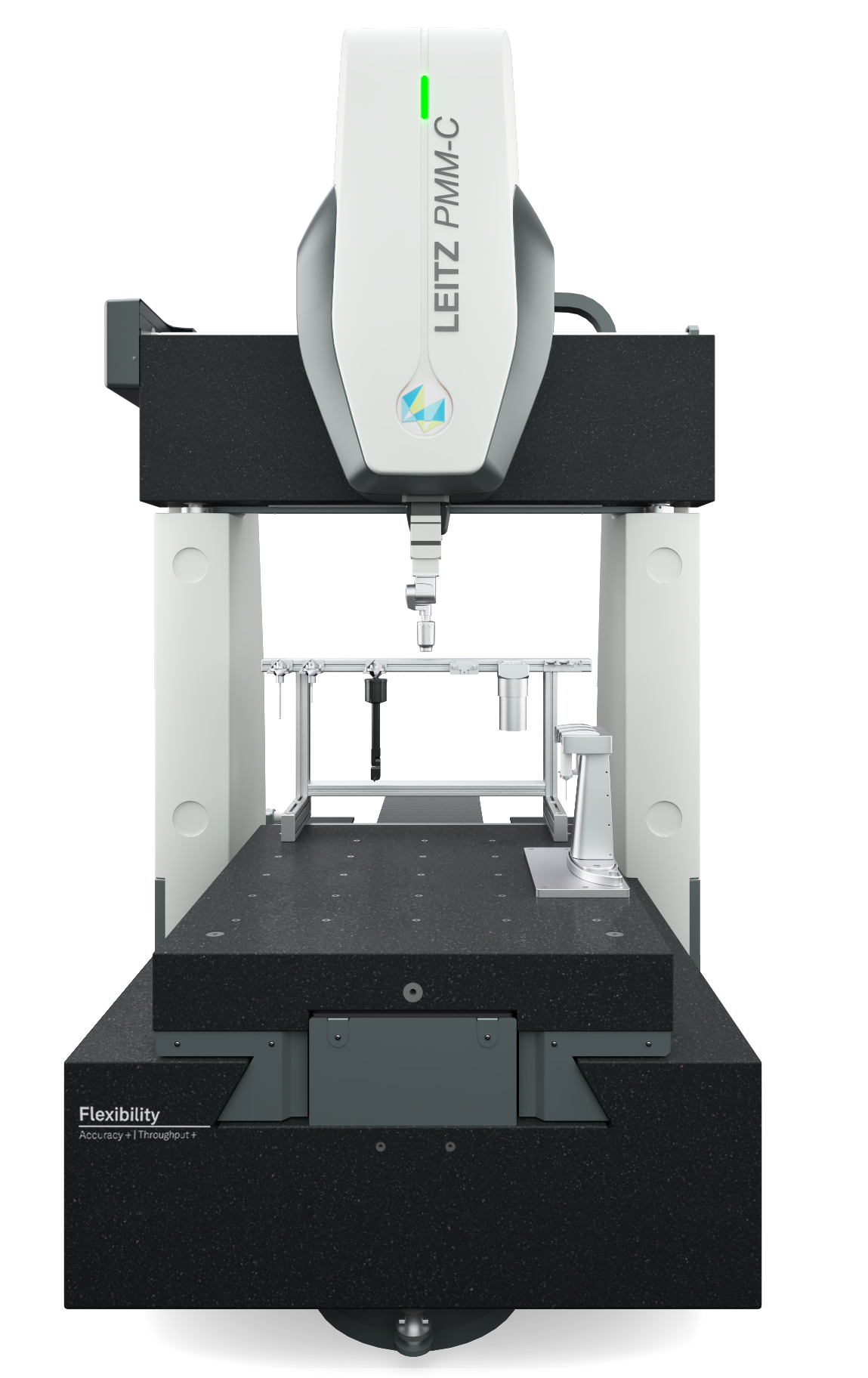

The Leitz PMM-C Flexibility model is configured to boost the machine’s adaptability to more challenging applications and part features and decrease cycle time. It combines accuracy and flexibility in one measurement solution.
This model has an articulating probe head that measures at any angle to improve access to complex 3D part geometries. In addition, the SENMATION sensor automation system increases measurement flexibility by allowing the seamless integration of a variety of tactile and optical sensors within one measurement routine to address multi-part or multifeatured applications.
01
High precision measurement
Sub-micrometre accuracy for master, gauge calibration and tightest tolerances of part geometry.
02
Versatility
Customizable user interfaces and modules with QUINDOS metrology software for industry-specific parts and special geometries.
03
SENMATION
SENMATION enabling automatic sensor changes within part programs and providing a futureproof platform interface for flexible integration of new sensors.
04
Non-contact sensor
Non-contact measurements with chromatic white light, interferometric and laser scanning sensors.
05
Rotary table
Simultaneous 4-axis scanning – optical or tactile – in combination with a rotary table.
Leitz PMM-C Flexibility Specifications
Available Size (X, Y, Z)₁
07.07.05 / 10.07.06 / 12.10.07 /
16.12.10 / 24.12.10 / 24.16.10
Accuracy₂
From 0.28μm + L/1000, MPE(E0)₃) [19-21 °C]
From 0.7μm + L/400, MPE(E0/E150)₄) [18-24 °C]
Probe type compatibility
Scanning probe
Non-contact probe (optical sensor)
Contact probe (roughness sensor)
Laser scanner probe
Automation ready
YES
Temperature specification
18-22 °C (standard temperature range)
19-21 °C (Accuracy + model )
18-24 °C (XT, option)
₁ Sizes are expressed in dm. I.e., 07.07.05 means X = 700 mm; Y = 700 mm; Z = 500 mm
₂ According to ISO 10360-2 (2009)
₃ E0, E150 and R0 are valid for a length gauge with an uncertainty of calibration of ≤ 0.02 + 0.12 x L / 1000 and a CTE between 8 x 10-6/K and 13 x 10-6/K. The availability of suitable length standards for measuring lengths of more than 1000 mm must be clarified by mutual agreement between the user and the manufacturer.
₄ XT option only
