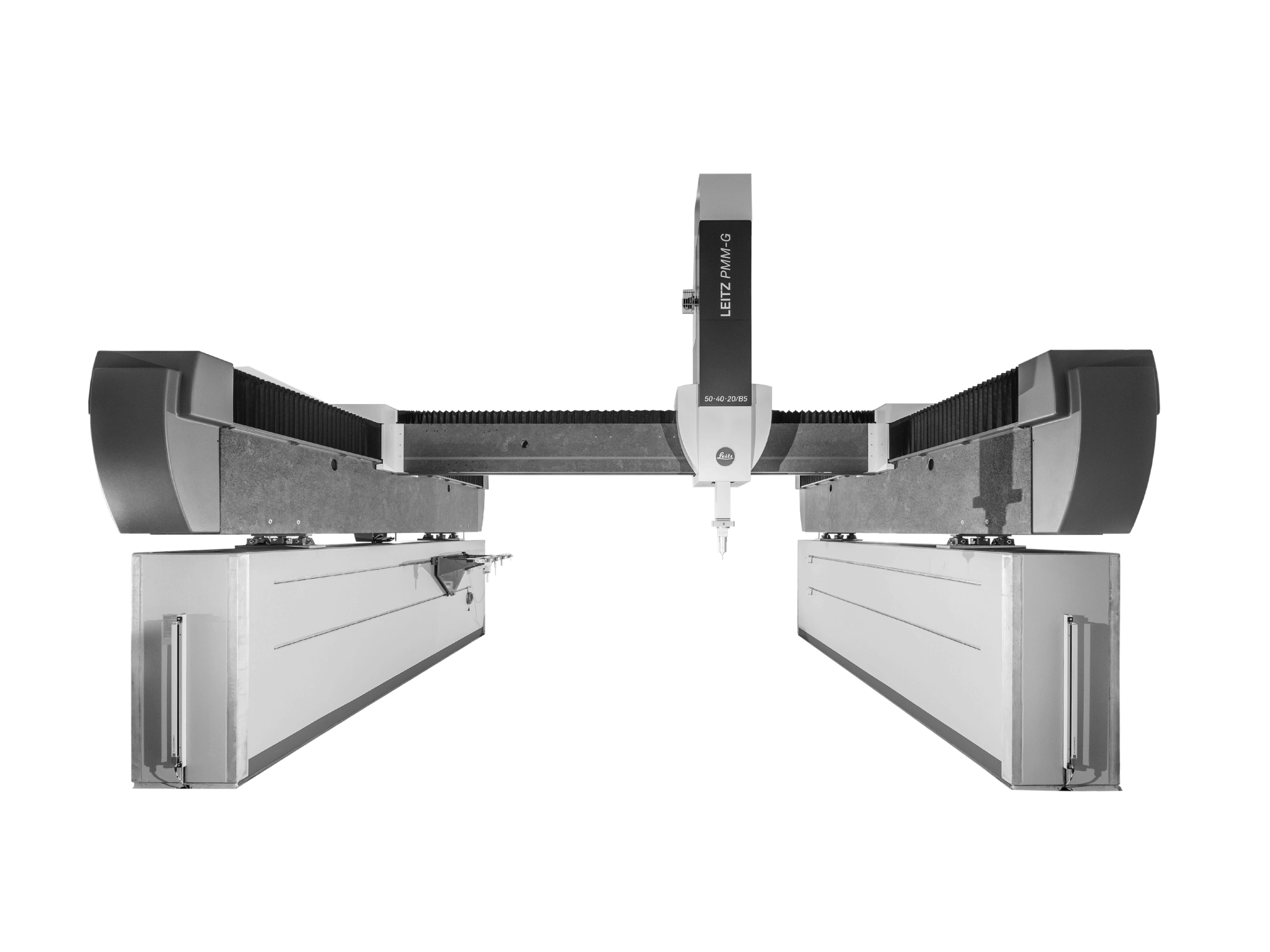

Leitz PMM-G

Precise throughput for large-size workpieces

The Leitz PMM-G provides highest accuracy and a highly enhanced throughput for large-size XXL workpieces. These workpieces are used for example in aircraft and aerospace industries or in ship engine constructions. Also the measurement of large gears used in wind turbines is possible. Despite such large measuring strokes, the Leitz PMM-G reaches a precision and performance level, which is usually common with much smaller 3D measuring machines.

Training and Resources

Leitz PMM-G Specifications

Accuracy	Probe type compatibility	Temperature specification
From 2.0 + L / 400, (E0/E150), 1.2(R0)₂) [18-22 °C]	Scanning probe Contact probe (roughness sensor) Non-contact probe (optical sensor)	18 - 22 °C

Accuracy

Probe type compatibility

Temperature specification

From 2.0 + L / 400, (E0/E150), 1.2(R0)₂) [18-22 °C]

Scanning probe

Contact probe (roughness sensor)

Non-contact probe (optical sensor)

18 - 22 °C

Accuracy
From 2.0 + L / 400, (E0/E150), 1.2(R0)₂) [18-22 °C]
Probe type compatibility
Scanning probe Contact probe (roughness sensor) Non-contact probe (optical sensor)
Temperature specification
18 - 22 °C

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

LSP-S2

A flexible probe head capable of easily and swiftly achieving a full range of precise probing deflection measurements.

HP-S-X5 Scanning Probes

HP-S-X5 scanning probes are 3D fixed scanning heads measuring in the X, Y and Z directions to define the workpiece surfaces' orientation.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

SENMATION

Intelligent sensor automation for coordinate measuring machines.

PROFILER R Tactile Roughness Sensor

The PROFILER R miniature roughness sensor offers a more accurate alternative to manual roughness measurements.

DELTA OPERA

DELTA OPERA combines the advantages of both bridge and gantry-type CMMs to make loading large parts safe and efficient.

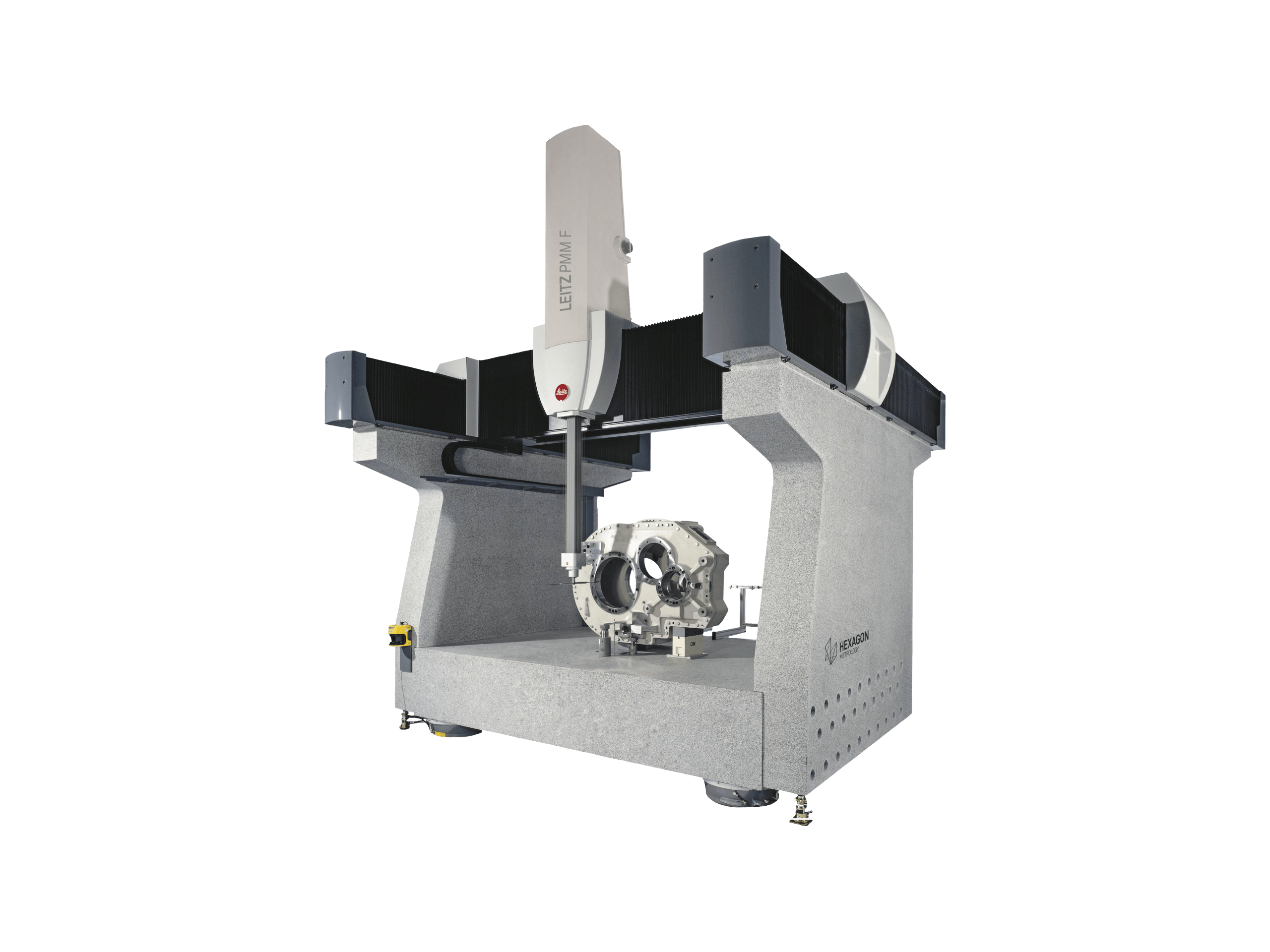

Leitz PMM-F
