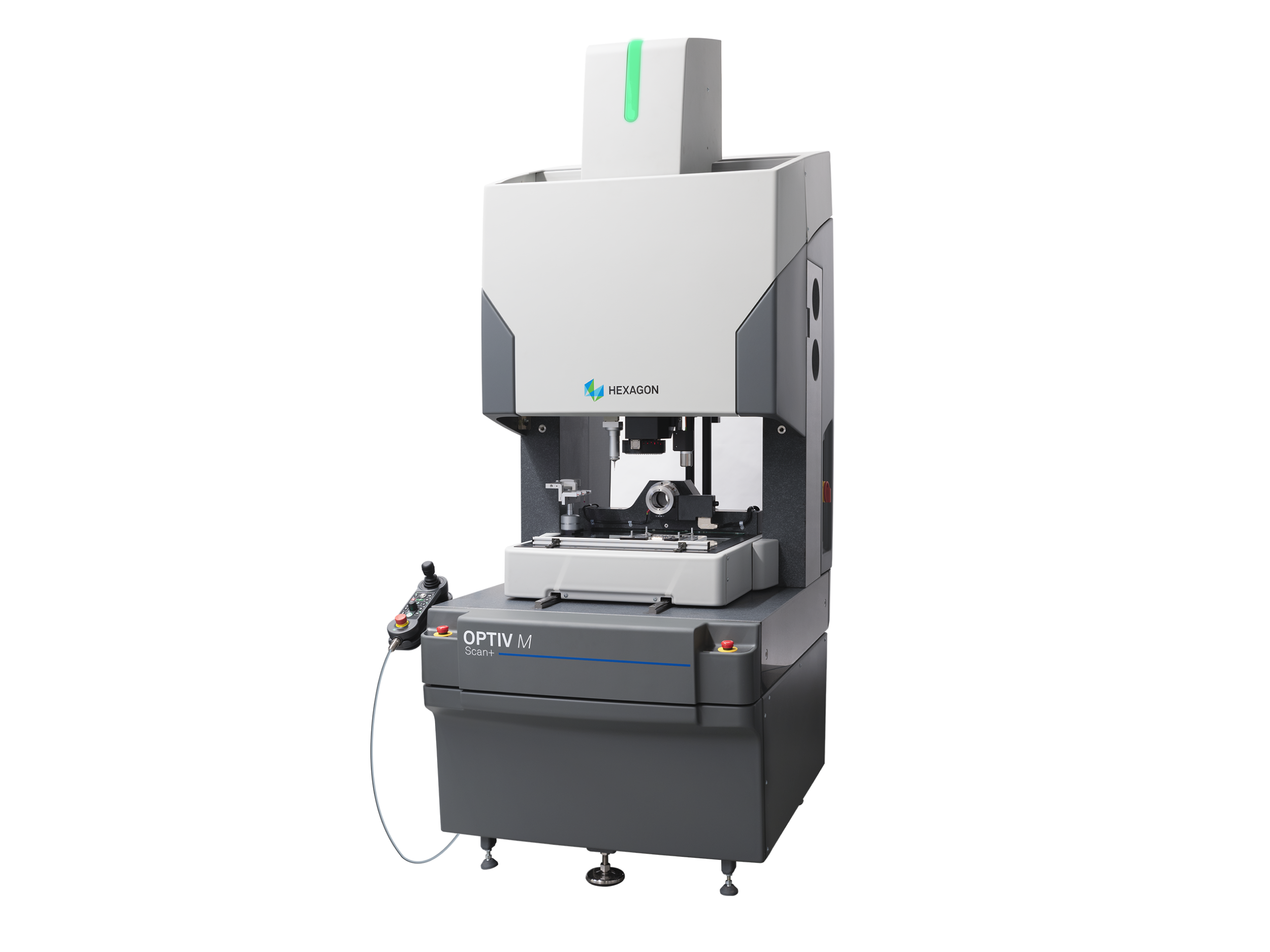

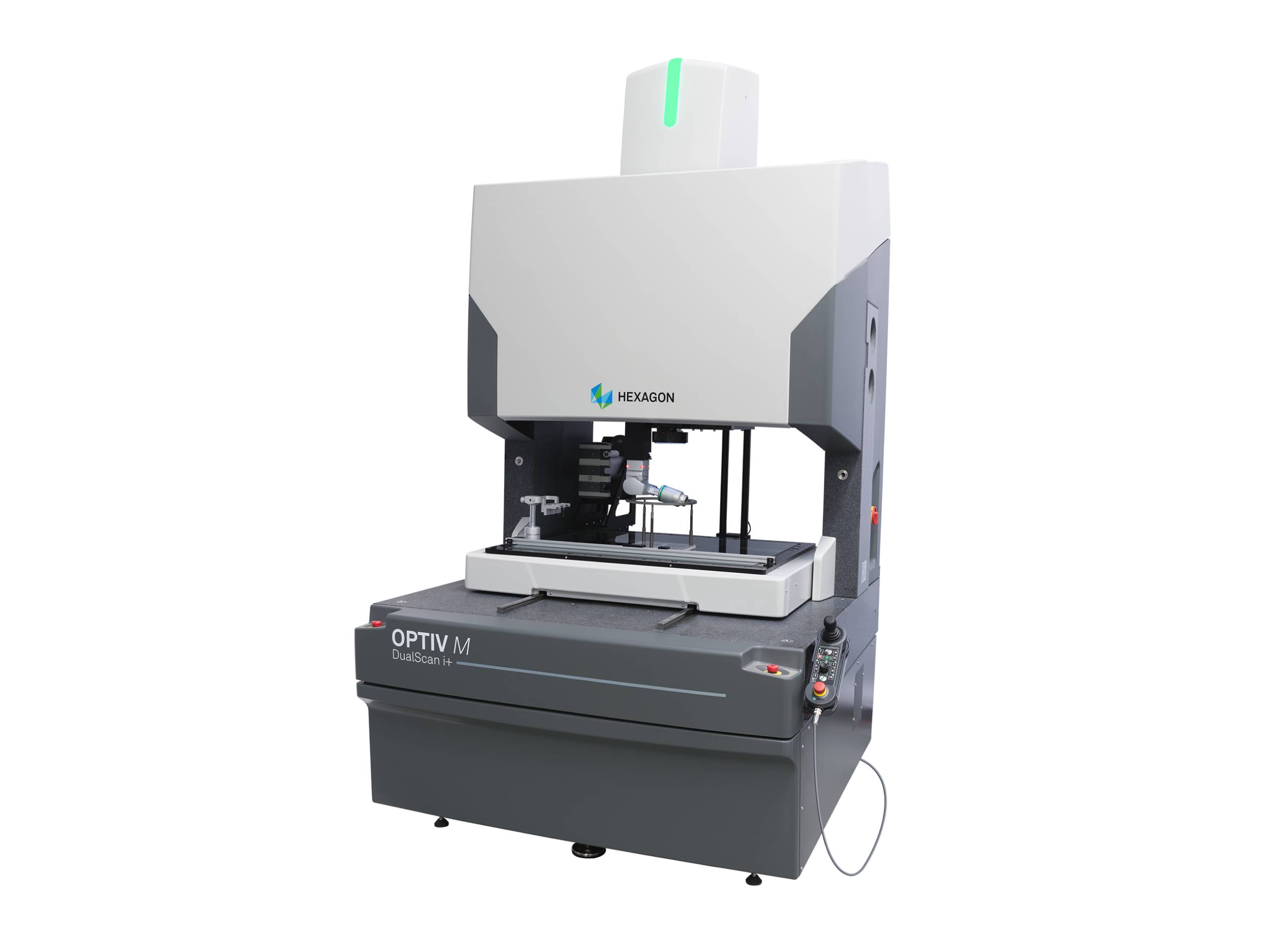

OPTIV M DualScan i+

All-in-one metrology solution with two independent sensor axes

OPTIV M DualScan i+ offers measurement time improvements for an extended range of complex precision parts by deploying automatically exchangeable sensors in conjunction with an indexing probe head. This system guarantees optimum feature accessibility for large or heavy parts that must remain stationary within the measuring volume.

Training and Resources

OPTIV M DualScan i+ Specifications

Available Size (X, Y, Z)	Accuracy	Probe type compatibility	Automation ready
6.6.4	From 2.9 + L / 250) μm, E0,MPE₁	Vision sensor Scanning probe Non-contact sensor (optical sensor)	YES
Temperature specification
18-22 °C

Available Size (X, Y, Z)

Accuracy

Probe type compatibility

Automation ready

6.6.4

From 2.9 + L / 250) μm, E0,MPE₁

Vision sensor

Scanning probe

Non-contact sensor (optical sensor)

YES

Temperature specification

18-22 °C

Available Size (X, Y, Z)
6.6.4
Accuracy
From 2.9 + L / 250) μm, E0,MPE₁
Probe type compatibility
Vision sensor Scanning probe Non-contact sensor (optical sensor)
Automation ready
YES
Temperature specification
18-22 °C

₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
