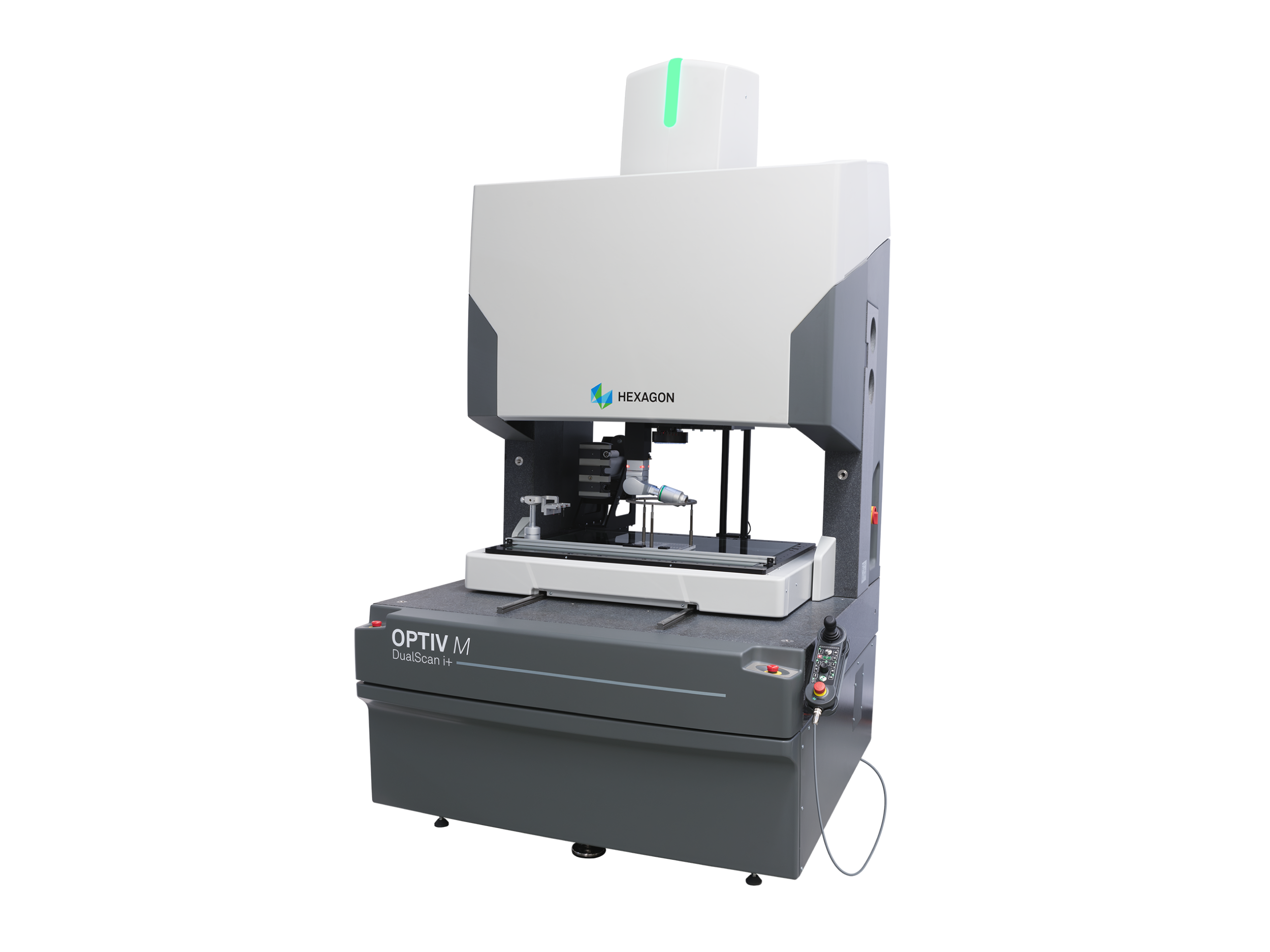

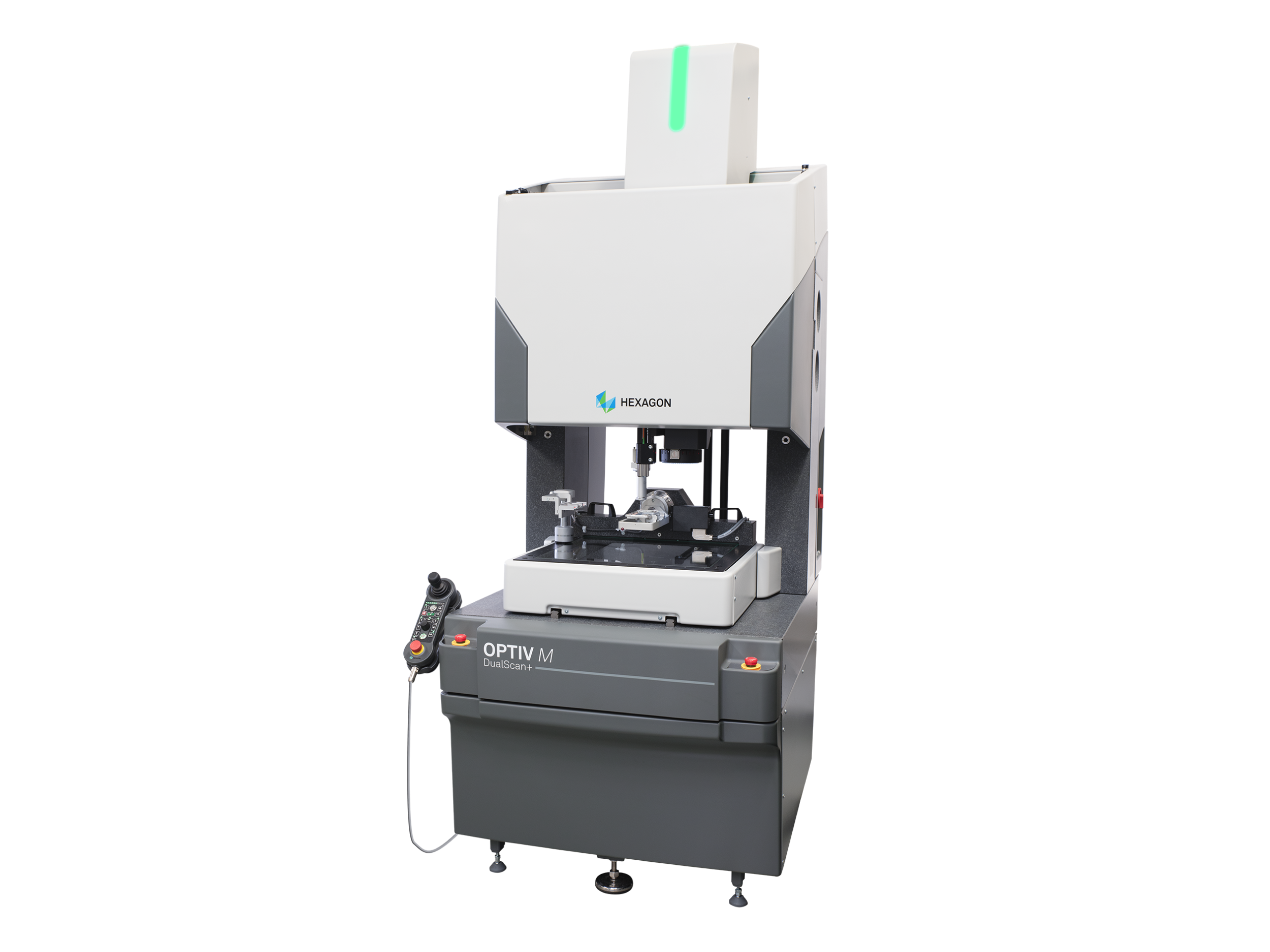

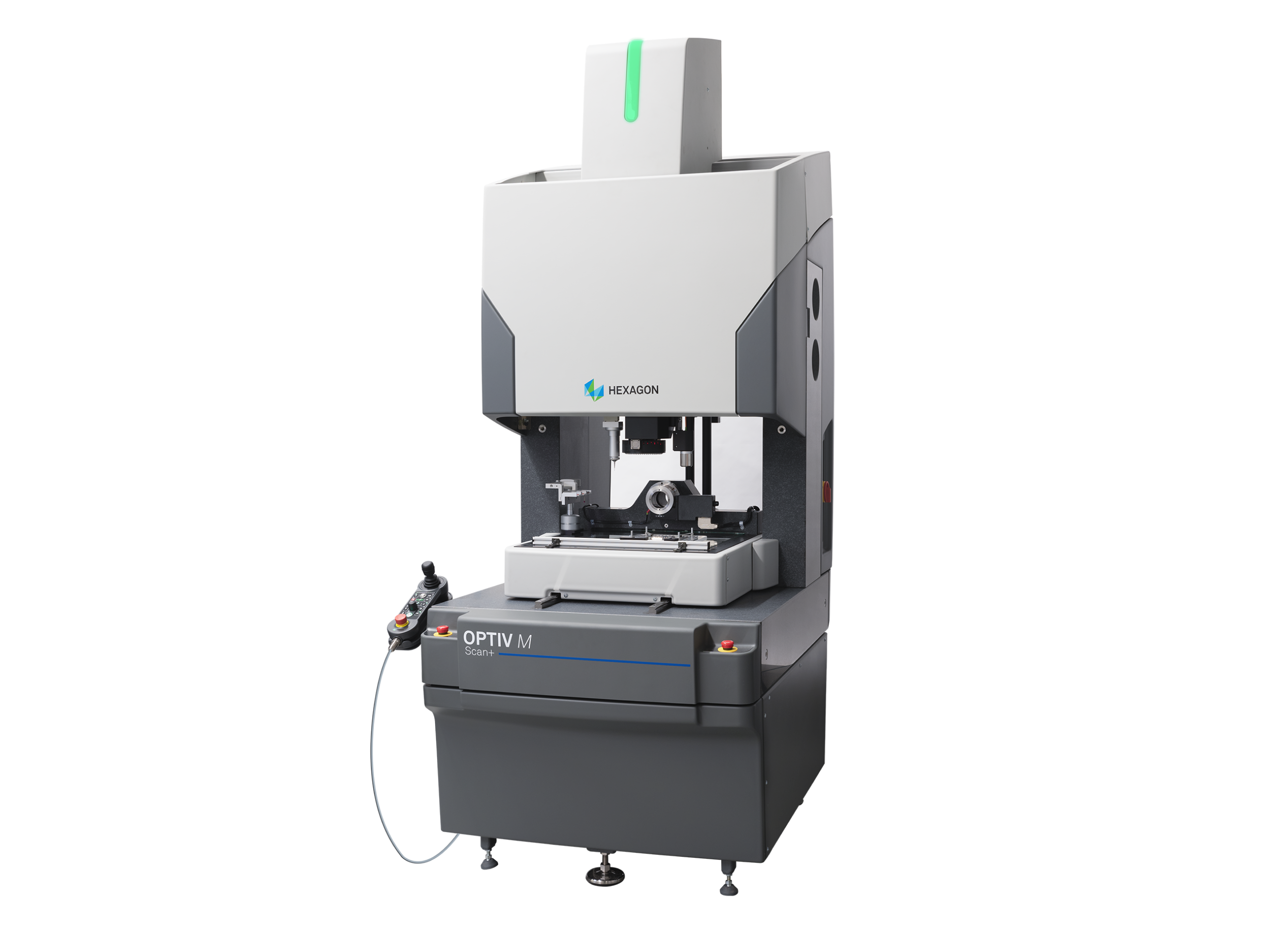

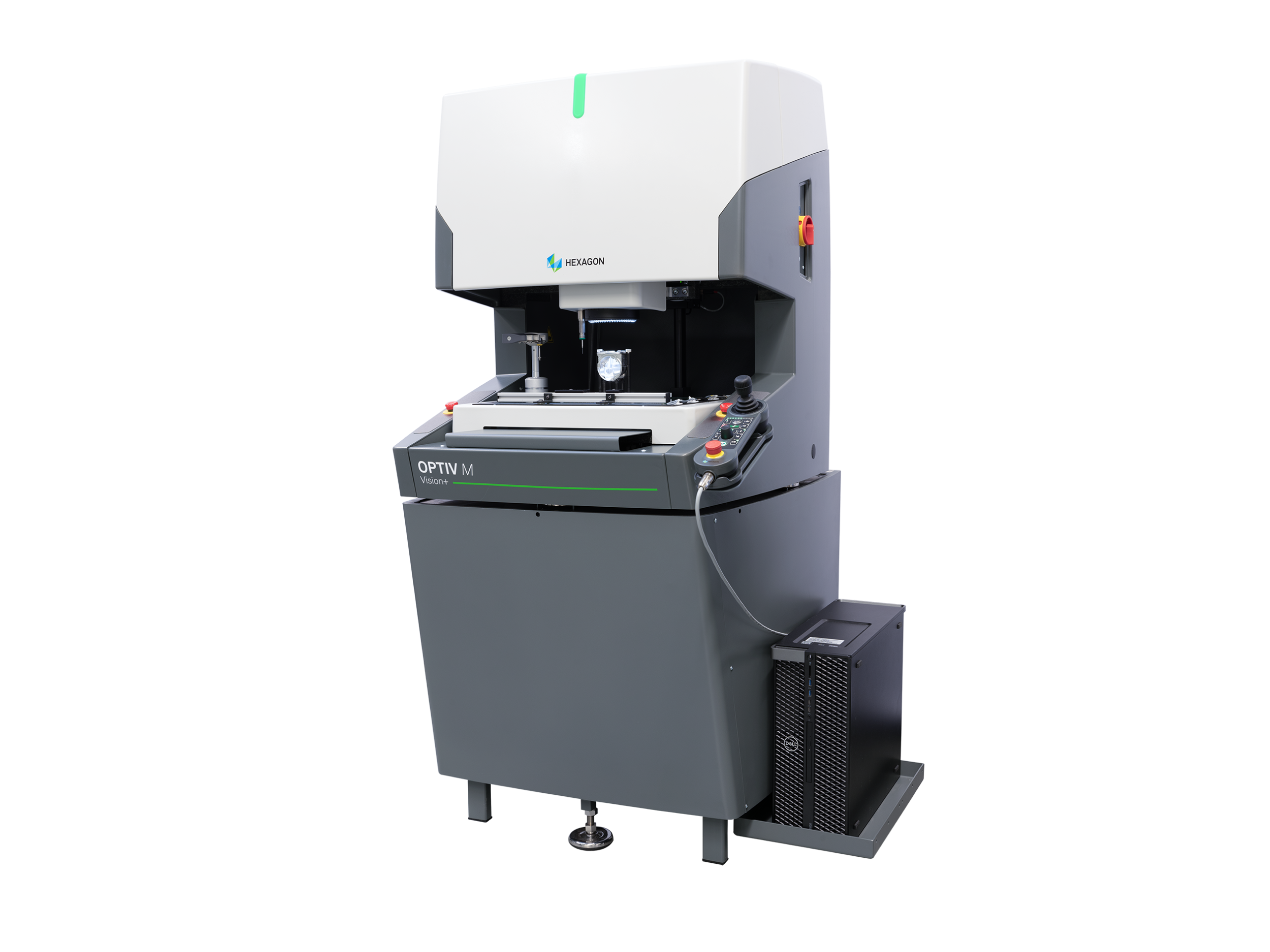

OPTIV M Scan+
The 3D multisensor scanning solution that extends the range of applications to high-resolution form measurements.
Intuitive operability through a simplified operator interface
OPTIV M Scan+ provides an all-in-one solution for the multisensor measurement of geometric size and form features, additionally enabling functional fit inspection of precision parts of any material and surface finish.
- All-in-one metrology solution with additional scanning capabilities – camera sensor + scanning probe + optical white light sensor + CNC rotary table provide increased insight into critical functional features.
- Future-ready modularity allows for easy in-field upgrade of the base system.
01
Non-contact vision sensor
Fastest way to small features and/or soft and sensitive parts.
02
Tactile scanning probe
Fast and accurate measurement of 3D form features and surface profiles.
03
Rotary table or dual rotary
Added ability for single-setup measurements through maximized workpiece accessibility.
04
Optical white light sensor
Added ability for surface independent non-contact measurement of extremely small 3D structures.
OPTIV M Scan+ Specifications
Available Size (X, Y, Z)
3.2.2 / 4.4.3 / 6.6.4
Accuracy
From 1.9 + L / 250) μm, E0,MPE₁
Probe type compatibility
Vision sensor
Chromatic white light sensor (optional)
Automation ready
YES
Temperature specification
18-22 °C
Overall Dimensions (mm) | |||
|---|---|---|---|
Model | LX | LY | LZ |
3.2.2 | 860 | 1025 | 1700 |
4.4.3 | 948 | 1310 | 2277 |
6.6.4 | 1416 | 1734 | 2530 |
₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
