OPTIV Reference
Multisensor CMM for high precision measurements

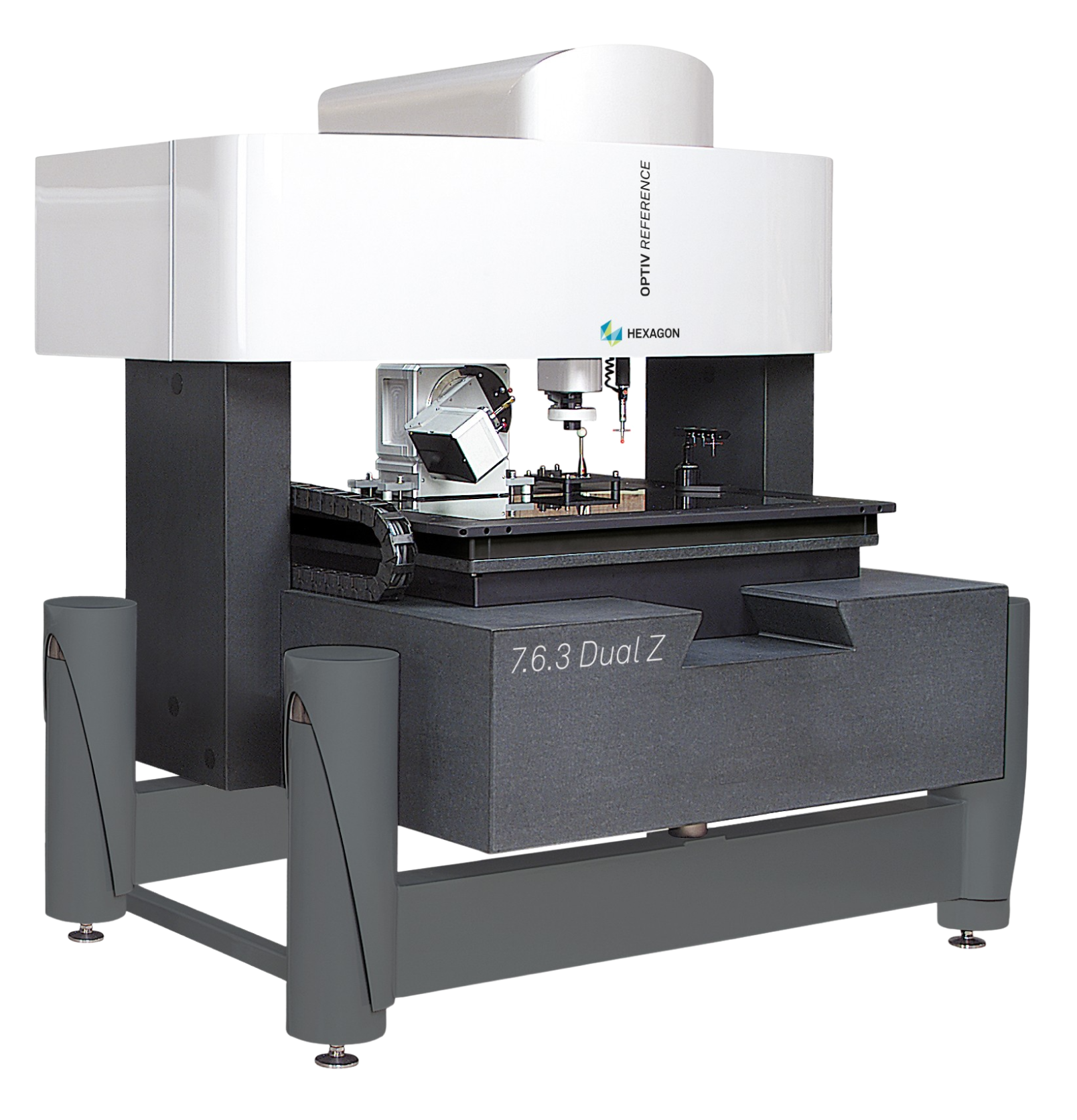

OPTIV Reference high-accuracy CMMs deploy the full capabilities of Hexagon’s OPTIV Dual technology to drive productivity and are the ideal solution for complex, high-precision 3D part measurements.
Perfect for use in measuring labs or high-precision manufacturing environments, the OPTIV Reference is the OPTIV range’s most accurate multisensor CMM, providing measuring accuracies in the sub-micron range.
Training and Resources
OPTIV Reference Specifications
| Available Size (X, Y, Z) | |
|---|---|
05.04.03 / 07.06.03 / 10.10.03 | |
| Accuracy | |
From 0.8 + L / 600) μm, E0,MPE₁ – for optical From 1.3 + L/300) μm, MPEE₁ – for probing | |
| Probe type compatibility | |
Vision sensor Touch trigger probe (optional) Scanning probe (optional) Chromatic white light sensor (optional) | |
| Automation ready | |
YES | |
| Temperature specification | |
20 °C ± 0.8 °C |
₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
