The world’s leading dimensional metrology software package for both stationary and portable metrology systems.

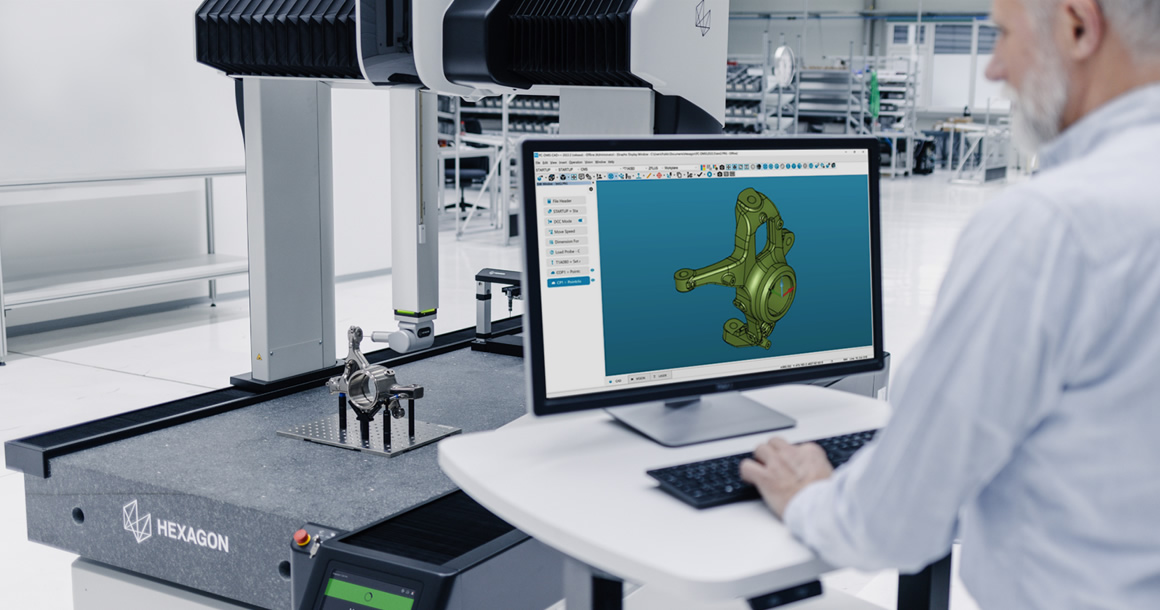

PC-DMIS is a metrology software solution for both metrology professionals and shop-floor operators, used to support systems ranging from CMMs to portable measuring arms and laser trackers.
One universal metrology software for use with any Hexagon device. Programmers and operators experience the same great looking user interface across stationary, portable and vision system CMMs. With only one software to learn there’s no need to invest in a new application for each device.
PC-DMIS’ extensive variety of features and functions allows you to confidently tackle a wide range of applications and inspection challenges.
Software connectivity PC-DMIS can extend and enhance your manufacturing workflows via its integration and connectivity with many complementary software applications in the Hexagon solution ecosystem. Visual Detection Robotic Automation EDGECAM & NC Server Q-DAS & eMMA Metrology Reporting

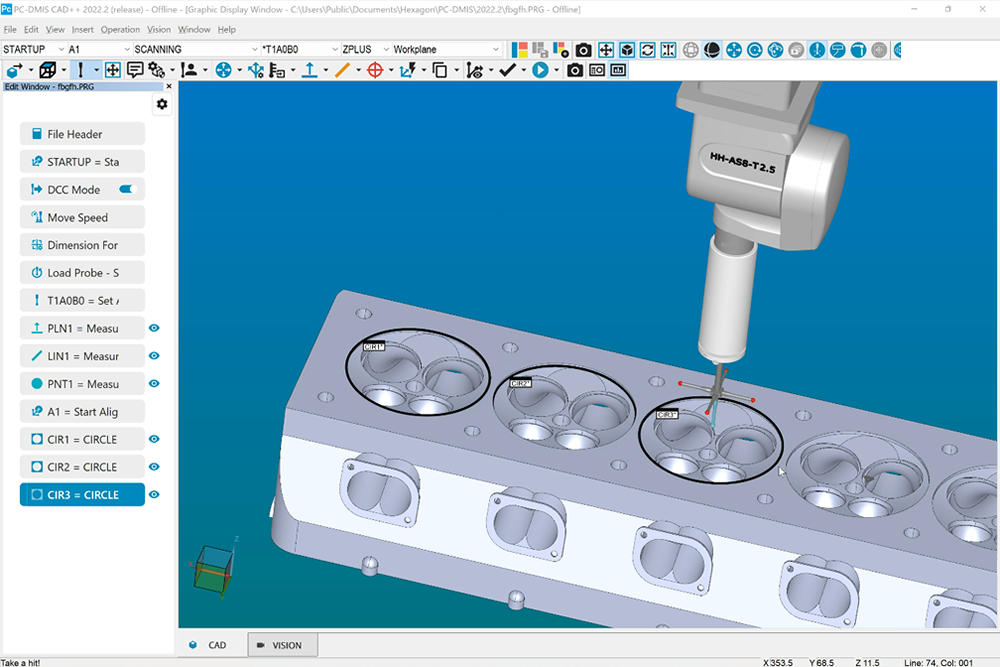

Be more productive - work offline. Create measurement routines away from the CMM in offline mode. Quality routines can be prepared, simulated and perfected using CAD models, CMMs, probe configuration and fixtures in a fully realized virtual environment. When you work offline you can be sure that your valuable CMM machine time is dedicated to measuring parts rather than creating and debugging routines.
As well as meeting the latest ISO and ASME standards, PC-DMIS advances your coordinate measuring machines (CMMs) and metrology systems to support your organization’s productivity and cost-saving objectives.

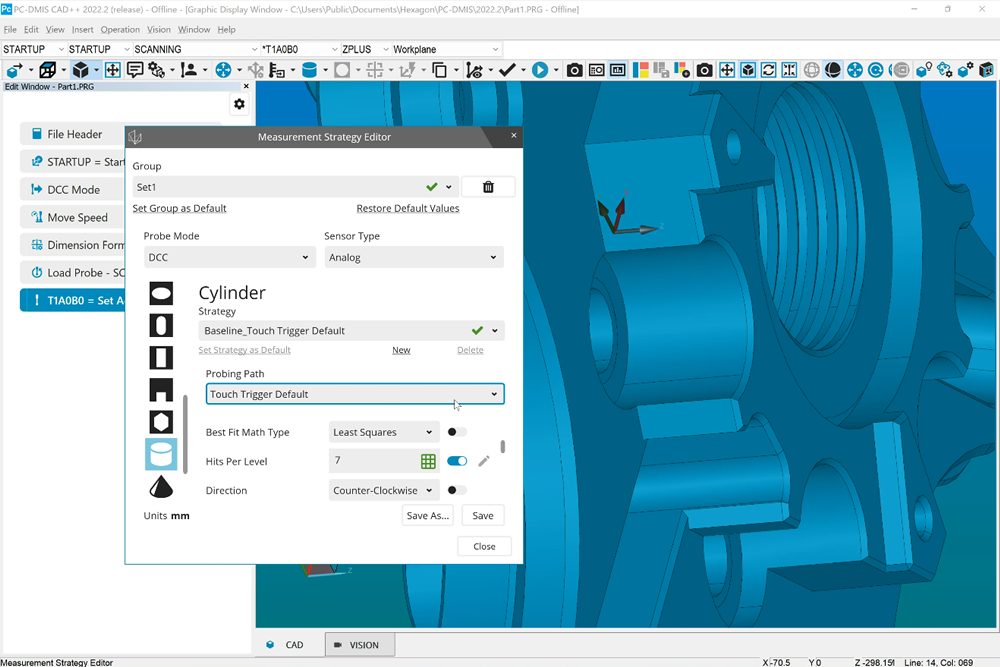

PC-DMIS streamlines metrology processes across a wide range of measurement devices using a variety of sensors, all while consolidating multiple data streams. Features of PC-DMIS include:
Seamlessly import embedded GD&T directly from 3D CAD models and save time by automatically converting models to measurements.
Whether analyzing contoured surface shapes with informative colourmaps or extracting feature shapes for dimensional analysis, PC-DMIS’ rich set of tools ensures information is always presented in a concise and consistent manner for easier analysis and decision making.
The PC-DMIS Protect feature ensures reliable and consistent quality, with group-level protected control of inspection editing and tracking of authorized modifications. This prevents an operator-level user from making edits to a routine. For example, if this were for a medical device, the routine may have already been approved by a standards authority and therefore no further edits should be made.
PC-DMIS can work alongside any statistical process control (SPC) software, to maximize the efficiency of processes and reduce scrap.

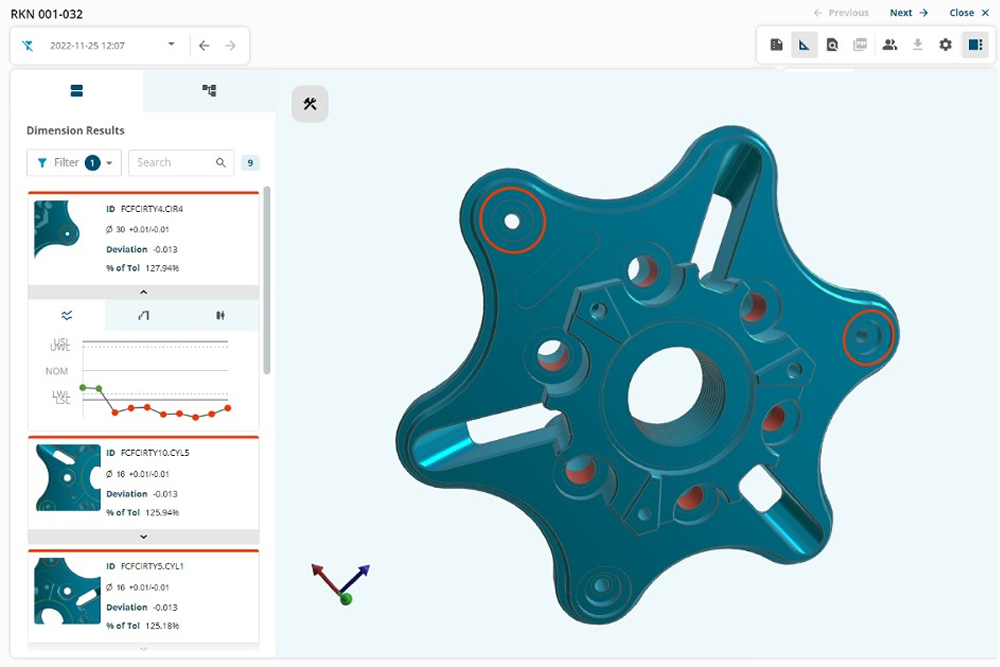

Cloud-based analytics through Metrology Reporting app, designed to centralize reporting functionality, making it accessible for all PC-DMIS and QUINDOS users on one single, scalable platform
Q-DAS Statistical process control software monitors process stability based on measurement data and instructs PC-DMIS to either run a full routine or a mini-routine. It requires no human intervention.
Real-time routine execution status monitoring and CMM health check via Metrology Asset Management.
Real-time routine execution status monitoring via Metrology Asset Manager.
PC-DMIS is integrated with Visual Detection - an automated surface inspection application capable of detecting defects across a wide range of materials It uses artificial intelligence to quickly learn from sample images in order to identify production defects.
