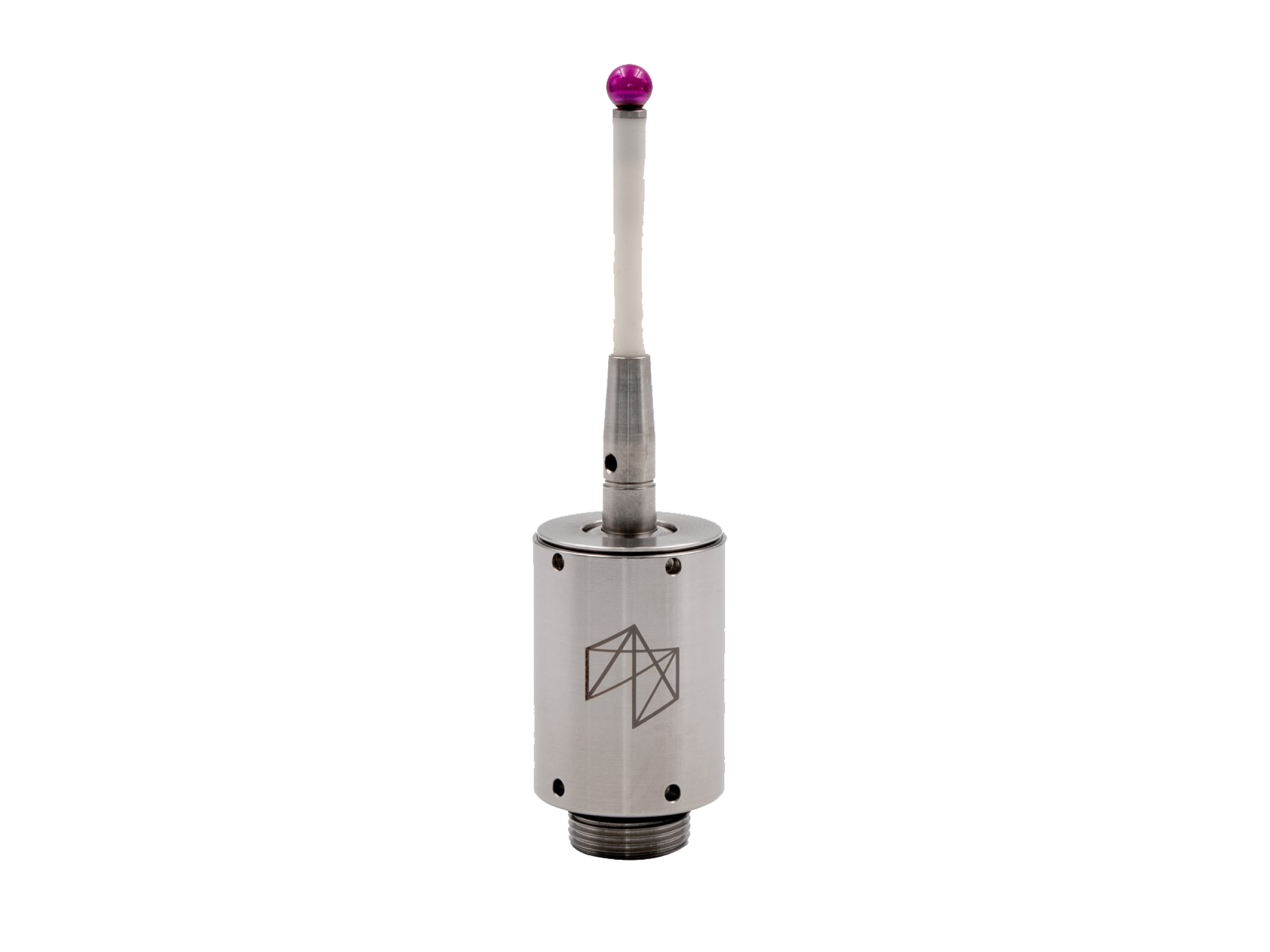

Production Probe m&H PP41.00
The probe is fully compatible with other systems available on the market because of its M16x1 connection thread and small dimensions.
A robust and compatible, true alternative
The production probe PP41.00 fits many application possibilities on tool grinding machines, cylindrical grinding machines, rotary transfer machines, and special measuring tasks.
Application:
- Determination of workpiece zero point
- Determination of workpiece tolerances
- Control measurement of workpiece dimensions
Benefits:
- High-precision measuring unit
- Operation suitable for the workshop
- Sturdy and protected
Production Probe m&H PP41.00 Specifications
Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus and 480 mm/min
Triggering force
X/Y = 0,3 - 1,4 N (Factory settings = 1 N)
Z = 2,5 - 12,5 N(Factory settings = 8,5 N)
Temperature range
Operation: 10° C – 50° C
Storage: 5° C – 70° C
Power supply
1 x 9 V battery block 6LR61,
Lithium: 1200 mAh
Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Infrared and Radio-wave
