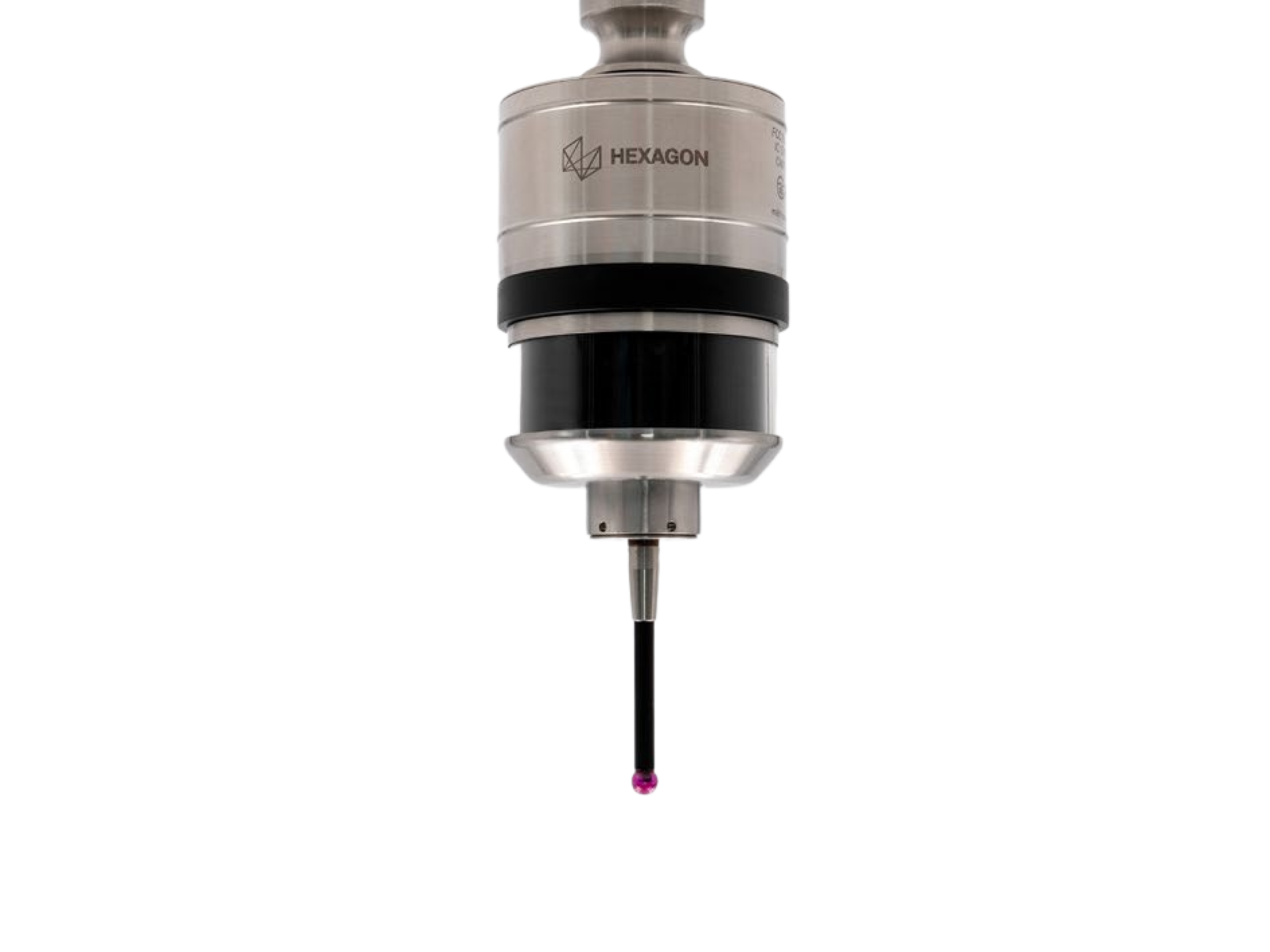

Radio probe m&h TP-R-400
The m&h TP-R-400 radio probe is characterized by versatility thanks to its modular and user-friendly design.
Versatile and compact radio probe with unique handling
Despite its compact size, a wide range of different measuring units, diverse extensions and styli configurations can be used to maximize flexibility and efficiency. This means the m&h TP-R-400 can be optimally adapted to future requirements and applications on the machine tool.

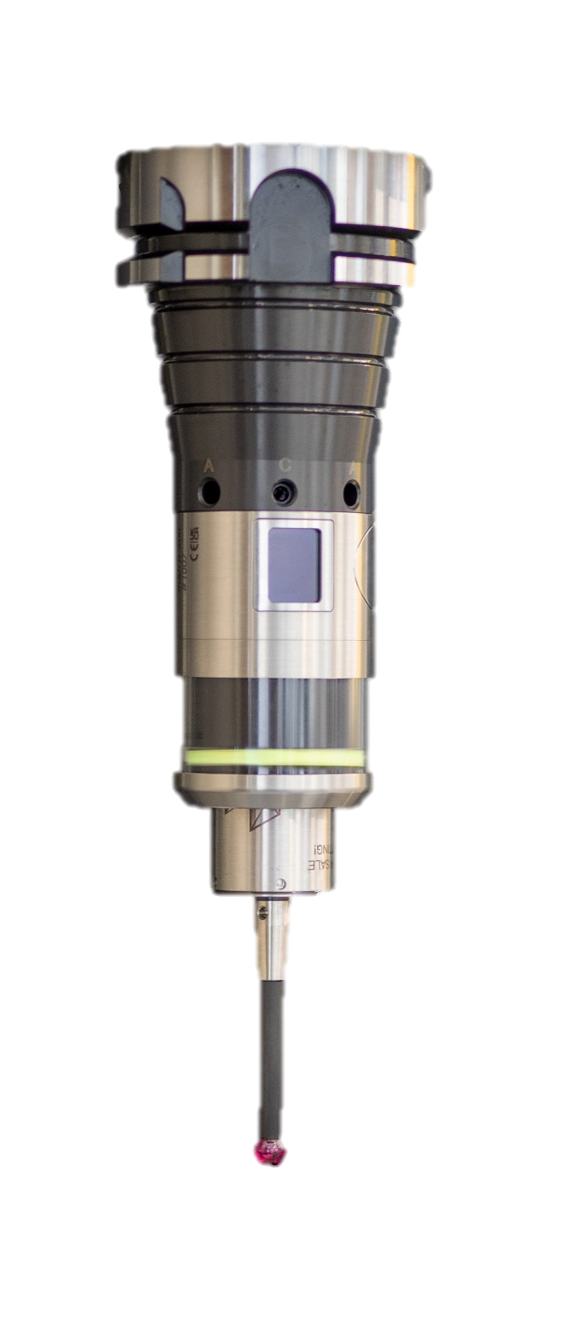

The probe was designed for ideal use in a modern production environment. Equipped with an all-round illumination ring, unique handling and a display on the probe, configuration changes and status checks of the probe have never been easier. Additionally, equipped with a separate base plate, the TP-R-400 can even be converted into a tool-setter.
Leveraging AFS technology, the m&h TP-R-400 delivers transmission free of interference signals, offering the utmost reliability and efficiency.
Radio probe m&h TP-R-400 Specifications
Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min
Triggering force
PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N
MY21.00 – XY = 1 N; Z = 6 N
Temperature range
Operation: 10° to 50°C
Storage: -20° to 70°C
Power supply
2x battery (3,6 V / ½AA)
Protection class
IP68: EN60529
Signal transmission
Radio-wave (up-to 18m)
