RS5 Laser Scanner

Complete efficient, high-speed 3D scanning on numerous surfaces with a removable 3D scanner for the Absolute Arm 7-Axis.

harware-info-image

Reliable, high-quality 3D laser scanning

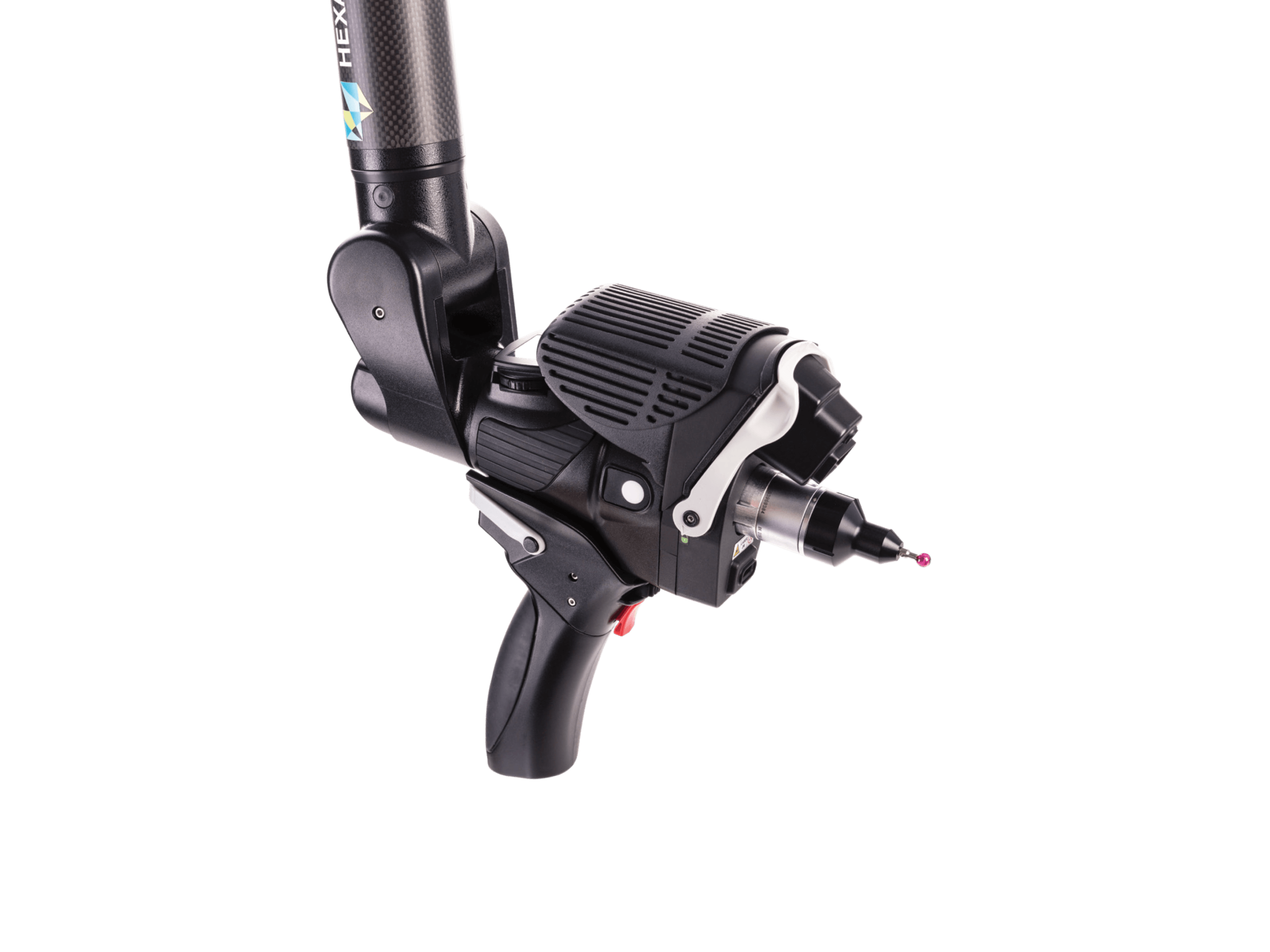

The RS5 Laser Scanner is a removable 3D scanner designed for use with the Absolute Arm 7-Axis. It delivers high-speed 3D scanning for surfaces and features on a wide range of finishes and materials without the larger investment demanded by our flagship Absolute Scanner AS1. The RS5 boasts a wide and horizontally-oriented laser scan line and fully-automatic exposure settings, making general purpose scanning functionality simple to apply whatever your application.

benefits

Scan line

Light movement

Configurable wrist

User feedback

Incredibly versatile and capable

This high-performance 3D scanner is straight-forward to operate, incredibly versatile and capable of delivering accurate and reliable measurement data quickly.

RS5 Laser Scanner Specifications

Scanner accuracy

0.028 mm (2σ)​

Max. point acquisition​

752 000 points/sec​

Min. point spacing​

0.011 mm

Scanning frequency​

100 Hz​

Laser line width​

115 mm (at mid-field)​

Stand-off​

165 +/- 50 mm

Protection class​

-​

Automated exposure​

Automatic per line​
