TIGO SF

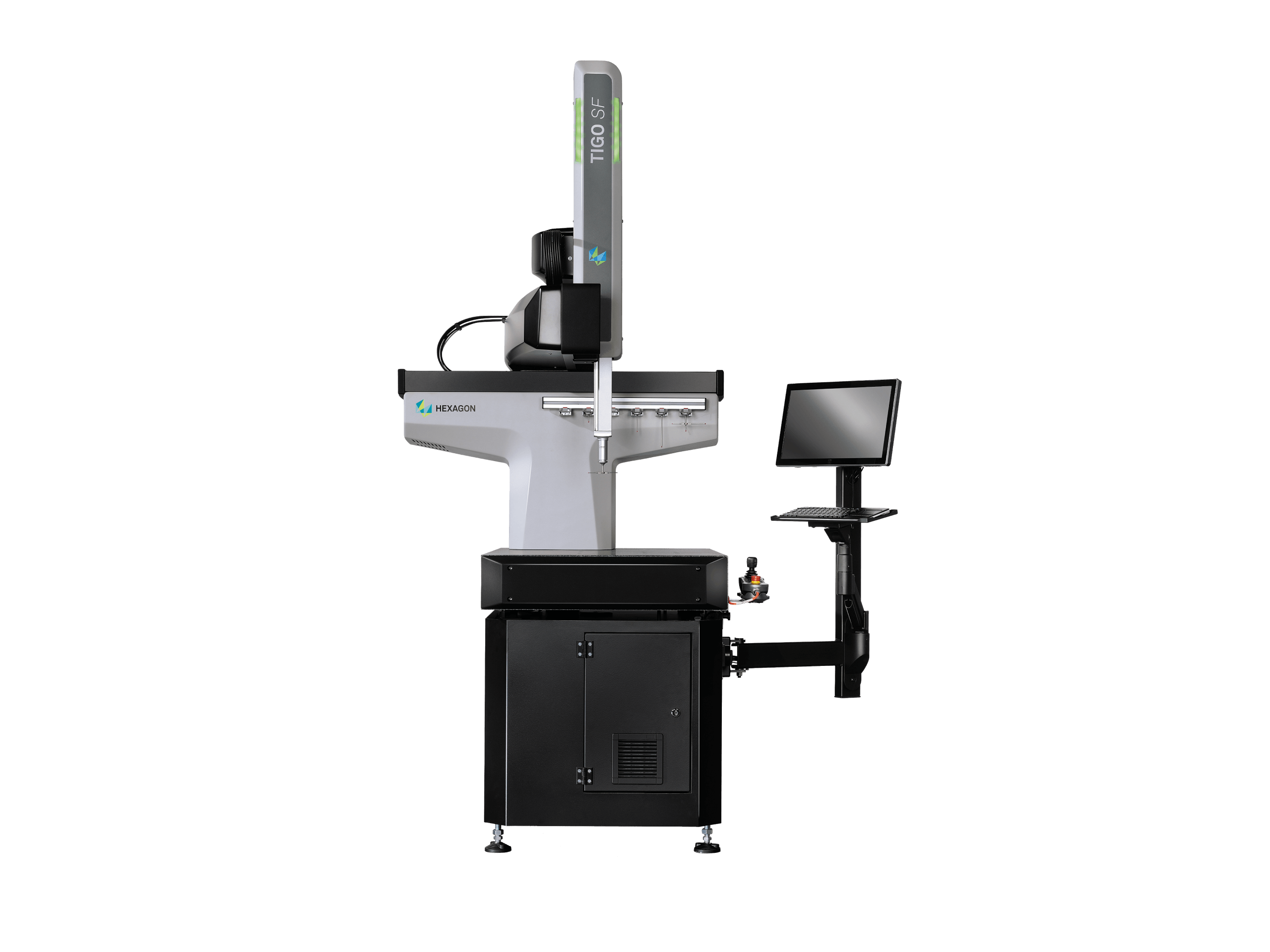

TIGO SF is an accurate and compact CMM specifically designed for use on the shop floor.
Take Your Production to a New Level with the TIGO SF
Developed for the shop-floor, the TIGO SF is a fully-protected and versatile coordinate measuring machine (CMM) that combines robust construction, innovative technology and flexibility of setup to ensure high-accuracy measurement in the harshest of environments.
01
Open access measuring volume
Easy loading and unloading of workpieces thanks to the full accessibility offered by the TIGO SF’s three open sides.
02
Compact size
The PC, controller and peripherals including the screen and the keyboard are all mounted to the same base to ensure minimal footprint for easy placement onto the shop floor or production line.
03
Linear guideways
All axes on the TIGO SF work on a linear guideway system with no air required, reducing the risk from production contaminants and making installation and relocation simpler.
04
XT option
Optional XT upgrade enables accurate and reliable measurement in an expanded temperature range of 15 °C to 40 °C, and can be applied to all new TIGO SF CMMs or to existing machine installations as a retrofit.
05
Messaging lights
LED status indicator lights are mounted on the Z-axis cover to allow at-a-glance assessment of the machine and program status from across the factory floor.
TIGO SF Specifications
Available size (X, Y, Z)
05.06.05
Accuracy₂
2.2μm + L/300, MPE(E0/E150)₁) [18-22 °C]
2.5μm + L/250, MPE(E0/E150)₁) [16-26 °C]
2.7μm + L/200, MPE(E0/E150)₁) [15-30 °C]
3.7μm + L/80, MPE(E0/E150)₁) [15-40 °C], XT option
Probe type compatibility
Touch trigger probe
Scanning probe
Automation ready
YES
Temperature specification
18-22 °C (T1)
16-26 °C (T2)
15-30 °C (T3)
15-40 °C (T4), XT option
Overall Dimensions (mm) | |||
|---|---|---|---|
Model | LX | LY | LZ |
TIGO SF | 1110 + 867 (incl. touch screen) | 1266 | 2414 |
₁ MPE(E0/E60) specifications are to be formally understood as MPE(E0/E60)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm
₂ According to ISO 10360-2 (2009)
