TubeInspect
Quickly measure bent tubes and wires using TubeInspect’s efficient and resilient all-in-one turnkey measurement cell.
Automated tube inspection in high-resolution

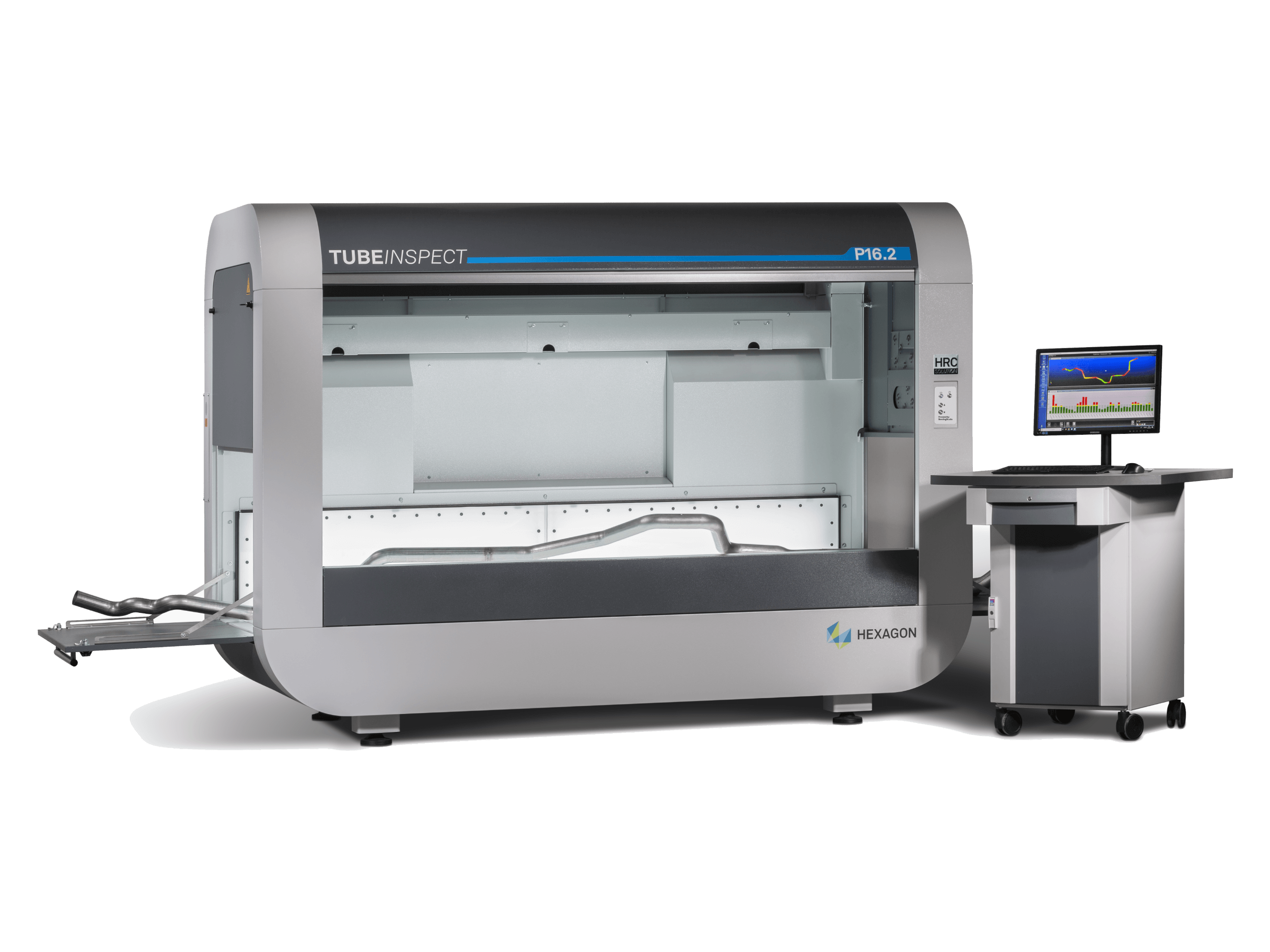

TubeInspect is an all-in-one turnkey measurement cell specially developed for the efficient quality control of bent tubes and wires.
Powered by an array of high-quality cameras that deliver unmatched optical scanning functionality, TubeInspect is all about making tube measurement as fast as possible without compromising on data quality and accuracy. Powered by the leading BendingStudio XT software platform, a TubeInspect system can become the central hub for controlling and analysing the entire tube production process.
TubeInspect Specifications
Measurement technology
High-resolution camera array
Measurable tube / rectangular diameter
From 0.8 – 200 mm (tube)
From 2 – 200 mm (rectangular)
Max. tube length
Unlimited (with repositioning)
Bending angle
1 - 340°
Min. straight between bends
Bend-in-bend and freeform possible
Measurement accuracy
From 0.035 mm (1σ)
Model
P8.2 | P8.2 HRC | P16.2 | P16.2 HRC
