Import and export data with minimal interference from major industrial CT systems using .bmp, .jpg, .jp2, .raw, .tif, DICOM, and DICONDE formats.
Rapidly incorporate other metrology projects created in VGSTUDIO MAX or VGMETROLOGY for total data coverage and project clarification.

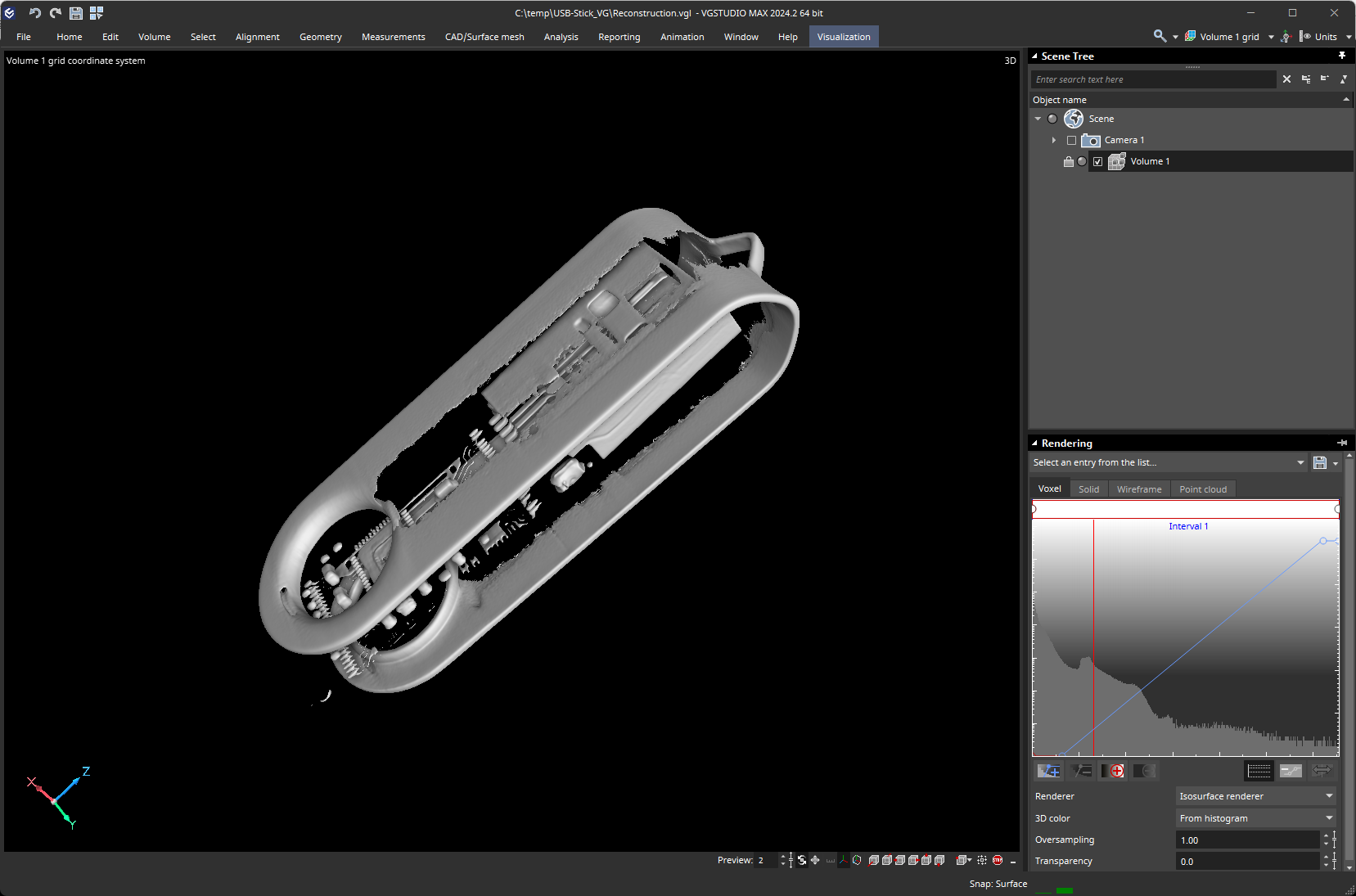

Visualization of CT data made simple

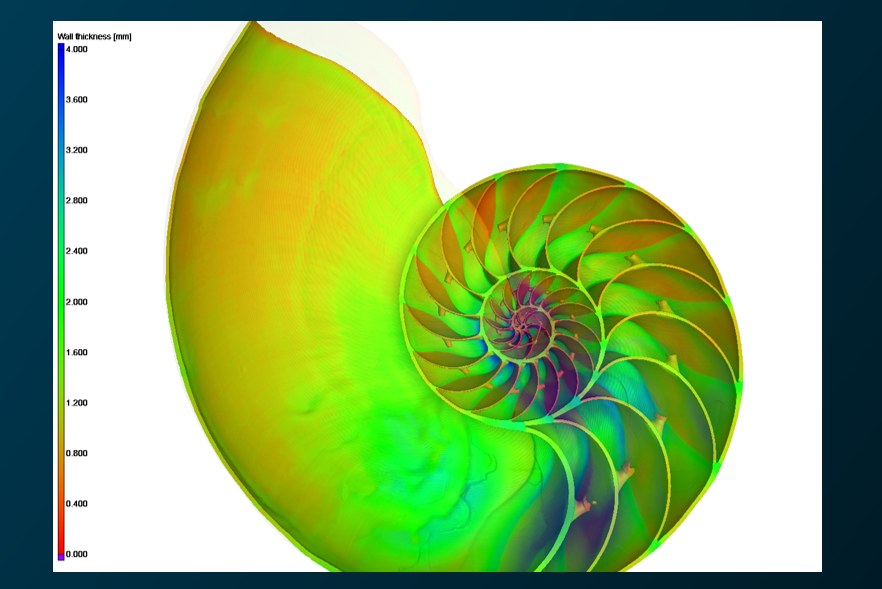

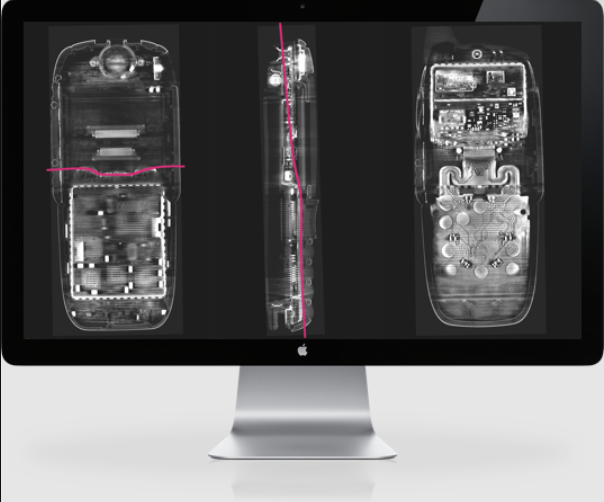

VGSTUDIO is the ideal choice for visual quality inspection in industrial applications, e.g., in the electronics industry, but also for the visualization of data in fields of academic research such as archaeology, geology, and life sciences.
Reconstruct, visualize, animate, and report whenever you need to.
VGSTUDIO covers the entire workflow, from the precise reconstruction of three-dimensional volume data sets using the images taken by your CT scanner to visualization (in 3D and 2D) and the creation of impressive animations.
01
Improved ROI rendering setting options
Enjoy better automation scenarios, with the toggle macro step now distinctively separated into two clear steps: “Enable ROI rendering” and “Disable ROI rendering.”
02

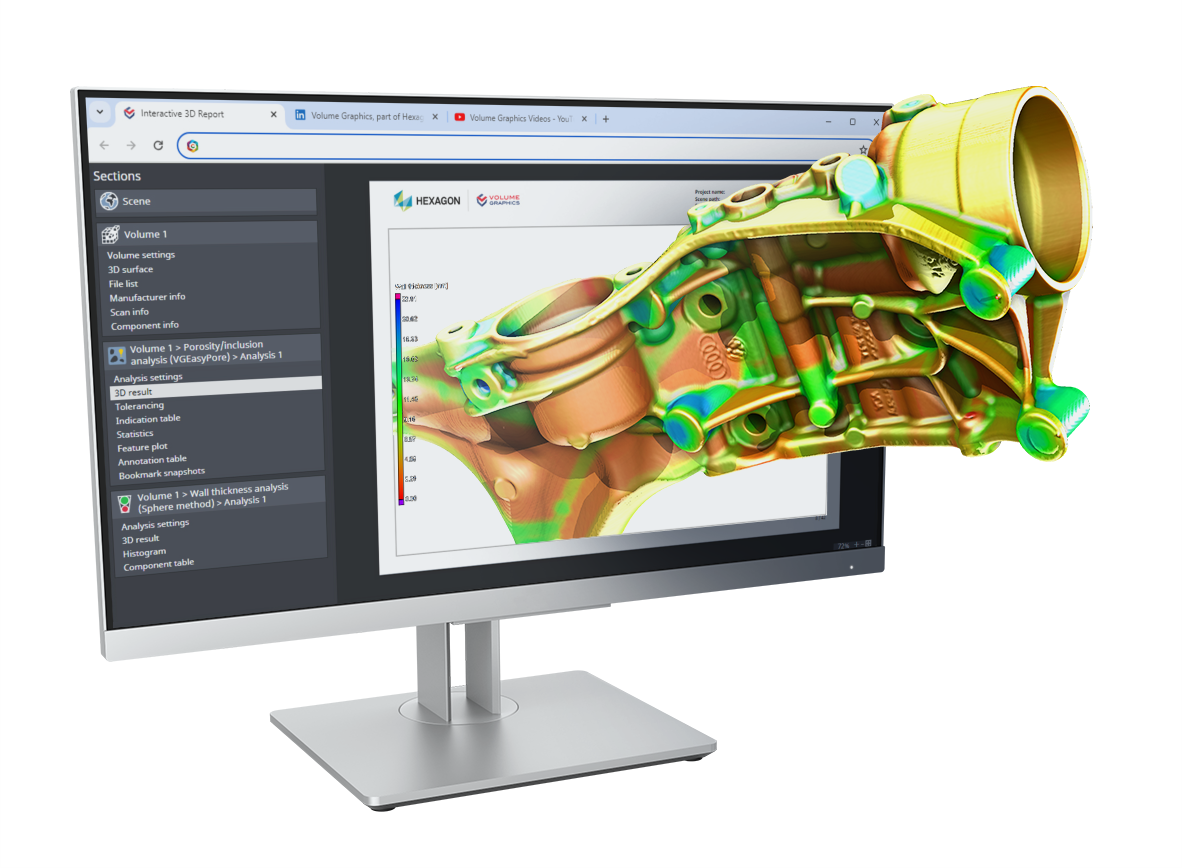

Color bar for 3D results in reports
This dynamic feature utilizes the color bar settings configured directly in the analyses, offering an enriched context to interpret results in your reports.
03
Color-code table cells in reports according to their tolerance state
You can now opt to color-code individual cells based on their tolerance status.
04
Hide info field names in reports
You can choose to hide the title of any info field in your report, allowing for seamless integration with any personalized text and more succinct report pages.
05
Invalidation of bookmark images on analysis changes
Bookmark images are now tagged with an “out-of-sync” status if analysis results change.
06
Rename objects using metainformation
You can now rename objects using one of their metainformation fields. Ideal for use in macros, this function can transfer text read from an object via OCR to its name in automation scenarios.
07
Improved selection of scene objects
You can now select, add or remove objects directly in the 3D window — WYSIWYG.
