Parameters of Road Generator in Road Builder for curvature section

jozef.bucha
Hello,

can someone explain how parameters in Road Generator in Road Builder for curvature section works?

Specifically Start Point, Center Point and Tangent Point.

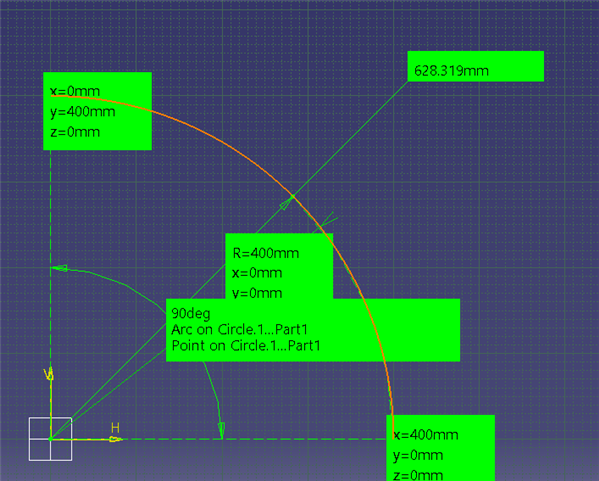

For example i want create oval road and one part as quater circle. My theory was something like this should works (only in meters)
CNEXT_1L92ZvT64d

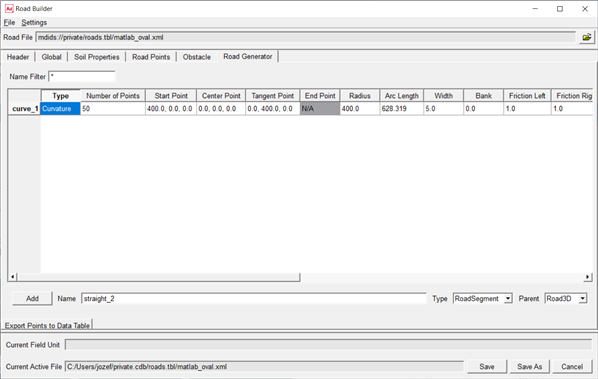

Parameters of first segment:
aview_3c9B9Nwa8O

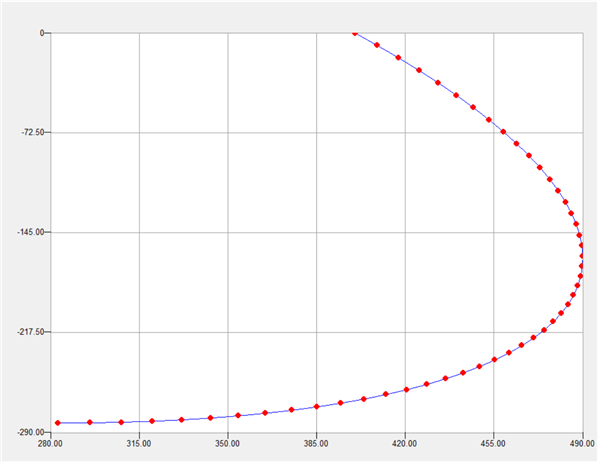

but generated points look like this:
aview_lJvysvWh5E
Thanks in advance

Jozef
Parents
  • 0
    Hi Alexis,

    I was checking this in help file. But i do not get it perfectly

    According Help:

    Segment 1 is line Starting Point: -3300,400,0, End Point 0,400,0.
    Segment 2 is curve Starting Point 0,400. (Same as end of Segment 1), Center Point 0,0,0 (Center of circle arc i believe), Radius 400 (Radius of circle arc), Arc Length 125 (half of circle PI*400 = 1256

    but what is Tangent Point (-500,400,0)? The value in help is putting Tangent Point to Line on Segment 1.

    Segment 3 is line Starting Point: 0,-400,0, End Point -3300,400,0.

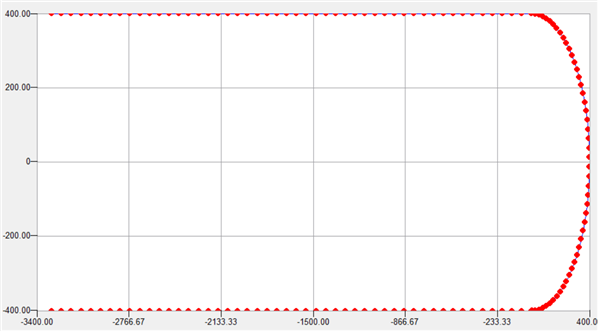

    aview_CyM0AdZ2Ix
    At least i will be able to create oval using segments.

    Jozef
Reply
  • 0
    Hi Alexis,

    I was checking this in help file. But i do not get it perfectly

    According Help:

    Segment 1 is line Starting Point: -3300,400,0, End Point 0,400,0.
    Segment 2 is curve Starting Point 0,400. (Same as end of Segment 1), Center Point 0,0,0 (Center of circle arc i believe), Radius 400 (Radius of circle arc), Arc Length 125 (half of circle PI*400 = 1256

    but what is Tangent Point (-500,400,0)? The value in help is putting Tangent Point to Line on Segment 1.

    Segment 3 is line Starting Point: 0,-400,0, End Point -3300,400,0.

    aview_CyM0AdZ2Ix
    At least i will be able to create oval using segments.

    Jozef
