Replacing existing solid with new one by keeping current relations and constraints as it is, how to do it?

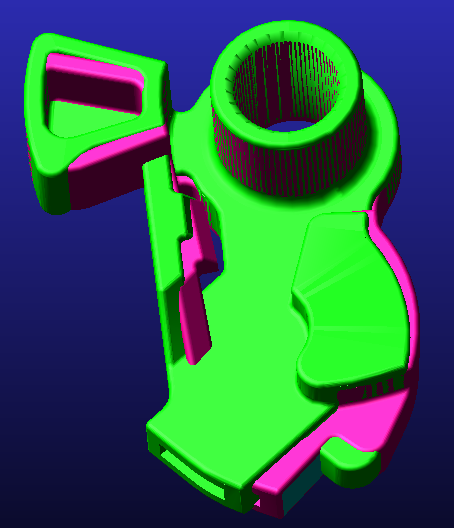

I have a part in adams say part_1 with solid355( magenta color) which has contact and other dependencies, now designer has made some modifications in part (green color), I want to import green part and replace with magenta but dependencies should not be lost, How to perform it. cause to delete old one and import new one again and create dependencies like contact or joint it is time consuming. Please help

0 vinod.sherekar over 4 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Henrik.Skovbjerg over 4 years ago
You obviously import the new geometry onto the same part as the old geometry (right?), so joints should not be a problem, since these are on the PART and not the GEOMETRY.

For contacts, if you only have a few contacts, import the new geometry, modify each contact and afterwards, delete the old geometry.

If you have many contacts, the easiest would probably be to do this:

Import the new geometry to the same part

Export a cmd-file with the new model setup

Edit the cmd-file, search for the old geometry (full name), and in each contact instance replace with the new geometry name

Import the modified cmd-file and delete the old geometry
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Maziar R over 4 years ago

Adding to @Henrik Skovbjerg 's very helpful note, you can perhaps make use of Tools > Table Editor to update the contacts in a more automated way.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 vinod.sherekar over 4 years ago

Thanks both of you
