Finding expression AX(x,x)

Question

I needed to rotate part of my model by 90 deg. Luckily, i did build this part around 1 ref point, so by rotating that point the whole part rotated by 90 deg.

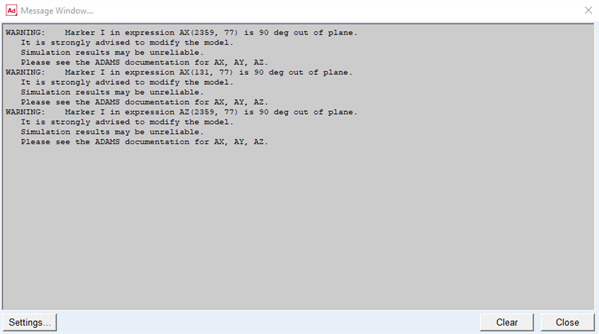

Now i am getting the following warning , which says some markers are 90 deg out of plane. How, can i find and debug this 'Marker I in expression AX(2359, 77)' ?

I could not find it in the ADAMS documentation.

Thanks in advance!

Jesper Slattengren · Accepted Answer

Easiest is to export the adm file, open in a text editor and search for 'MARKER/1259', 'MARKER/77' and 'AX2359, 77)' respectively. THen you can see what the View names are for those markers and what they belong to.
