Is it possible to use Ftire durcing suspension analysis in adams car ?

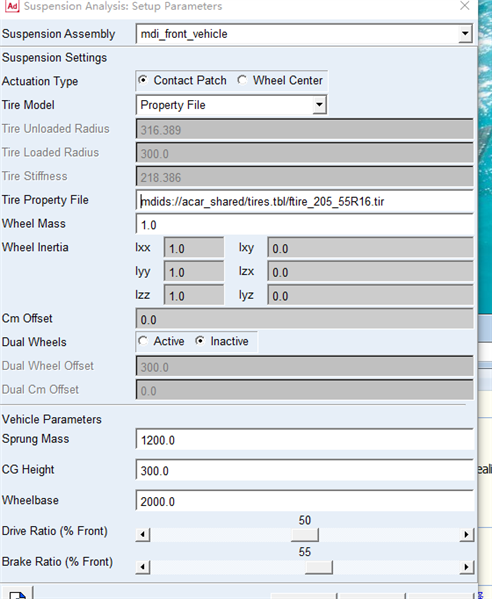

I want to use Ftire during suspension analysis. Even if we can change Tire Model to Property File, but not "real Ftire", only the vertical stffness effect from ftire property file was considered.

So, is there a way to realize "Ftire in suspension analysis in adams car"?

0 Alexis Del Rio over 2 years ago

Hi,

Out of curiosity. In what way do you think having a tire property file on the testrig will be better than defining the properties indicated in the GUI? In other words what type of test are you going to run that you require the tyre property file?

Thanks,

Alexis
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 zhenhui xu over 2 years ago

Hi . Alexis,

We need get the tire deformation during movement to build wheel envelope. Normally, wheel envelope based on rigid tire like adams .wev

Ftire can save wheel envelope as .shl after simulation directly, moreover its very important that it can represent tire deformation during movement, so that we dont need to spend time to build coarse FE in other software anymore.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Alexis Del Rio over 2 years ago

Hi Xu,

The way I see it you may need to modify the testrig to accept actual FTire models or submit an enhancement request ticket. If you have sufficient knowledge the first option may be the fastest.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Micha over 2 years ago

Xu,

I admit I should know for sure but I don't.. anyway, I *think* Adams is calling FTire during steady-state suspension analysis only in *statics* mode. *If* so (MSC support will know more): FTire statics mode is highly simplified and does *not* provide wheel envelope etc. You'll need to run an equivalent Adams time domain simulation, or use cosin/tools.
