Model tree issue in ADAMS/View 2023.4

jpatterson over 1 year ago

ADAMS/View 2023.4

Windows 10

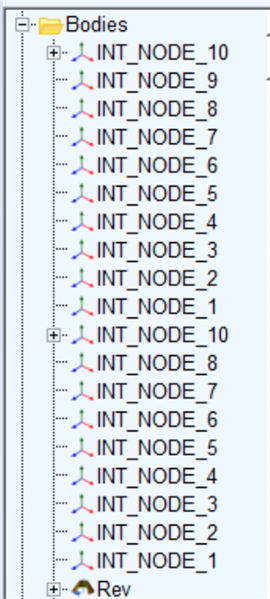

Anybody else seeing this behavior in the model tree? Under "Bodies" I get a list of the children of the bodies, but no bodies themselves...

If I exit and reopen all is well (for a while).

0 Rishikesh Mokashi over 1 year ago

Hi,

Is this with every model or just one model and are you using a BIN model? Could you please try with CMD model and check if you see this issue?

Regards,

Rishi
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jpatterson over 1 year ago

Hi Rishi,

I am using the .bin format to save the files, but I do on occasion write them out as .cmd just to have an ASCII copy. I can't say for sure if I've seen this problem after opening a model from a .cmd. I'm also puzzled how it would matter once the model is open in A/view?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Rishikesh Mokashi over 1 year ago

Hi James,

The likely cause I can think of is due to corruption of BIN file. The corrupted BIN file can cause performance issues.

You can try recreating BIN model from the CMD (you can also include RES). Then check if you see similar issue with this new BIN model.

Regards,

Rishi
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 jpatterson over 1 year ago

I'll give it a try...
