Trouble w/Bevel Edge on a Plank 3D Road

jpatterson over 1 year ago

Trying to get a smaller bevel on a plank 3d road.

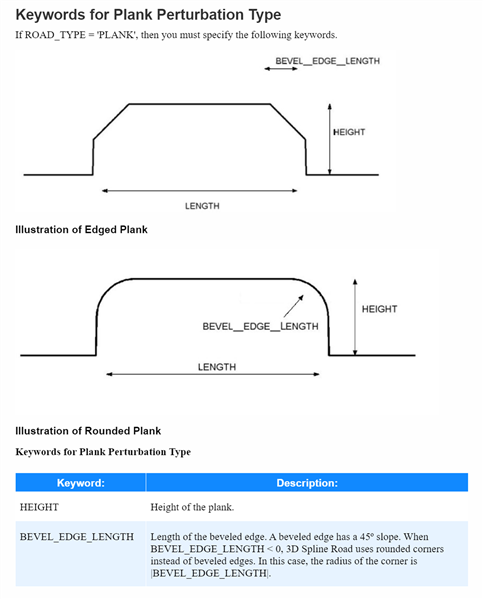

This is what I see in the help, and what I want...

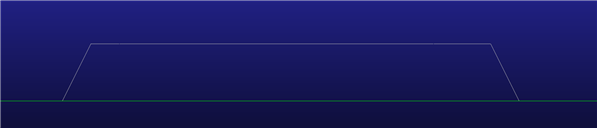

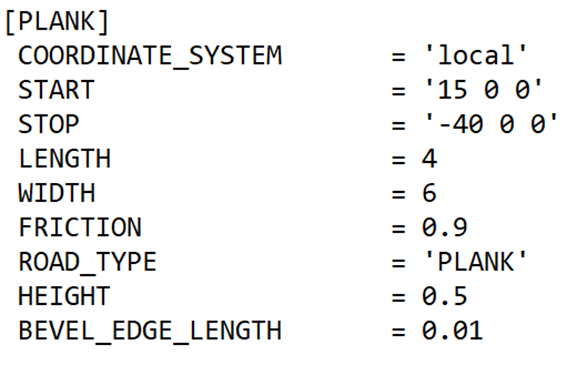

Here are my settings in the rdf file (units are meters), and what I'm getting...

What am I missing?

0 jpatterson over 1 year ago

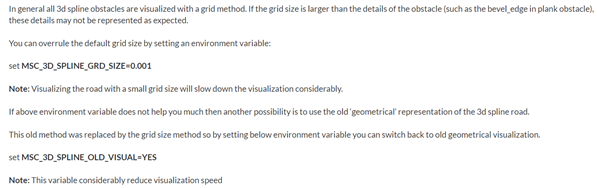

OK, so I guess I didn't search well enough to find this...

The new size of 0.001. Is that units dependent? What is the default I'm changing it from?
