Forces and moments in Coupler

e-ondrej.petergac 10 months ago

Hello,

is there any function with which I can measure the forces and moments in COUPLER? Similar to JOINT or MOTION functions?

Thanks,

Ondrej

0 Henrik.Skovbjerg 10 months ago

If I remember correctly, you should use the JOINT() function and measure on the joint the direction constrained by the coupler. Did you try this?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 e-ondrej.petergac 10 months ago

Hello Henrik,

thanks for your hint.

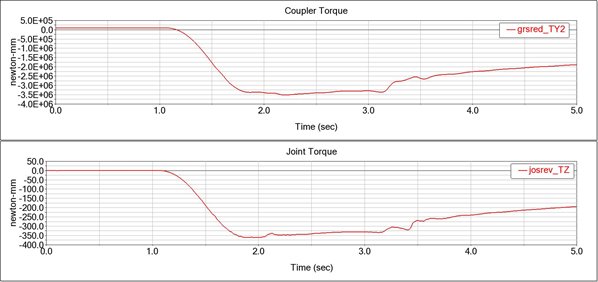

When I compare the the torque in the coupler and in the joint in the direction constrained by coupler then there is a big difference - factor 10 000.

This is not an option.

I have found a way to measure the torque on different place in model.

It would be nice to have function similar to JOINT() or MOTION() to measure the forces and torques in coupler.

Best regards,

Ondrej
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Henrik.Skovbjerg 10 months ago

Hi Ondrej,

Looking in the SimCompanion knowledge base, it is suggested to use a GCON instead of a COUPLER to easier include measuring of the transferred forces. This could be a direct way forward for you.

//Henrik
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 e-ondrej.petergac 10 months ago

Hi Henrik,

thanks for the hint, but the coupler is used in ._epowertrain_gse.tpl template from shared_hybrid_database.cdb and I will not touch the running system.
