Hello, I am looking for a way to enter the solar radiation Data for a specific location and time into the settings. Does anyone know a solution?

zohir.younsi
Hello, I am looking for a way to enter the solar radiation Data for a specific location and time into the settings. Does anyone know a solution?
  • 0

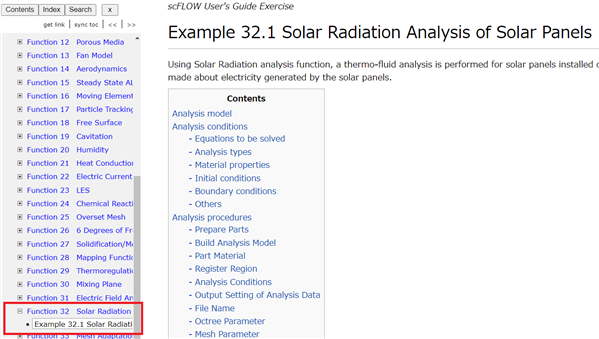

    What about Exercise exA32-1 for scFLOW for your reference.
    You can find it in scFLOW User's Guide Exercise.
    scFLOW_Function32
    You can find its data too  in /Cradle/scFLOW2021/Samples/Exercise/exA32/exA32-1
    If you haven't installed Samples,
    CradleCFD_2021.1_scFLOW_Example.zip can be downloaded from SDC(Solution Download Center).

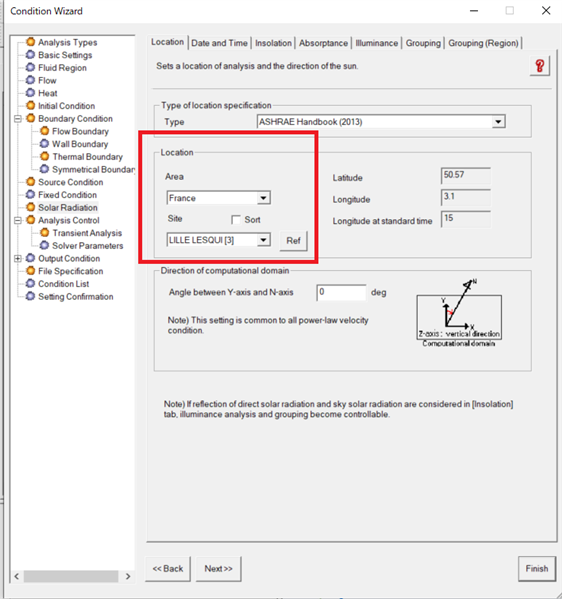

    You can change the area and location in exA32-1 to France and Lille like the following .
    scFLOW_change_location
    ​

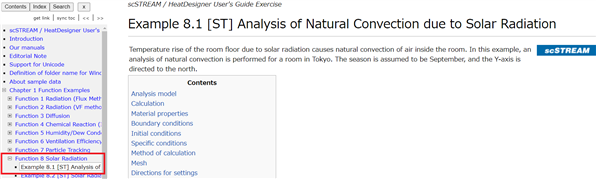

    What about Exercise exA08-1 for scSTREAM　for your reference.
    You can find it in scSTREAM/HeatDesigner User's Guide Exercise.

    scSTRAM_function8
    You can find its data too in /Cradle/Stwin2021/Samples/Exercise_e/Function/exA08-1
    If you haven't installed Samples,
    CradleCFD_2021.1_ST_Example.zip can be downloaded from SDC(Solution Download Center).

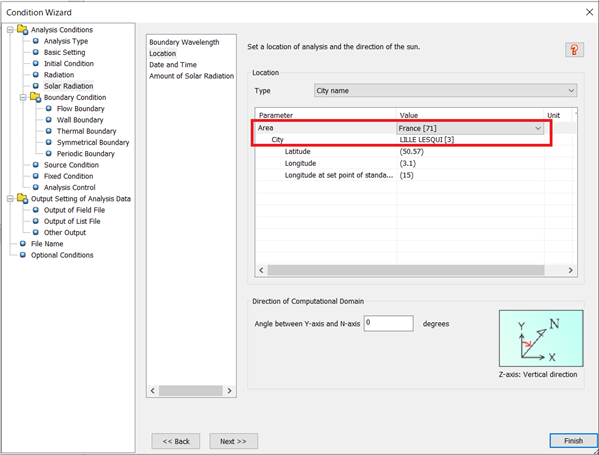

    You can change the area and location in exA08-1 to France and Lille like the following .

    scSTREAM_change_location
