How to fix nodes in current position in the following load case?

I have a static model that at the first load case, I applied a force to a body and it moved. In the next load case, I want to fix that body( nodes in that body) so they keep the same position as they are at the end of first load case. How to do it ? Thank you!

0 Kiranraj Shetty over 6 years ago

Dear Tuan Nguyen,

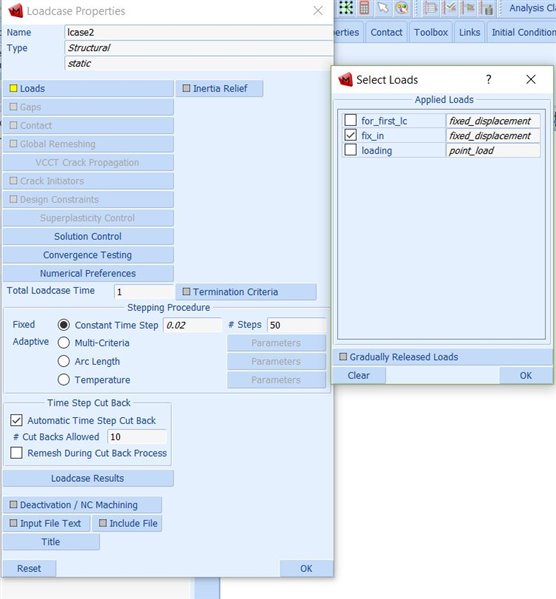

You need to define the fixed constraints BC, and uncheck it in first loadcase loads . Activate these fixed constraints in second loadcase only. Thus fixed constraints are applied to the deformed shape obtained at the end of first loadcase.

Regards,

Kiran

Kiranraj Shetty

MSC Tech Support
