pre state error

Tuan Nguyen over 6 years ago

I met this error when trying to using "pre state" option. I can't find down what is its reason. Pls help

in the output file:

process pre-state initial condition...

error -- filename not defined for unit: 10

0 Kiranraj Shetty over 6 years ago

Dear Tuan Nguyen,

While launching the pre state run, Did you specify the t16 file name to read pre state data ?

The command will be like below,

run_marc -j run2.dat -pid run1

Where, run1 was the jobname for first run, and run2 job will use run1.t16 results as pre state condition.

Regards,

Kiran

Kiranraj Shetty

MSC Tech SSupport
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Tuan Nguyen over 6 years ago

Dear @kiranraj shetty

My pre state command file is as: "c:\MSC.Software\Marc\2018.1.0\marc2018.1\tools\run_marc.bat -j model2_job1 -pid model1_job1 -b yes -v no"

The first job is : "c:\MSC.Software\Marc\2018.1.0\marc2018.1\tools\run_marc.bat -j model1_job1 -nps 4 -nts 8 -prog sub"

Then export stress and strain :

post

     2    16    17     0     0    19    20     0     1     0    12     0     0     0     0     0

    311     0

    301     0

Is there something wrong ?

Thanks!
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

Dear Tuan Nguyen,

Command looks good. I noticed you are using DDM for the first run with -nps 4. Have you used multiple post files ( default option), or single post file for this run ?

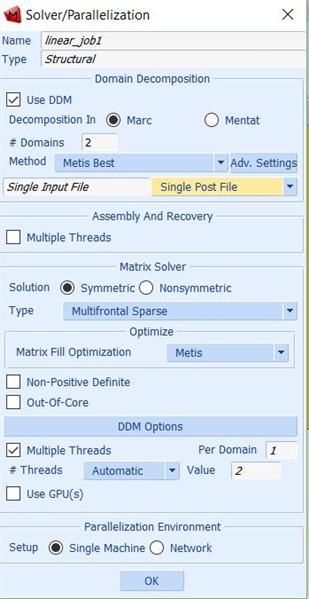

Please use single post file option as shown in the attached image, to use the t16 in next pre state run.

Regards,

Kiran
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Tuan Nguyen over 6 years ago

even if I don't use ddm and sub, still the error. I could attach here a simple model, pls check it.

Attached Files (1)

Marc.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

Dear Tuan Nguyen,

I believe the issue is related to post file version. Have you used Patran to create the deck ? I see post file version set to 12.

I have attached the modified deck with modified post & pre state cards, in the prestate file the previous t16 file is considered now.

Regards,

Kiran

Attached Files (1)

modified.zip
