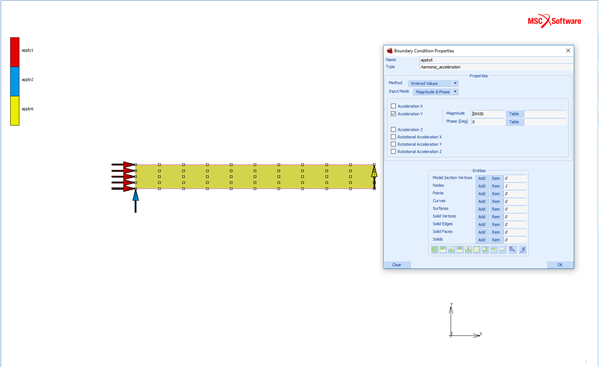

cantilever beam (user guide e074 model) harmonic responce. when i enter bc as fixed harmonic acceleration i cant see stresses distribution in postprocesing frequency.

cagri.kirt over 6 years ago

0 Kiranraj Shetty over 6 years ago

Dear cagri kirt,

You need to request Harmonic stress output as shown in attached image.

Regards,

Kiranraj Shetty

MSC Tech Support

Attached Files (1)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 cagri.kirt over 6 years ago

I did it but still wont show
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

Share the mud file
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 cagri.kirt over 6 years ago

Attached Files (1)

Cantilever_beam.mud.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

Check the attached files.

Attached Files (1)

Cantilever_beam.mud.zip
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

Attached Files (1)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 cagri.kirt over 6 years ago

Thanks for your help. Btw where can i find information about equi. of real and image stress? I am not familiar with that. what they want is von mises
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

The "Equivalent Real Harmonic Stress" and "Equivalent of Real Harmonic Stress" both are computed from components of "Real Comp of Harmonic Stress".

You will notice these two output i.e "equivalent" and "equivalent of " is available for result type such as stress , strain etc..

The difference is explained in below article,

https://simcompanion.mscsoftware.com/infocenter/index?page=content&id=KB8018351&actp=search&viewlocale=en_US&searchid=1539065484172
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 cagri.kirt over 6 years ago

I read the article but still i dont follow the connection between equivalent real harmonic stress and equivalent image harmonic stress diffrence. what u mean is real harmonic stress come from integration calculation and image harmonic stress comes from extrapolation.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Kiranraj Shetty over 6 years ago

No. The article talks about difference between "equivalent of " and "equivalent " results for example, equivalent stress and equivalent of stress.

Real and Imaginary components are available if you invoke damping.

Vol. A -Chapter 5 - Harmonic Response section has more details.
