Can I obtain the number of steps determined in a loadcase?

I would like to read the number of steps determined in each of the 3 loadcases determined in the simulation with my python code, using py_post and reading it from .t16 file.

Is this possible?

I was thinking about global variable "Loadcase Percentage Completion"... however I am not very sure to understand the meaning of this variable.

Thank you very much!

0 Kiranraj Shetty over 5 years ago

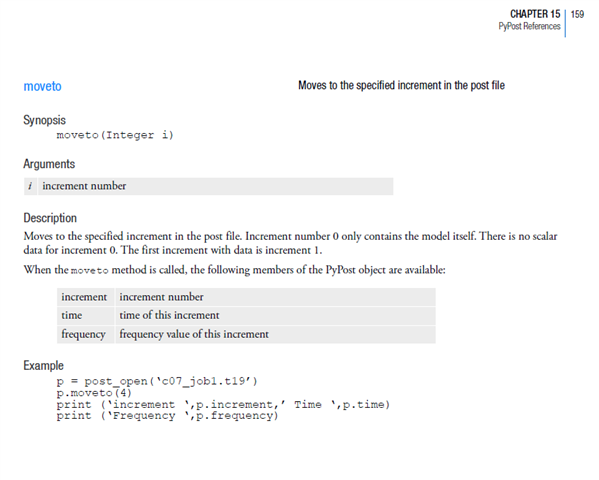

Check if this helps,

Regards,

Kiranraj Shetty

Attached Files (1)
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 aurea.inurritegui over 5 years ago

Thanks!

But if I am not wrong this command returns the whole available number of increments.

Giving an example:

If I have job1, which consists of lcase1 (20 steps) and lcase2 (50 steps). Increments will give me the total of 70 increments.

However, what I would like to access is the 20 increments of lcase1 ad the 50 increments of lcase2.

Regards,
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 vcubria over 4 years ago

I dont think there is a direct way using the py_post module. However, depending on your type of analysis, you could find a work around using the avaliable time data for each increment. In case that your Loadcase Time is known you can pass it as an input for the script, so you could get the number of increments of each loadcase based on the Time of each increment.

However, it is a very limited method as it requires to introduce manually the number of loadcases and the loadcase time for each one.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 aurea.inurritegui over 4 years ago

Thank you! I figured out something like that in abscence of nothing more automatic :/

For the moment it is useful!
