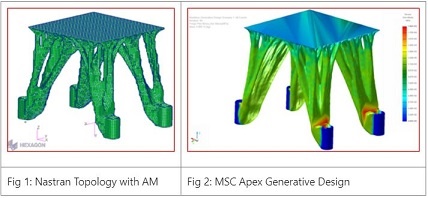

Description: Following two options for Topology optimization with focus on additive manufacturing are addressed. A demo model using MSC Nastran Topology for AM alongside Apex Generative Design is demonstrated.
- MSC Apex Generative Design
In MSC Apex GD the meshless Workflow involves definition of constraints and goals with minimal inputs. Further the smoothing and retransition and verification is done by the software to give us the final optimized part based on the settings. Faceted Solid is output as the final optimized geometry.
- MSC Nastran Topology Optimization with AM constraints
Nastran V2020 has features specific to AM in the TOPVAR Entry. The AM constraints will be explored, and overhang feature will be highlighted.
Below topics to be discussed for a complete overview of the process.
- Introduction to MSC Apex Generative Design
- Usage of MSC Apex Generative Design
- Introduction to Topology Optimization with MSC Nastran using Additive Manufacturing Constraints
- Usage and Examples of the MSC Nastran Topology with AM and MSC Apex Generative Design
- Results Discussion
