Polar array of a mesh

giordano.bruno over 7 years ago

Good morning,

I wanted to know if there is the possibility to make a circular copy of a mesh around an axes.

Thank you

0 Darrel Sinclair over 7 years ago

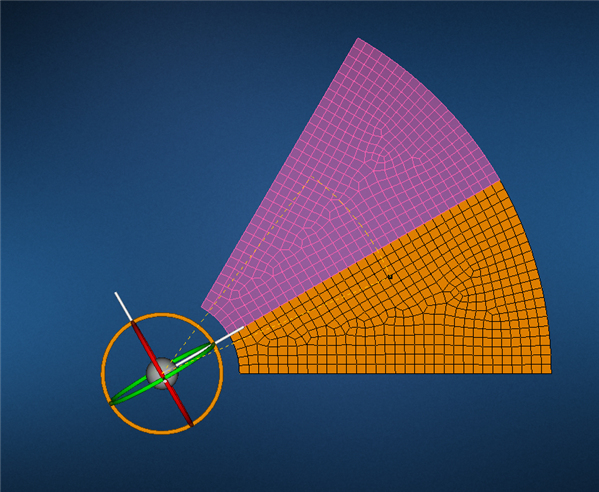

Yes, you can do this using the transform tool in its rotation mode:

To access the rotation mode, press R when you have the transform tool active. Press T to return to translate mode. See also the tutorial video on the Transform tool.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 giordano.bruno over 7 years ago

Thank you. Is there a way to specify the number of copies with a corresponding angle?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Darrel Sinclair over 7 years ago

Not directly. Currently the only way to do that is via a script.
