I think I may have found a bug when exporting flexible connectors to .bdf (Version - Harris Hawk SP1)

I exported a simple model of two plate with holes, that were connected by a remote location flexible connector. The exported BDF gave the CBAR element and the first RBE the same PID. This prevents the RBE from being imported to Patran without manually changing one of the PID's. Is there a workaround for this or have I done something wrong?

0 Darrel Sinclair over 6 years ago

This isn't strictly a bug, since this is OK for Nastran. Patran doesn't like it by default, as you've found. However you can set an environment variable that will enable you to import the bdf without making changes. The environment variable name is NIFIMP_SAMEIDOK_MPC_ELEM - set this to YES.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 rhys.parsons over 6 years ago

Hi Darrel, thanks for the info, which file should I be modifying to paste in the above variable? Thanks, Rhys
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 Darrel Sinclair over 6 years ago
There are two ways you can set it:

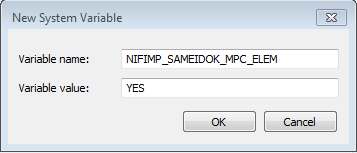

As a Windows environment variable. Go to Control Panel / System / Advanced System Settings / Environment Variables. Create a new one.

2. Or edit the file site_setup.pm in your Patran installation and add the following line to it:

setEnv('NIFIMP_SAMEIDOK_MPC_ELEM', 'YES');
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel
0 rhys.parsons over 6 years ago

Perfect, that worked. Thank you very much.
